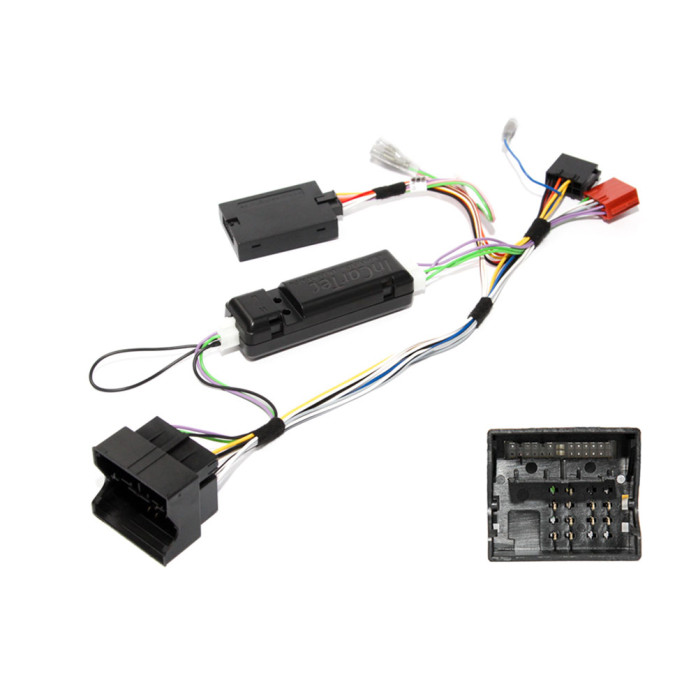

Steering wheel control interface and adapter cable for Audi cars with Quadlock connectors. Adaptor cable to fit a new radio to the original connectors in the car with a built in interface to retain the use of the original radio steering wheel controls when fitting an aftermarket stereo upgrade.
The interface also provides a key present ignition supply, reverse gear, handbrake and speed pulse outputs and retains the use of the amplified speakers.

This cable adapts from the original connector in the car, known as a quadlock, to standard aftermarket connectors for the new stereo, known as ISO connectors. The CANbus steering wheel control interface will retain the use of the original radio controls on the steering wheel with an aftermarket stereo. The CANbus interface generates a key present ignition supply to the new stereo, this means the stereo will turn on with the first click of the key and stay on until the key is removed from the ignition barrel. The interface also generates speed pulse, reverse gear and handbrake output signals, these are used when installing multimedia, navigation units and reverse cameras. This interface is built into the Quadlock to ISO harness adapter so installation is plug and play.

The plug and play Quadlock to ISO cable also has a built in high to low level adapter for the rear amplified speakers.  The adapter allows the new stereo to work with the original amplifier which drives all the speakers in the car and the subwoofer. The high to low level adapter gives a much cleaner audio signal to the amplifier compared to using line output phono leads.

What's Included

• 49-AUD-02 Steering Control Adaptor
• Stereo Patch Lead

Works with the following brands

• Alpine
• Clarion
• JVC
• Kenwood
• Pioneer
• Sony

FOR CHINA UNITS YOU WILL NEED 49-000

PATCH LEAD INCLUDED FOR MOST BRANDED RADIOS

CHINA UNBRANDED RADIO MAY REQUIRE ADDITIONAL PATCH LEAD AT ADDITIONAL COST

TECHNICAL NOTE:

• CAR AUDIO FITTING ACCESSORIES ARE SOLD WITH LIMITED INSTRUCTIONS.
• SOME KNOWLEDGE OF CAR AUDIO INSTALLATION IS HELPUL IN CASE A MODIFICATION IN SOME RARE CASES MAY BE NECESSARY OR NEEDED.

IMPORTANT NOTE

• China Branded Headunit, please make sure your unit has 3 wires for connecting the patch lead to the car stereo that you are installing.

• Please make sure that is the correct Steering Control Adaptor for your vehicles by firstly checking to see if your make, model and year of car is listed in the advert. Secondly by checking to see if the connection in the picture is the same as you have in your vehicle. If the connection in the car is different from what you see in the picture then this adaptor is NOT suitable.

We try to provide upto date information. If you are unsure about the model number please feel free to contact our customer service and we will be happy to help you selecting correct stalk adaptor for your car.
