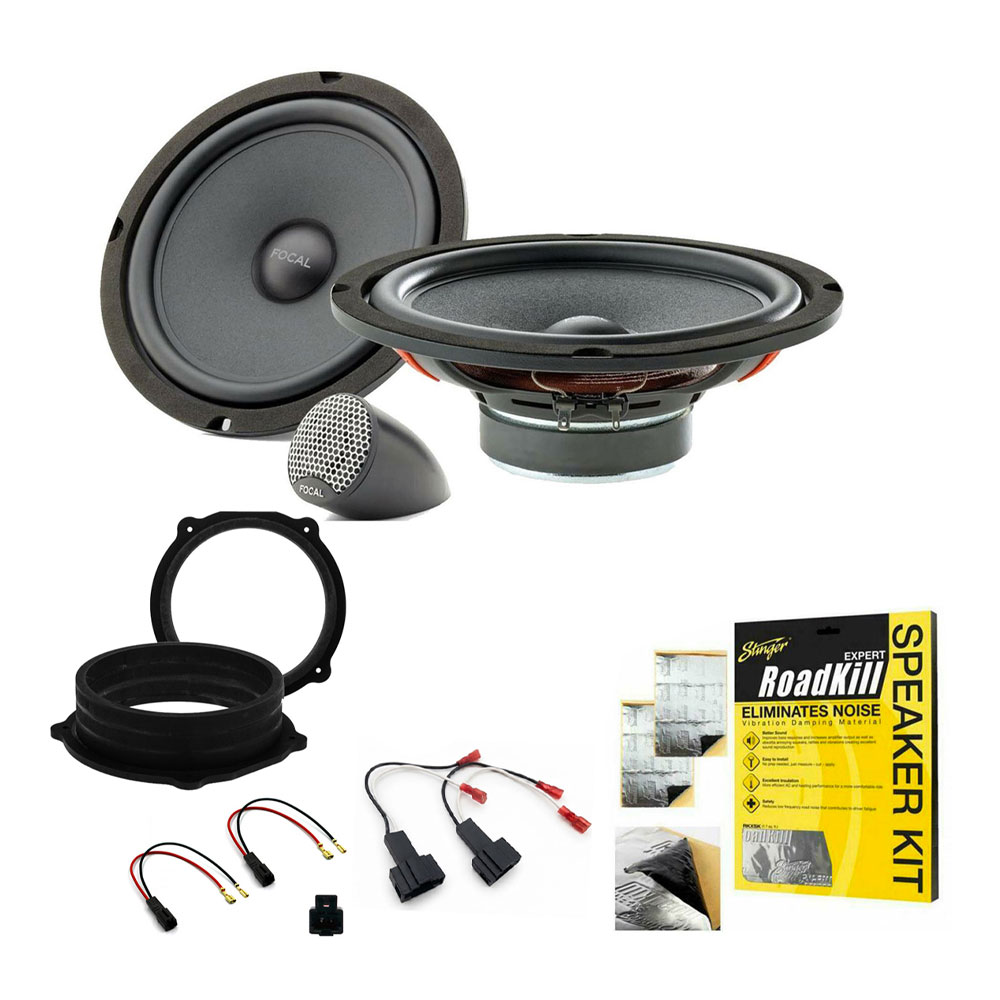

Package Included

• FOCAL ISU200 8" 20cm 320 Watts 2 Way Component Kit Car Van Door Speakers
• 200mm Front Door Speaker Adaptor
• Speaker & Tweeter Adaptor Plugs
• Speaker Adaptor Plugs
• Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit

The tweeters / wiring included will require adapting to fit the top dash.The wiring supplied will fit the vehicle plug side, but the Positive and Negative connections will require manual connection to the wiring on the tweeter Positive and Negative. The door speaker will be a direct connection with no mods.

2-Way Separate Woofer Kit: 200 MM

This ISU200 2-way separate kit is the result of research into the constraints associated with using original-fit locations. Truly compact, powerful and "fits-anywhere", the ISU130 makes it possible to improve on audio systems without major technical modifications to your vehicle interior. Its very compact form, achieved by reducing its housing depth, and its built-in filters mean that this kit is easy to fit and connect to your original-fit head unit.

The new generation Universal comes with its innovations and new features, including a new inverted aluminium/magnesium tweeter for even more detailed trebles. A new chassis has also been designed for optimal integration and a more elegant design. And all this is with just one objective: to offer easy-fit products that conserve excellent sound.

Shallow fitting: 63,5 mm.

Natural, Uncoloured Sound

The Integration range is synonymous not only with ease of installation but also and most especially, with sound quality. At Focal we pride ourselves in supplying equipment of impeccable quality: for example, a polyglass membrane for natural, uncoloured sound and an inverted dome aluminium/magnesium tweeter for clear, detailed reproduction.

What Makes It Special

• High sensitivity
• No-fuss treble adjustment
• Shallow fitting
• Improves on original-fit speakers
• Dynamism and neutrality

Reliability A Top Priority

The Focal spirit also encompasses the reliability of our ever evolving technological equipment. Butyl suspension ensures that your speakers will stand the test of time. You will be able to enjoy the Focal sound for a long time, thanks to our high quality design: manufacturing processes and the choice of materials are always high priorities for our engineers, guaranteeing a result that exceeds your expectations.

Technical Characteristics

• Woofer: 8" (200mm)
• Voice coil diameter: 1" (25mm)
• Max. power: 160W
• Nom. power: 80W RMS
• Sensitivity (2.83V/1m): 93dB
• Frequency response: 40Hz-21kHz
• Al/Mg inverted dome tweeter
• Accessories: delivered without grilles
• Integrated crossover: 6dB/oct

Specifications

• Nominal power 80W RMS
• Maximum power 160W
• Sensitivity (2,83V/1m) 93dB
• Frequency response 40Hz-21kHz
• Cone type Polyglass
• Surround type Butyl
• Nom. impedance 4Ω
• VC diameter 25mm 1"
• Net weight 1.05kg 2.3lbs

Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit

• Expert level sound dampening
• Aluminum outer layer
• Self adhesive
• Easy installation
• Use on all metal panels, doors, roof, floor, firewall & trunk
• Kills panel resonance, squeaks and rattles
• Highest damping vs. weight ratio of any material available
• Improves overall audio frequency response and bass output
• Speaker kit

Expert RoadKill Published Specifications

• Minimum Thickness 0.080in
• Minimum Weight 0.65bs/ft2
• Aluminum Layer- 6 mils
