Ford Transit Custom Dual Lens Reversing and Driving Camera

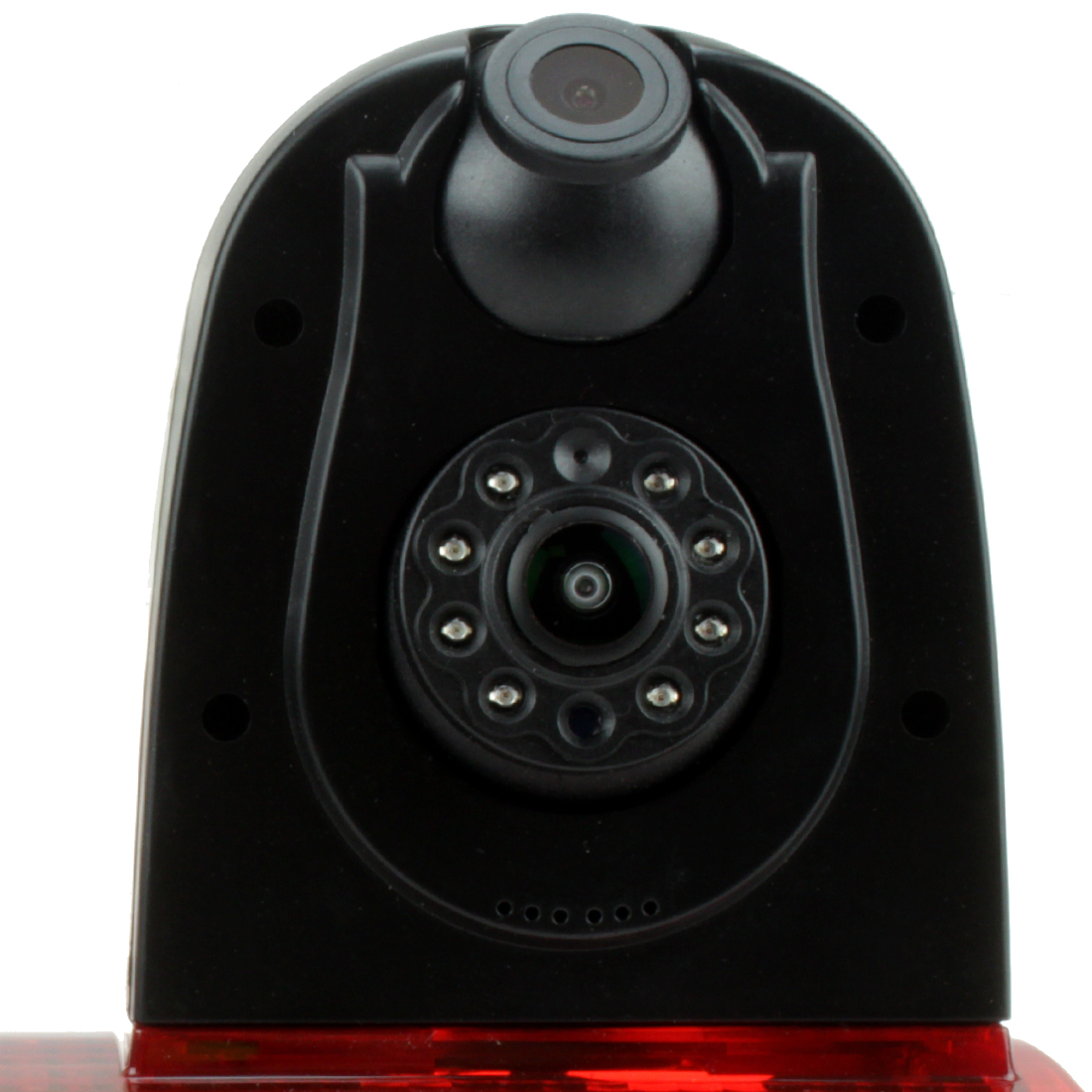

The CAM-FD13 is a dual-lens reversing and driving camera specially designed for the 2012-Onward Ford Transit-Custom. The camera features a special Livestream feature that gives the driver a live view of the rear of the vehicle when in motion. The system replaces the original vehicle’s rear brake light enhancing safety whilst retaining the vehicle’s original aesthetics. This rear brake light also features an in-built LED. Please note: this product is for vehicles which feature rear barn doors.

Product Specifications
Reversing Camera

• Resolution: 580 TV Lines
• Total Pixels: 648 x 488 pixels
• Lens size: 1.8mm
• Image Sensor: Colour 1/3” CMOS
• Night Vision Distance: 35ft
• Waterproof Rating: IP68
• Viewing Angle: Vertical: 80° Horizontal: 145° Diagonal: 175°
• Lens Adjust: 20° (Vertical movement only)
• Video Output: 1.0 Vp-p/75 Ohm
• Power Rating: 12V

Driving Camera

• Resolution: 580 TV Lines
• Total Pixels: 648 x 488 pixels
• Lens size: 3.6mm
• Image Sensor: Colour 1/3” CMOS
• Night Vision Distance: –
• Waterproof Rating: IP68
• Viewing Angle: Vertical: 55° Horizontal: 80° Diagonal: 110°
• Lens Adjust: 30° (Vertical movement only)
• Video Output: 1.0 Vp-p/75 Ohm
• Power Rating: 12V

2x CAM-RCA1 needed for installation. Sold separately.
