Hyundai Replacement Kit, allows the fitment of a Single / Double DIN aftermarket headunit to the selected vehicle. This kit includes Fascia, Steering Wheel Interface, and aerial adaptor.

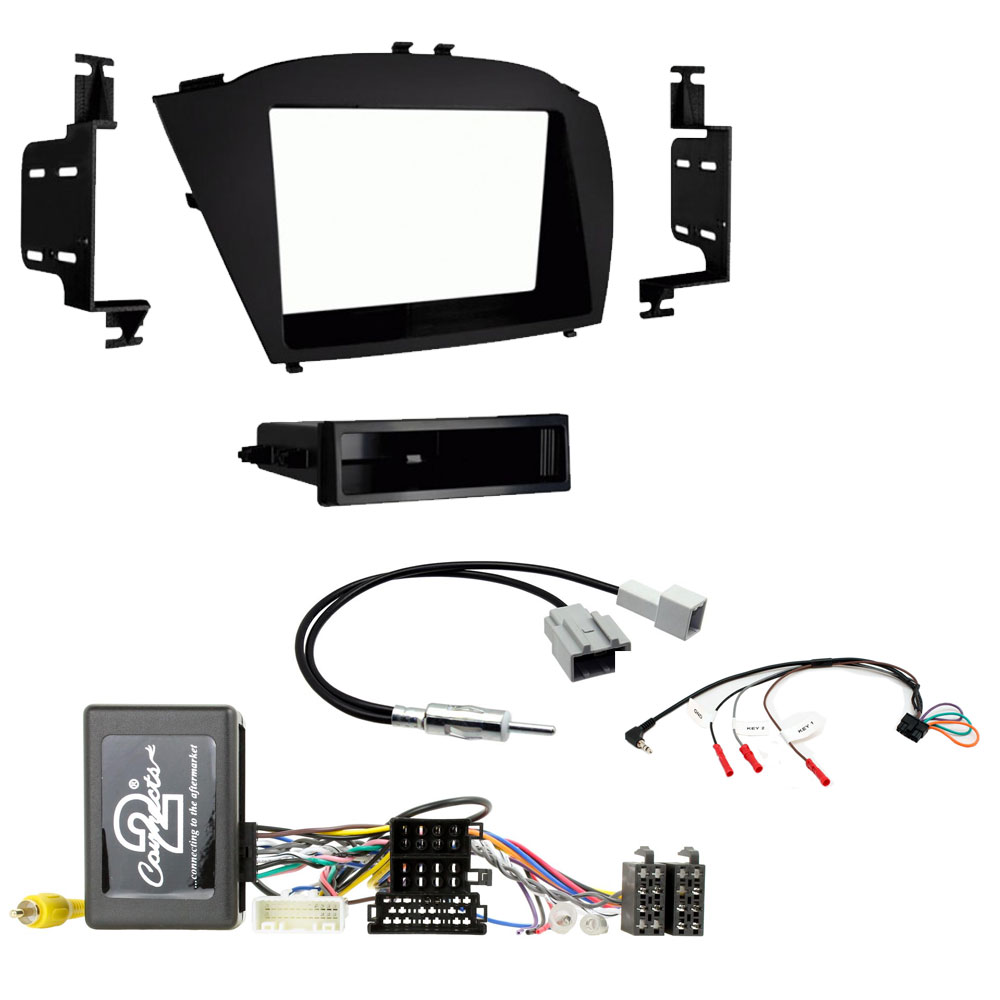

Package Includes

• Single / Double Din Fascia Adaptor (Matt Black)
• Steering Wheel Interface Adaptor
• Aerial Adaptor
• Stereo Patch Lead (Free CTMULTILEAD.2 Included)

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Complete replacement car audio fascia to enable you to change the original radio in the car to a Single DIN or Double DIN aftermarket version This fascia comes with side fixing brackets so no additional fitting cage is required. A removable pocket is supplied for Single DIN installations.

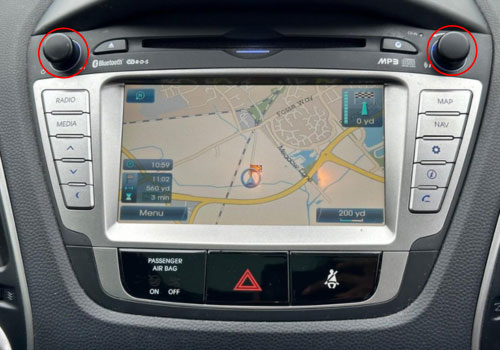

Fits Hyundai IX35 with navigation or 4.3" touch screen

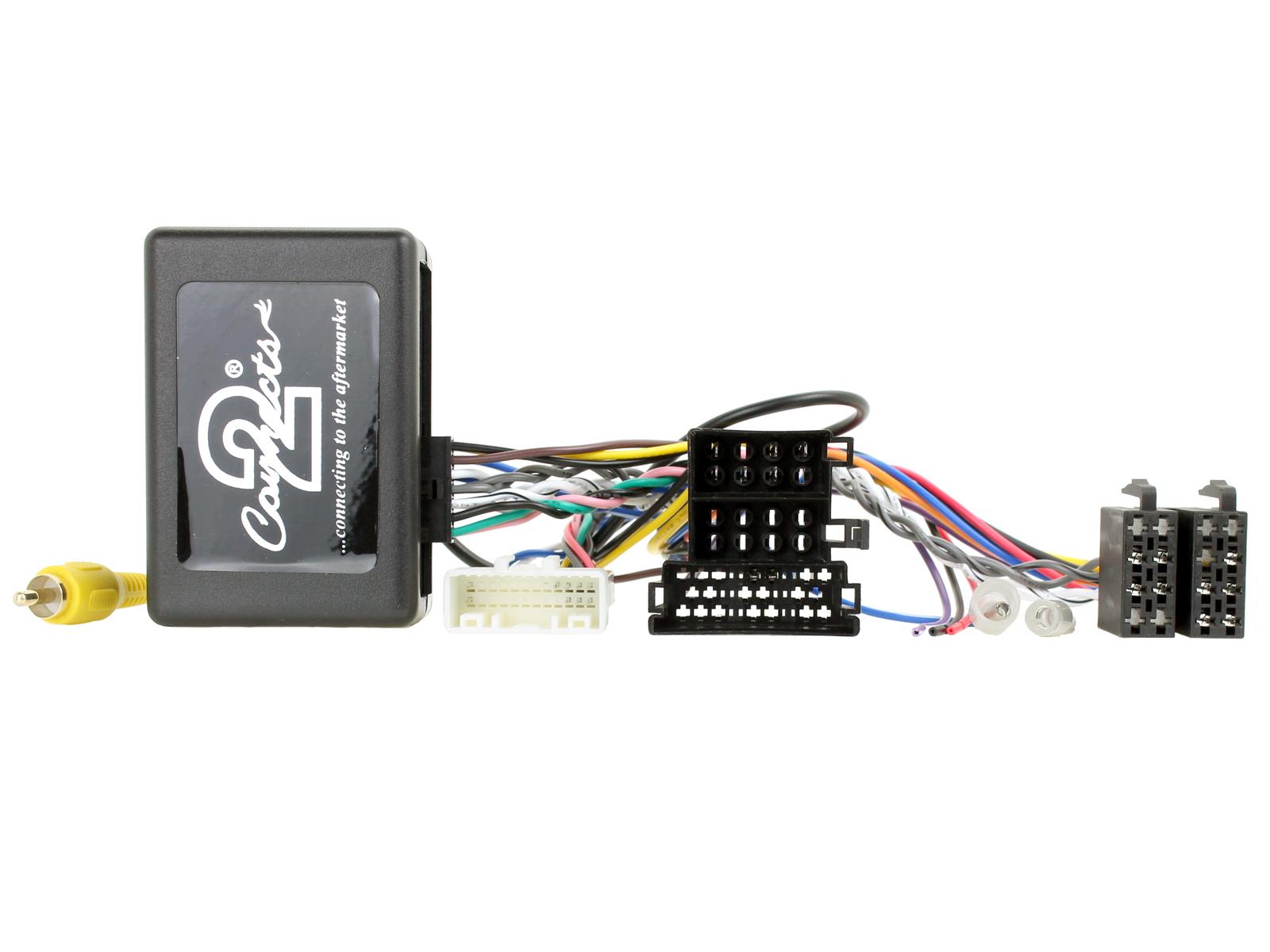

Steering Wheel Interface

A stalk/steering wheel control adaptor allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls or fitted on a stalk next to the steering wheel.

Features & Benefits

• Allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls
• Safety: Allows you to keep your hands on the steering wheel and eyes on the road.
• Maintains the original features of the vehicle such as date, time and temperature display
• Choose the relevant head unit connection lead according to the make of aftermarket head unit you wish to fit
• For interfaces where phone buttons are supported, the following brands allow pick up/hang up in Bluetooth mode: Alpine, Clarion, Kenwood, Pioneer and Zenec. Please see
• icon list below to see if this interface supports phone buttons.
• Please check the connections in the vehicle match the harness you are purchasing

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

CTMULTILEAD.2 Universal Patch Lead

Patch Lead connects a compatible car stereo with a joystick input (blue line-in mini-jack) or wire input on the back of the unit to the existing stalk/steering wheel controls of the vehicle.

Compatible aftermarket headunits:

• Alpine (3.5mm jack)
• Beat (single wire connection)
• Chinese / Xtrons / 3 wire unbranded units (3 wire connection)
• Clarion (3.5mm jack)
• JVC (3.5mm or single wire)
• Kenwood (single wire)
• LG (3.5mm jack)
• Nakamichi (single wire connection)
• Panasonic  (single wire but NOT AV units)
• Philips (single wire connection)
• Pioneer (3.5mm jack)
• Sony (3.5mm jack)
• Zenec  (single wire)
• EONON
• JOYING
• XTRONS
• PUMPKIN
• Other Chinese SWC learning head units

Important Patch lead:

• You can simply cut the loops / wires to select which brand you are fitting.
• Supplied with instruction sheet
• China Branded Headunit, please make sure your unit has 3 wires for connecting the patch lead to the car stereo that you are installing.

Important Fascia:

• The fascias are made to suit industry standard sized stereos such as Alpine, JVC, Kenwood, Pioneer, Sony etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.

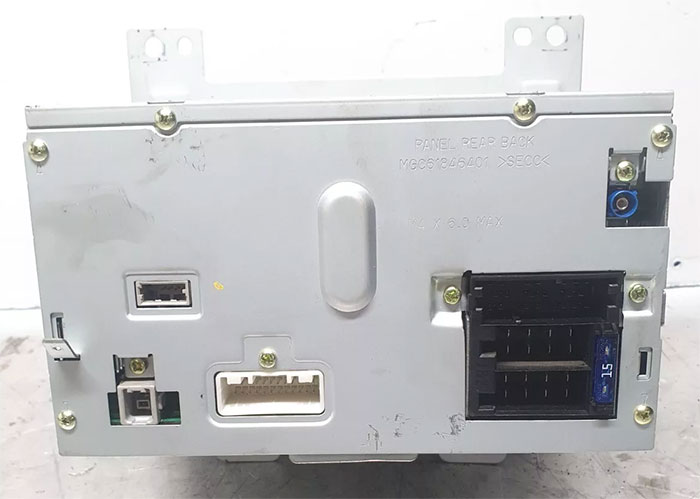

Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
