RECOIL 6 Pack Relay kit (5-pin 30/40A 12V SPDT relays with sockets and in-line ATC fuse holders)

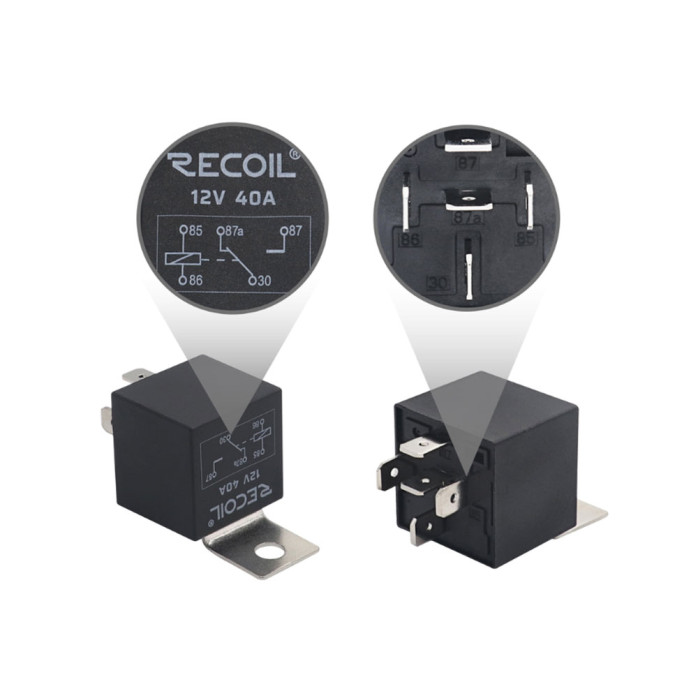

Bosch style 12VDC (14V Max) 5-Pin SPDT (Single Pole Double Throw) relay with 40A/30A high switching capability.

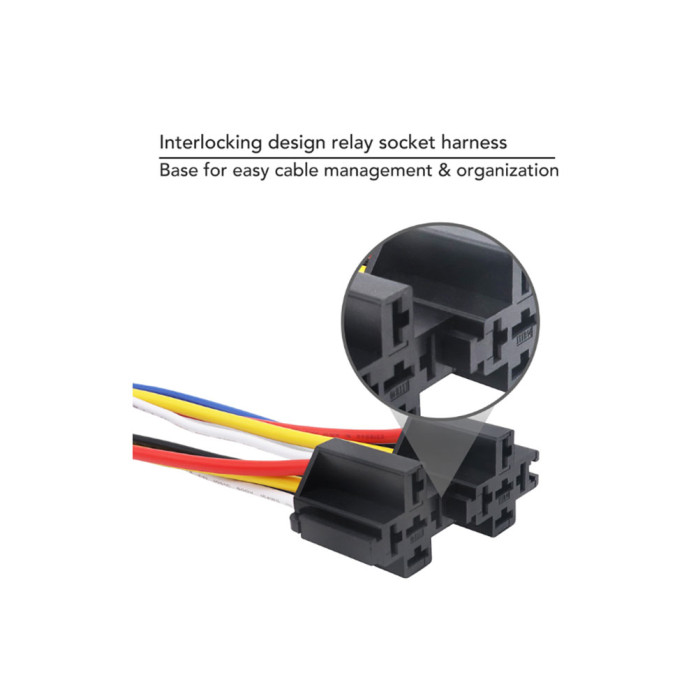

Interlocking design relay socket harness base for easy cable management & organization.

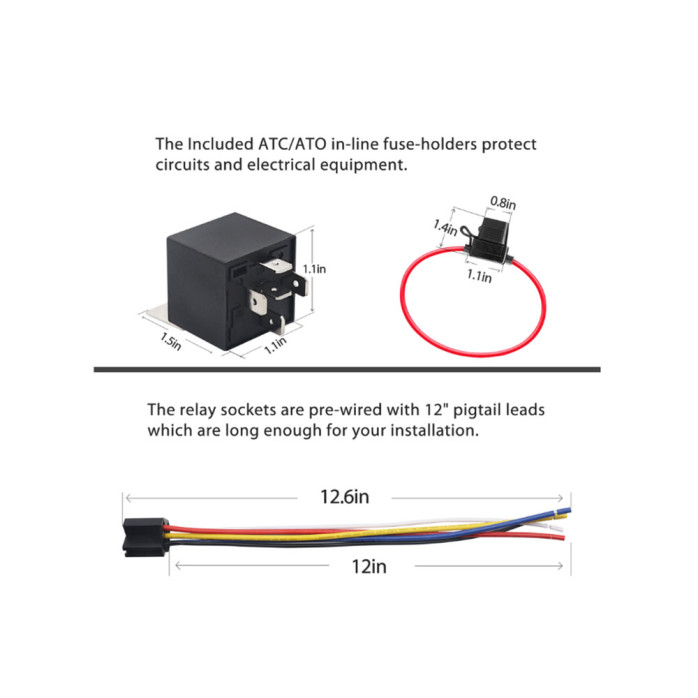

The relay sockets are pre-wired with 12″ pigtail leads, which are long enough for your installation

Wire Specifications

• Black – Ground (85)
• Red – VDC (30)
• White – Trigger (86)
• Yellow – Output N/C (87a)
• Blue – Output N/O (87)

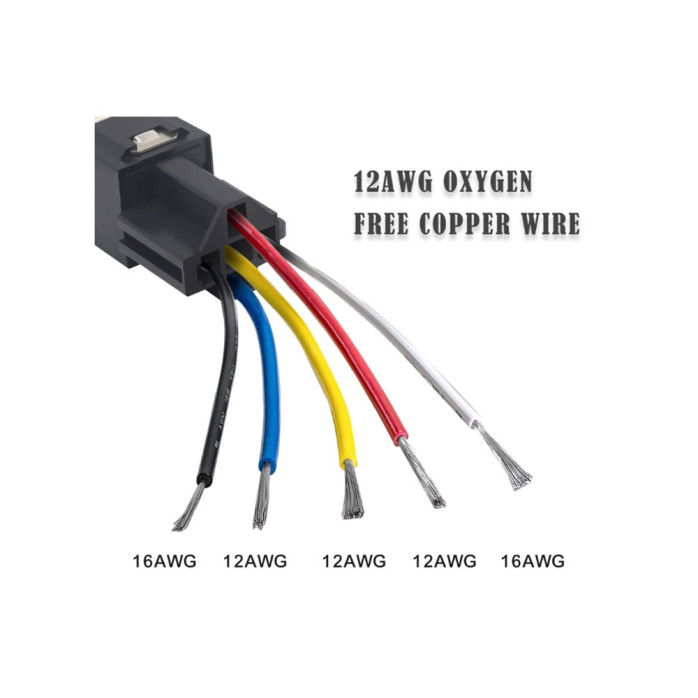

Relay harnesses are made of 12AWG pure Oxygen Free Copper as a conductor to ensure its excellent electrical conductivity. The Included ATC/ATO in-line fuse-holders protect circuits and electrical equipment

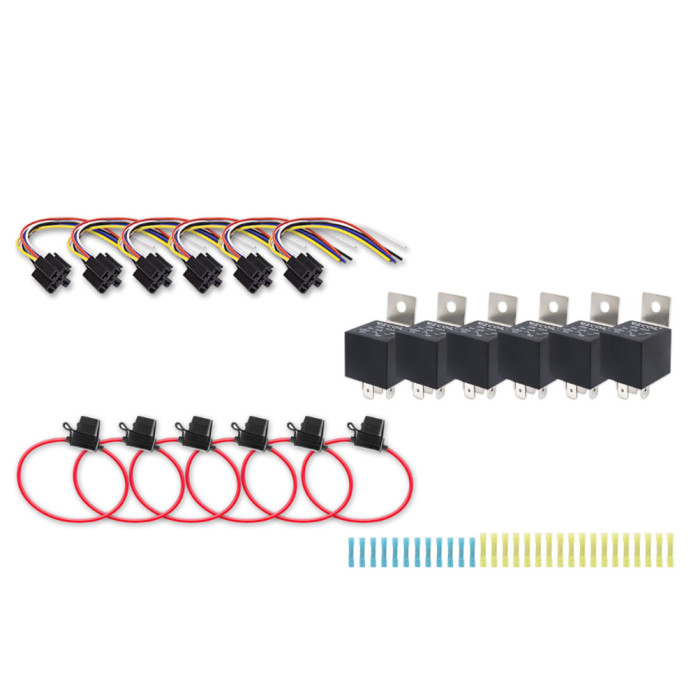

Relay Kit Includes

• 6 x relays
• 6 x relay sockets with wires
• 6 x in-line ATC fuse holders
