InCarTec 20-156-IGN VW Quadlock to ISO Radio Adaptor Harness, with CANBus Ignition
- Stock Status: In Stock
- Item Condition : New
- Available QTY : 9
- Brand: InCarTec
- Model: 20-156-IGN
- EAN: 7427282686396
- Warranty: 2 Year Warranty
Description
Product Compatibility Chart
Make | Model | Years | Notes |
Volkswagen | Amarok | 2009 - 2017 | |
Volkswagen | Beetle | 2011 - 2019 | (A5) |
Volkswagen | Caddy | 2004 - 2009 | (3rd Gen Pre-Facelift) |
Volkswagen | Caddy | 2010 - 2016 | (3rd Gen Facelift 1.0) |
Volkswagen | Eos | 2006 - 2015 | |
Volkswagen | Fox | 2006 - 2011 | |
Volkswagen | Golf | 2004 - 2008 | Mk5 (1K) |
Volkswagen | Golf | 2009 - 2012 | Mk6 (5K) |
Volkswagen | Jetta | 2006 - 2010 | V |
Volkswagen | Jetta | 2010 - 2018 | VI |
Volkswagen | Passat | 2005 - 2010 | B6 |
Volkswagen | Passat | 2008 - 2017 | CC |
Volkswagen | Passat | 2010 - 2015 | B7 |
Volkswagen | Polo | 2005 - 2009 | Mk IV facelift |
Volkswagen | Polo | 2009 - 2014 | Mk V |
Volkswagen | Scirocco | 2008 onward | |
Volkswagen | Sharan | 2010 onward | II |
Volkswagen | Tiguan | 2008 - 2016 | |
Volkswagen | Touareg | 2003 - 2009 | I |
Volkswagen | Touareg | 2010 - 2018 | II |
Volkswagen | Touran | 2003 - 2010 | I |
Volkswagen | Touran | 2010 - 2015 | I facelift |
Volkswagen | Transporter | 2003 - 2009 | T5 |
Volkswagen | Transporter | 2009 - 2015 | T5 Facelift |
Volkswagen | UP! | 2012 onward |
ISO adapter harness for Volkswagen group vehicles with quadlock connectors at the back of the radio.
This adapter harness is designed to adapt from the original quadlock style connector in the dashboard to a standard aftermarket ISO connector to allow the fitting of a new radio.
This lead has a built in CANbus interface which provides a key present ignition power supply. A key present ignition supply will generate an ignition feed to turn the head unit on with the first position of the key, the interface will continue to give an ignition feed to the radio when the key is turned back to the off position, the ignition feed stops only when the key is then removed from the ignition barrel.
Plug and play installation.

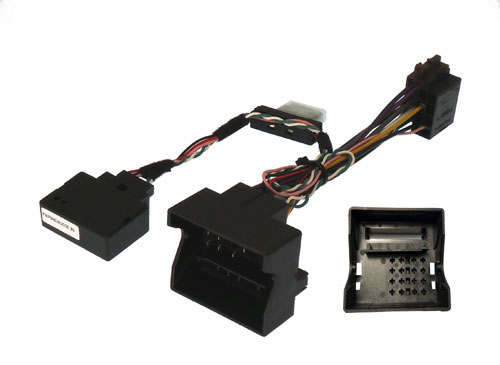

The image below shows the adapter harness and the quadlock connector.
The image below shows the adapter harness and the quadlock connector.
Harness Adaptors
Connect the head unit to the original radio connector without the need to cut any of the existing wiring.
TECHNICAL NOTE
- CAR AUDIO FITTING ACCESSORIES ARE SOLD WITH LIMITED INSTRUCTIONS.
- SOME KNOWLEDGE OF CAR AUDIO INSTALLATION IS HELPFUL IN CASE A MODIFICATION IN SOME RARE CASES MAY BE NECESSARY OR NEEDED.
If in doubt please email us with your vehicle details and we will confirm what you require.
Please make sure that is the correct Wiring Harness for your car by firstly checking to see if your make, model and year of car is listed in the description. Secondly by checking to see if the Shape in the picture listed is the same as you have in your vehicle. We try to provide upto date information as possible. If you are unsure please contact our Customer Service and we will be happy to help you.
