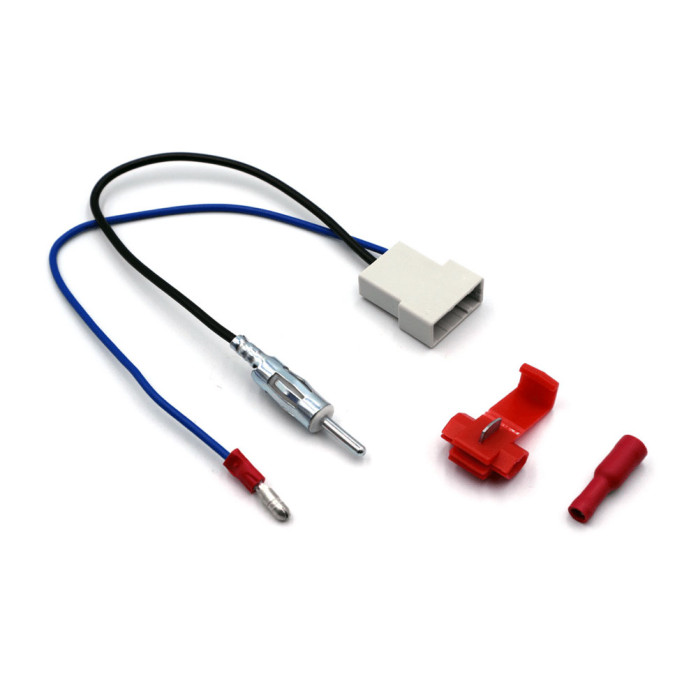

Nissan (grey rectangle female antenna to male DIN connection) car aerial antenna adapter cable.

This cable adapts from the grey plastic rectangle Nissan antenna connector in the car to a standard aftermarket male DIN connector, used when fitting a new aftermarket stereo.

The loose blue wire (male bullet) on the adapter needs to be connected to the antenna turn on output from the new radio, this turns on the original antenna amplifier in the car.

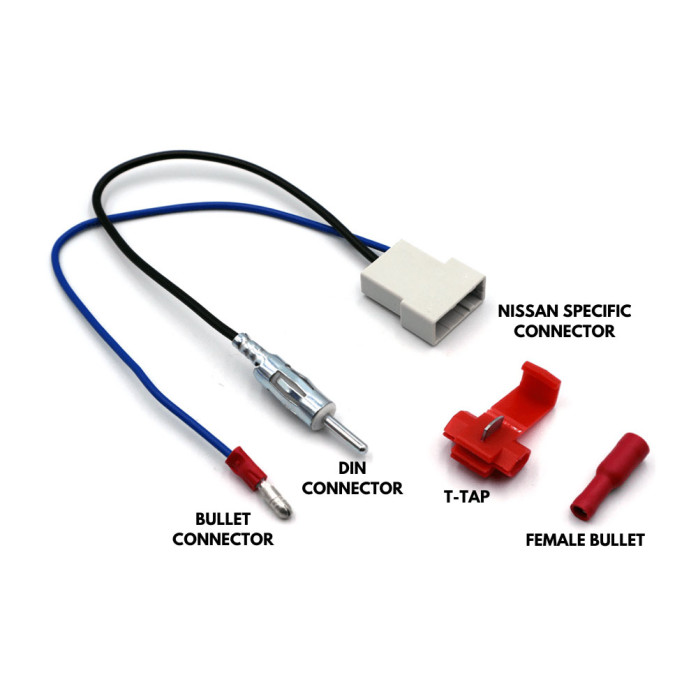

A male bullet connection, female bullet connection and a T-tap connector are all provided to help with the installation of this antenna adapter.

For antenna adapter with loose blue wire please use product 21-118

Connection options

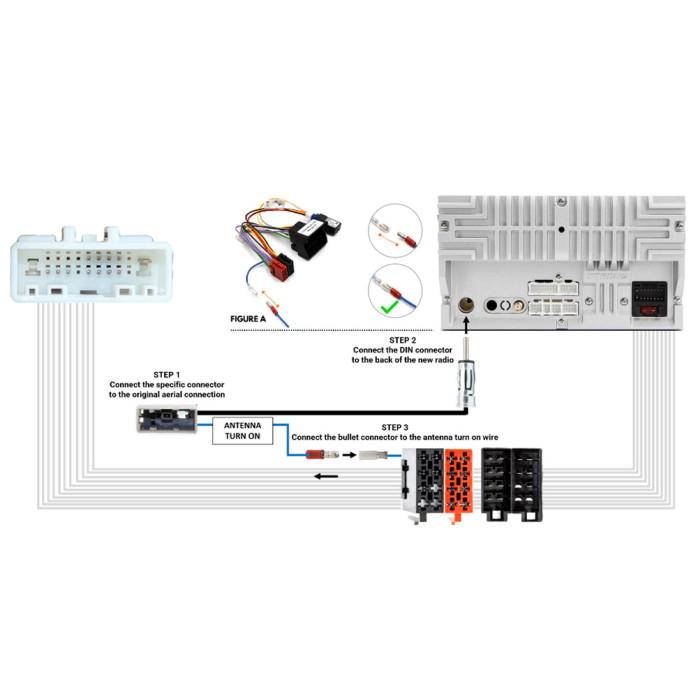

Option 1

This requires connecting the loose blue wire (male bullet connector) on the antenna adapter to the antenna turn-on wire (Female bullet connection) on our 29- Series steering wheel control interface.

• Connect the vehicle specific connector to the original AM/ FM antenna connection in the car.
• Connect the DIN aerial connection to the back of the after market radio.
• Connect the bullet connector (on the blue wire) to the blue antenna turn on wire on the 29-Series interface.

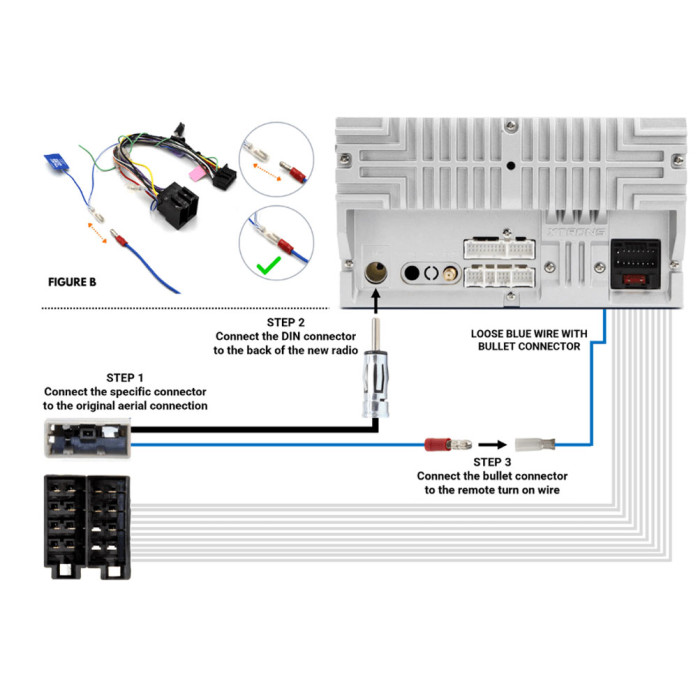

Option 2

This requires connecting the loose blue wire (male bullet connector) on the antenna adapter to the antenna turn-on wire (Female bullet connection) on the new aftermarket radio harness.

• Connect the vehicle specific connector to the original AM/ FM antenna connection in the car.
• Connect the DIN aerial connection to the back of the after market radio.
• Connect the bullet connector (on the blue wire) to the blue antenna turn on wire, or the blue/white remote turn on wire coming from the new aftermarket radio harness.

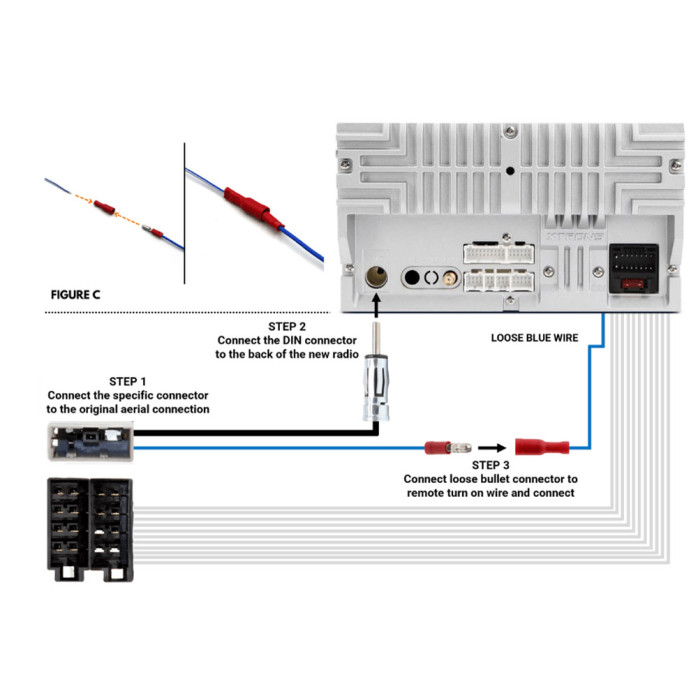

Option 3

If a loose antenna turn on wire is provided with the radio then strip a small amount of insulation off the antenna turn on wire and attach the provided female bullet connector to this.

• Connect the vehicle specific connector to the original AM/ FM antenna connection in the car.
• Connect the DIN aerial connection to the back of the after market radio.
• Strip some insulation from the loose antenna turn on wire and attach a female bullet connector (Included with this product)
• Connect the bullet connector (on the blue wire) to the blue antenna turn on wire, or the blue/white remote turn on wire coming from the new aftermarket radio harness.

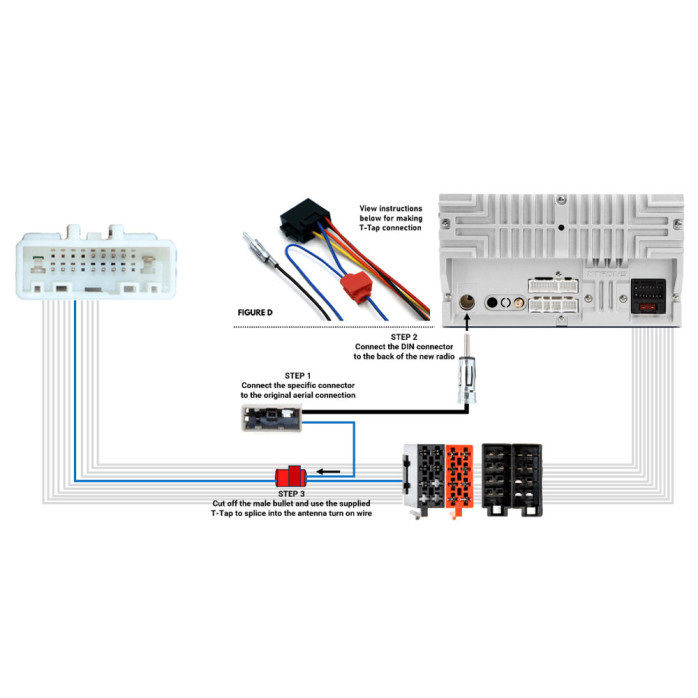

Option 4

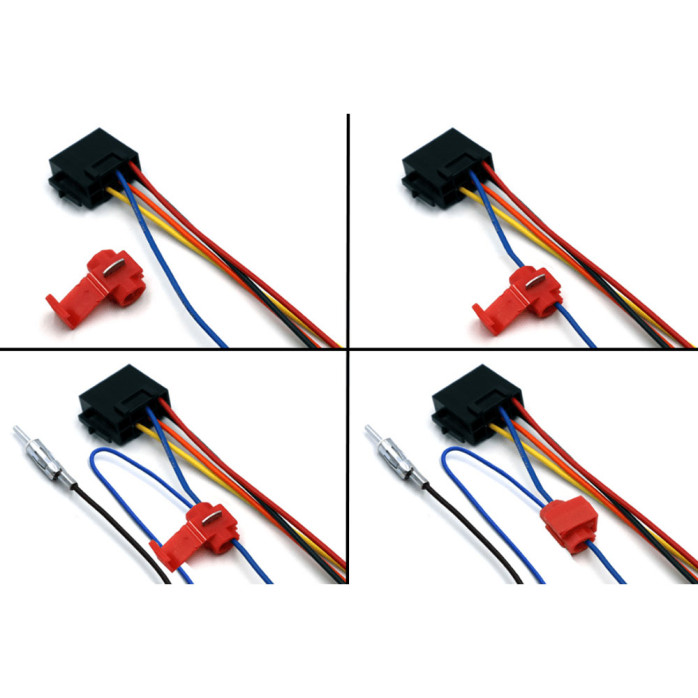

If there is no bullet or loose antenna turn on wire available then cut off the male bullet from the antenna adapter and use the supplied T-tap connector to splice into the antenna turn on wire.

• Connect the vehicle specific connector to the original AM/ FM antenna connection in the car.
• Connect the DIN aerial connection to the back of the after market radio.
• Strip some insulation from the loose antenna turn on wire and attach a female bullet connector (Included with this product)
• Connect the bullet connector (on the blue wire) to the blue antenna turn on wire, or the blue/white remote turn on wire coming from the new aftermarket radio harness.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit. Antenna Adaptors are available in both ISO and DIN versions. Antenna Aerial Adaptor, converts car specific antenna connector to a universal aftermarket connector.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.

Please make sure that is the correct Antenna Adaptor for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
