Dual Lens reverse view high level brake light camera and video monitor kit specially designed for Ford Transit Custom (2016 Onwards) vehicle models.

The camera included in this kit replaces the high level brake light at the rear of the vehicle and provides additional visual safety to the back of the vehicle, whilst maintaining its original appearance.

The dual-camera feature allows the driver to view the rear of the vehicle in real time as well as providing a camera feed to make reversing a more comfortable and stress-free experience.

This kit comes complete with a 7 inch 2-channel video monitor, great to use when installing an aftermarket reverse camera(s) without having to affect the original factory fitted system.

Only suitable for vehicles with OEM LED bulb

Please check that the image and dimensions of the camera matches the existing high level brake light on the vehicle.

For 2013-2015 models with standard bulbs use CVC-FOR-02AL LENS High level brake light camera (CVC-FOR-03-DUAL)

DUAL LENS High level brake light camera (CVC-FOR-03-DUAL)

2 x video camera feeds using 2 x 4 pin aviation connectors

You will need to use a Monitor with 2 x 4pin male pins aviation connectors. Or use item CVC-CB-09 cable  to convert to RCA phono connectors

If you are fitting to the cars original screen and are unsure of which version of SYNC you have then please see our guide to identifying SYNC and which camera interface to use.

This dual-lens camera features a 170 degree lens viewing angle, 1/3" CMOS image censor, 756 x 504 resolution and are waterproof rated at IP68 as standard.

This camera kit Includes a 10m 7-pin male to female  extension cable and 2 x 4-pin to 7-pin cable splitter

Whilst we do our best to make sure our product compatibility listings are as accurate as possible, there may still be exceptions. Please check that the image and dimensions of the camera matches the existing high level brake light on the vehicle.

Specifications

• Image sensors: 1/3 color HD CMOS/CCD
• System: NTSC/PAL (TV system)
• Min illumination:0Lux (LED ON)
• Perfect IR night vision, 8 pcs IR LED
• Lens Angle: 170°
• Night Vision distance:30ft
• Minimum illumination. <0.5 BLC: Auto
• White Balance: Auto,Video Color: Colorful
• Waterproof Class: IP68
• Effective Pixels : 756(H)*504(V)
• Pixel Resolution : 600TV lines
• Video Output: 1.0Vp-p,75
• Electronic Shutter: 1/60(NTSC)-1/10000S
• S/N ratio: Better Than 48db
• Operation Temperature: -20°C+70°C RH95%
• Storage Temperature: -40°C+100°C RH95%
• Working Power (DC): 12V/1,5
• Watt Current consumption: 90mA Max
• Video cable is 2 x 4Pin aviation

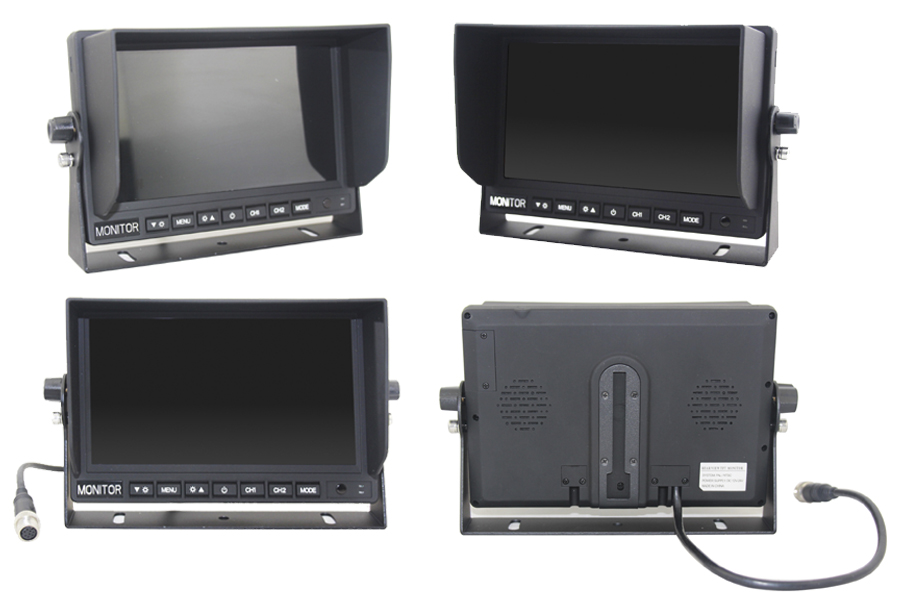

7 inch Rear View Camera Monitor/Screen (CVC-M-709)

7 inch Rear View Camera Monitor/Screen (4 PIN Connection)

These monitors are great to use when installing an aftermarket reverse camera(s) without having to affect the original factory fitted system.

U Bracket included. You can change the bracket to either CVC-M-BR01 or CVC-M-BR05  ball joint swivel brackets.

Product Specifications

• Screen Size: 7 inch
• Resolution: 800 x 480
• Screen Luminance: 450CD
• Contrast: 500:1
• View angle range: U:50/ D:60/ L/R: 70
• Video/Audio: Supports 3 CH video input, 2 Channels aviation plug supports video/audio, 1 Channel RCA Input
• Video format: CVBS/ PAL/ AUTO NTSC
• Working Voltage: DC 10.8-36V
• Bracket: U shaped bracket
• Wire Plug: 2 X RCA Plug

OSD menu features: Switch parking guide lines, Mirror/ Non-mirror image view switch, Reverse time delay 0-10 Seconds, Different language options, Adjust video effects, Adjust volume
