Complete stereo upgrade fitting kit to install a Single/ Double DIN radio in an Audi A4 (B7) car (with rear amplified audio systems)

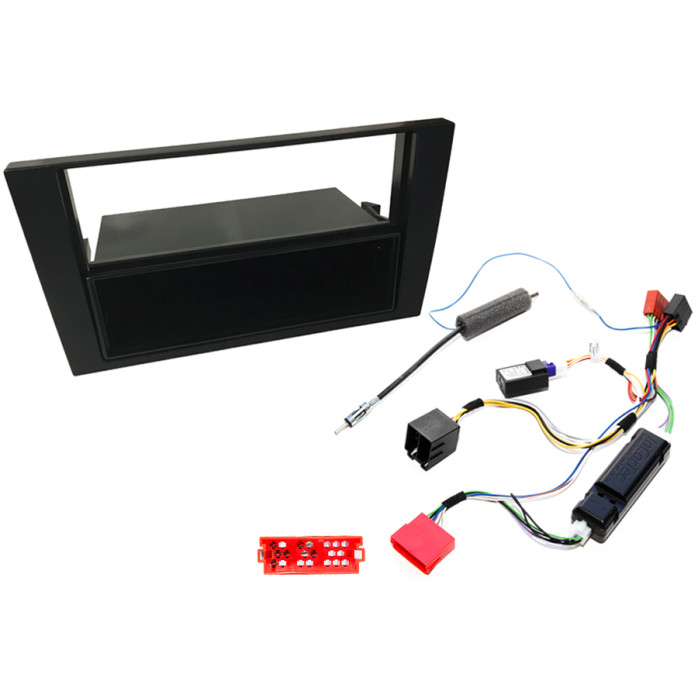

Package Includes

• Fascia Panel Adaptor
• ISO Harness Adaptor Cable
• Antenna Adaptor
• CAN Ignition Interface

Fascia Adaptor

This Adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Replacement car audio fascia to enable you to change the original radio in the car to a single and double DIN aftermarket version.

Use the supplied pocket with the fascia adapter to fit a single DIN radio, or remove the pocket and use the fascia trim only to fit a double DIN aftermarket head unit. For double DIN installation the fascia takes a 113mm high cage, this is the size of cages supplied with all major brand head unit manufacturers.

Wiring Harness

The wiring harness will allow to install the stereo.

CAN Ignition Interface

This is a plug and play adapter cable for Audi cars with ISO and Mini ISO connectors at the back of the original radio and with rear  amplified audio systems.

This cable has an adjustable  line-out converter built into the speaker cables, this drops the output levels from high level to low level in order to work with the amplifier in the car. This lead is suitable for cars with both the rear amplified audio systems.

The CANBus ignition interface generates a key present ignition supply to the new stereo, this means the stereo will turn on with the first click of the key and stay on until the key is removed from the ignition barrel.

This cable has a built in Phantom powered antenna adapter. This adapts from the antenna connector in the car, known as an ISO antenna connector, to a standard aftermarket antenna connector, known as a DIN antenna connector, for the new stereo.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

Important Fascia:

• The fascias are made to suit industry standard sized stereos such as Alpine, JVC, Kenwood, Pioneer, Sony etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
