Complete stereo upgrade fitting kit to install a Single DIN aftermarket radio in various Volkswagen cars

This kit also fits various Skoda and Seat cars.
Suitable for Skoda Superb cars with the original Columbus navigation radio.

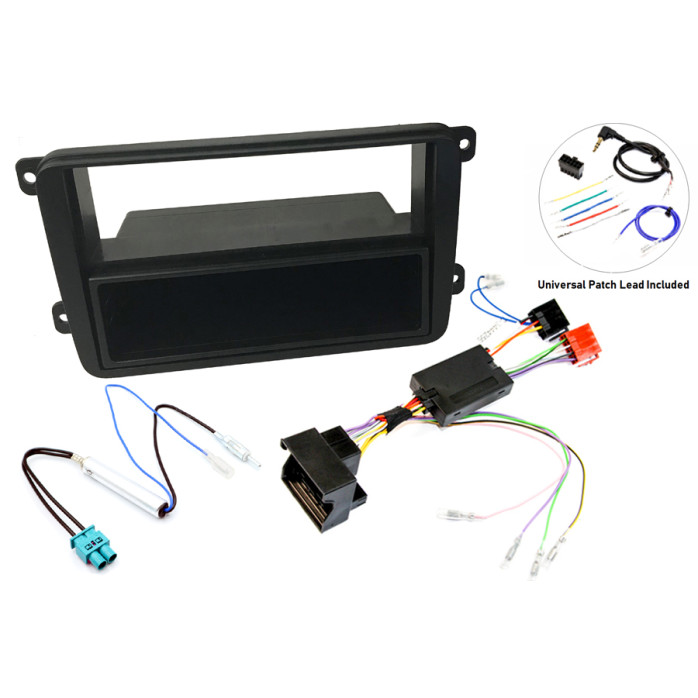

Package Includes

• Single DIN Fascia Adaptor With Removable Pocket
• Radio Replacement Steering Wheel Adaptor Interface
• Double Fakra to Din Aerial Adaptor (Phantom Power) with Bullet Connector
• Universal patch lead (Included)

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

The fascia adaptor allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio.

This fascia kit comes with a removable pocket. For double DIN installations the central bar will need to be cut out and a radio cage used.

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

The CANbus interface and radio adapter cable is plug and play, it is used to connect an aftermarket stereo upgrade and retain the use of the volume, track skip, source, mute and phone buttons from the steering wheel with the new radio. The CANbus interface will also provide ignition, illumination, speed pulse, reverse gear and handbrake outputs signals to the new stereo.

Double Fakra to Din Aerial Adaptor (Phantom Power) with Bullet Connector

Double Fakra to DIN antenna adapter cable with 12v phantom power from a male bullet connection. This antenna adapter cable adapts from the original Double Fakra connector in the vehicle to a standard aftermarket radio DIN antenna connection for the fitting of a stereo upgrade.

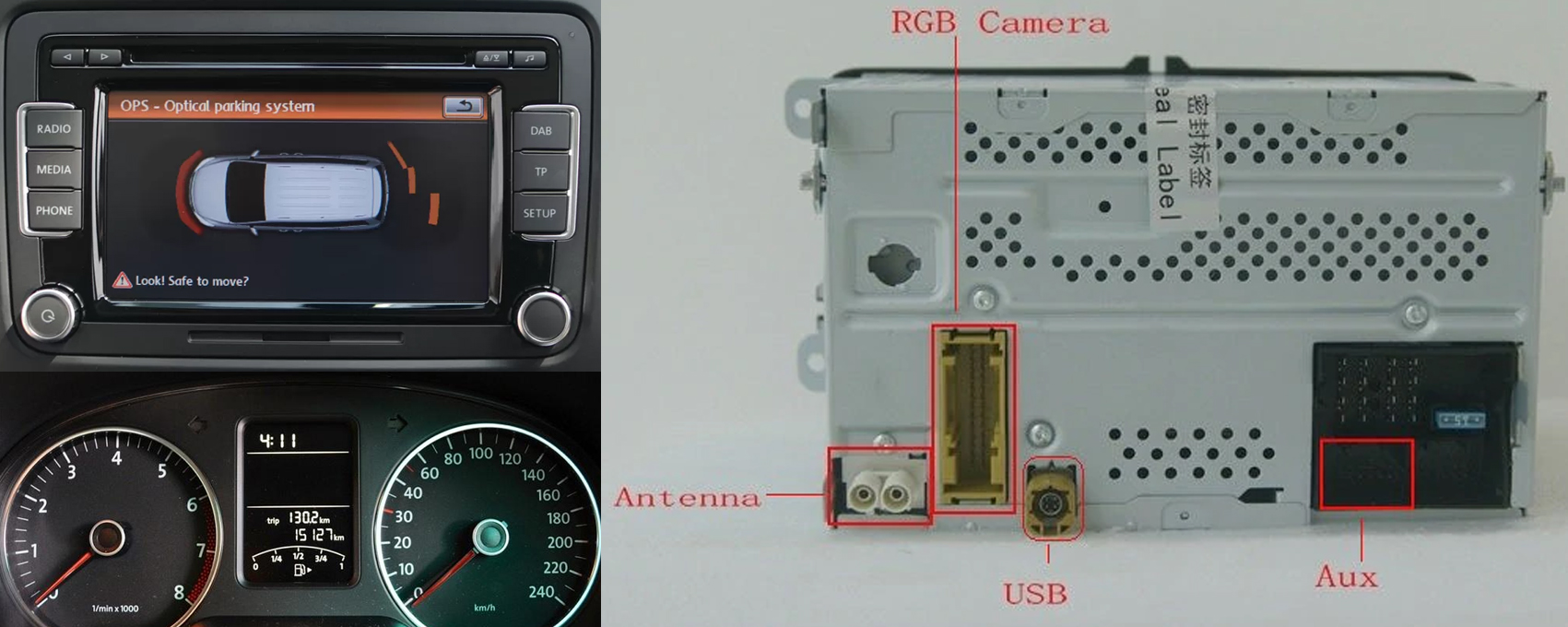

This fitting kit is compatible with Volkswagen original head units fitted with a double Fakra connection, Please see pictures below.

Please note that some vehicles have original DAB. This is not retained with this kit and will require 21-037 Fakra to SMB adapter.

This kit also does not retain original reverse cameras or USB and AUX ports. Please see the other items listed against your car and original head unit to see if these are available as they vary by model and originally fitted radio.

Not suitable for original amplified systems (Dynaudio, Fender) Please use FK-172-SWC2-D for these models.

This kit also fits various Skoda and Seat cars.
Suitable for Skoda Superb cars with the original Columbus navigation radio.

FOR UNBRANDED/ CHINESE HEAD UNITS YOU WILL REQUIRE A DEDICATED 49-000 PATCH LEAD

Important Fascia Notes

• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.
• If the cage supplied with the stereo does not fit the fascia then you must purchase a universal cage which is slightly smaller.
• Click here for CT23UN01 UNIVERSAL Mounting Cage

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.

Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection & Shape in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
