InCarTec FK-179 Volvo V70 2005 - 2007 Single / Double Din Stereo Fitting Kit
- Stock Status: In Stock
- Item Condition : New
- Available QTY : 5
- Brand: InCarTec
- Model: FK-179
- EAN: 7426871617094
- Warranty: 2 Years Warranty
Available Options
Description
Product Compatibility Chart
Make | Model | Years | Notes |
Volvo | V70 | 2005 - 2007 |
The years stated refer to the model's years of manufacture, please check the item description for information about any changes there may be within these productions years.
Complete stereo upgrade fitting kit to install a Single or Double DIN aftermarket radio and retain the use of the steering wheel controls and original amplifier in Volvo V70 (2005-2007) car models.

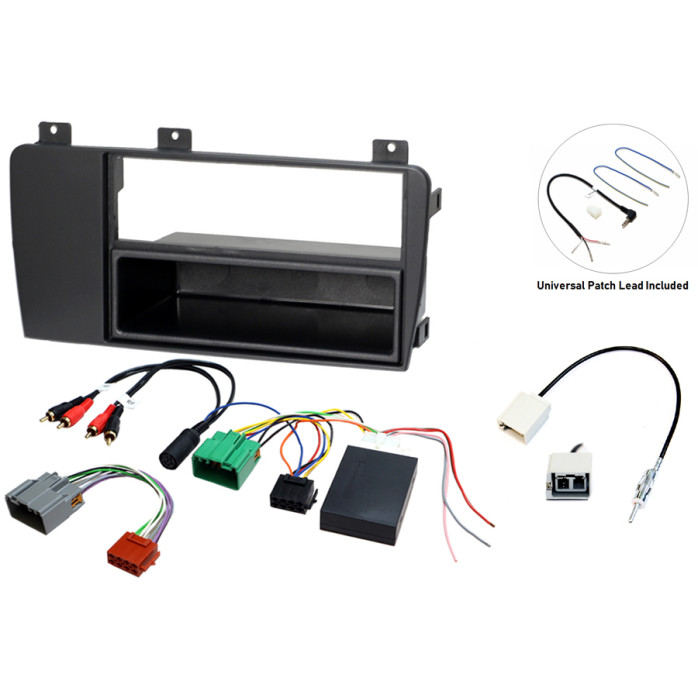

Package Includes
- Fascia Adaptor Panel
- Steering Control Interface
- Volvo to ISO Radio Adaptor Cables
- Phono Amplifier Adaptor Cables
- Volvo to DIN Antenna Adaptor
- Universal patch lead (Included)
Fascia Adaptor
This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.
Car radio fascia adaptor panel to allow the fitting of an aftermarket Single or Double DIN car radio upgrade.
The fascia adaptor allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio.
Use the supplied pocket with the fascia adapter to fit a Single DIN radio, or remove the pocket and use the fascia trim only to fit a Double DIN aftermarket head unit.
For Double DIN installation the fascia takes a 113mm high cage, this is the size of cage supplied with all major brand aftermarket radio manufacturers.
For Double DIN installation the central bar of the fascia needs to be cut out.
Steering Control Adaptor
A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.
A Volvo to ISO radio adapter cable with built in steering wheel control interface is also supplied in the kit. The cable adapts from the green and grey Volvo connectors in the car to standard aftermarket ISO connectors. A phono to 6 pin DIN adapter is also included to provide audio to the original amplifier in the car. This replaces the need for a separate ISO radio replacement adapter cable. The CANbus steering wheel control interface is built in to the adapter cable for a installation. This interface will allow the original audio control buttons on the steering wheel to work with the new aftermarket radio. The interface will work the volume, track skip and phone buttons.
The CANbus interface will also provide ignition, illumination, reverse gear, handbrake and speed pulse output signals to the new stereo.
This interface is supplied with a universal patch lead. The patch lead links the steering control interface to the steering wheel control input on the back of the new stereo.
An additional PDC retention interface (25-514-VOLVO) is required for cars that have original parking sensors.
This interface comes with a universal patch lead which can be used with Alpine, Blaupunkt, Clarion, Pioneer, JVC, Kenwood, Sony or Zenec Head-units.
Aerial Adaptor
An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.
This cable adapts from the original grey Volvo antenna connector in the car to a standard aftermarket DIN antenna connector, this is used when fitting an aftermarket stereo upgrade.
This fitting kit is designed to fit facelift 2005 - 2007 Volvo S60, V70 and XC70 cars.

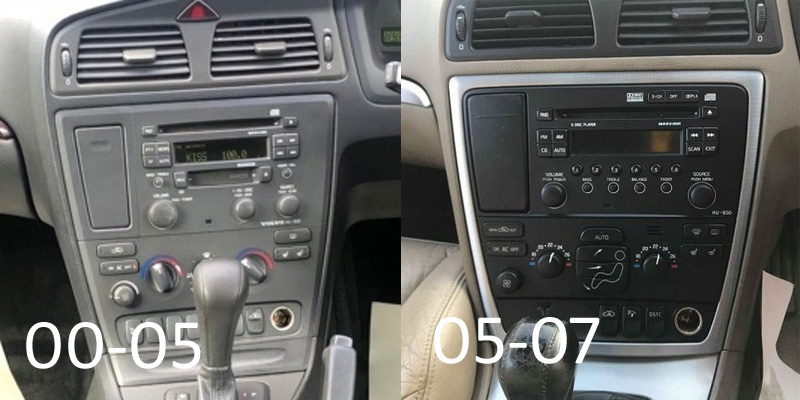

The image below shows examples of pre and post facelift dashboards from a Volvo V70. Note the shape and styling differences of the trim around the radios.
This fitting kit is Suitable for fitting facelift Volvo V70 2005 to 2007 cars with HU-6XX and HU-8XX original radios
The model numbers of the radios are printed on the front of the radio in the bottom right corner. Model number begin with HU- then have a three digit number to identify the radio model. Numbers begin with either a 6 or an 8 and require different speaker wiring depending on which it is.

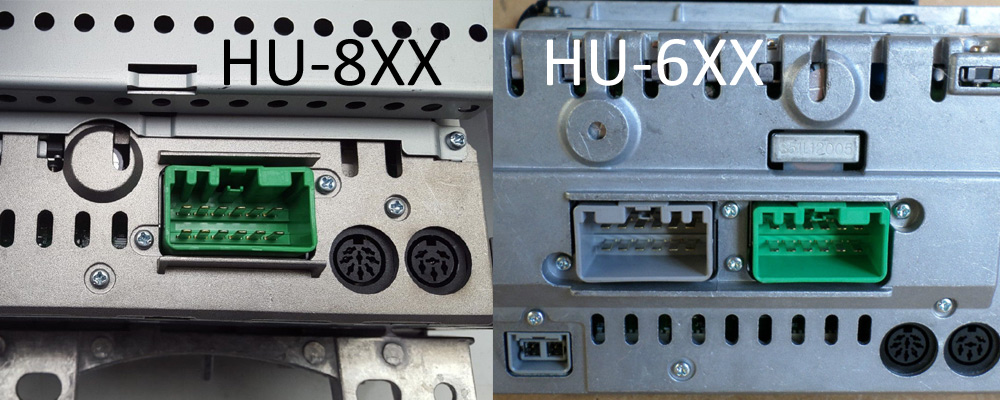

The below image shows the different connectors on the HU-8 and HU-6 radios.
The 8 pin DIN connectors are used for the CD changer.
Important Fascia Notes
- The fascias are made to suit industry standard sized stereos such as Pioneer, Kenwood, Sony, Alpine, JVC etc, NOT INCLUDING China units or unbranded units.
- China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
- We do not take any responsibility for China units not fitting as they are not industry standard size.
- Branded units come with a mounting cage and in most cases fit depending on the car.
- If the one supplied with the stereo does not fit the fascia then you must purchase a universal version slightly smaller part number.
- China units in general never come with a mounting cage. Click here for CT23UN01 UNIVERSAL Mounting Cage
Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection & Shape in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
