Complete stereo upgrade fitting kit to install a Double DIN aftermarket radio and retain the use of the steering wheel controls in Mazda MX-5 (2005-2009) car models with BOSE audio systems.

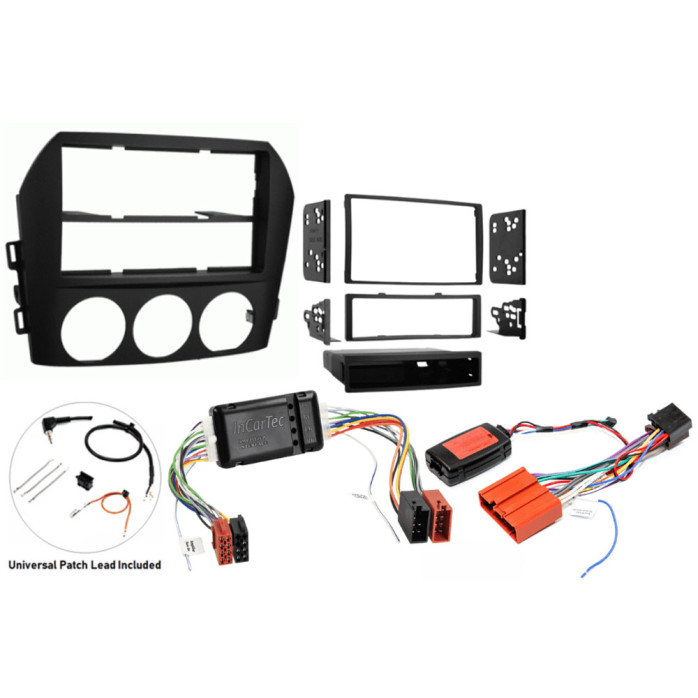

Package Includes

• Single/Double Din Car Audio Fascia (Matt Black)
• ISO Cable & Steering Control Interface
• ISO to ISO BOSE Amplifier Integration Interface
• Universal patch lead (Included)

This fitting kit is suitable for Mazda MX-5 models from 2005-2009 with factory BOSE audio systems

Fascia Adaptor

Car radio fascia adapter panel to allow the fitting of an aftermarket Single or Double DIN car radio upgrade. The fascia adaptor allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio.

This fascia kit uses side fixing brackets, the brackets fit directly to the sides of the new radio and the fascia panel. This replaces the need for a fitting cage and gives a flush professional appearance to the installation. Use the supplied pocket to fit a single din radio, or discard the pocket to fit a double DIN stereo.

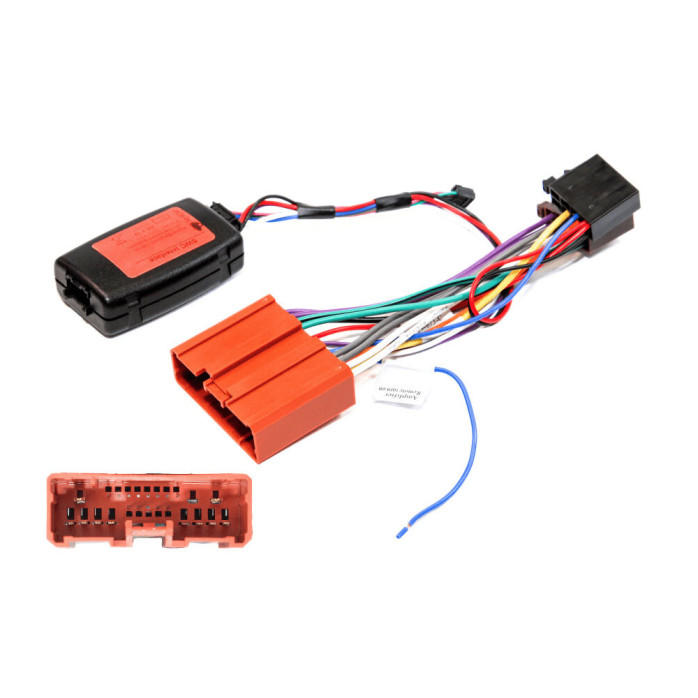

ISO Cable & Steering Control Interface

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

Mazda car audio interface cable with power and speaker ISO connections allowing use of original steering wheel buttons with a new aftermarket head-unit.

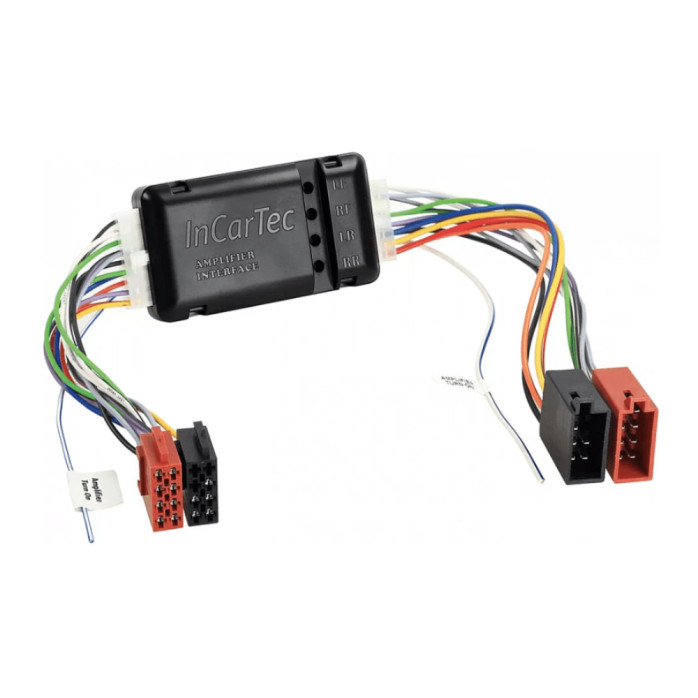

ISO to ISO BOSE Amplifier Integration Interface

This interface converts the high level audio output of a new head unit to a low level pre amplified signal which will work with an amplifier. 4 adjustable channels for optimum audio quality, it has a built in ground loop isolator and filters to get the best sound from the amplifier. BOSE amplifier integration interface for cars with factory fitted Bose amplifiers.

This interface can be used on cars without Bose amplifiers, the amplifier adapter will not need to be connected.

Universal Patch Lead

Universal patch lead to be used with In car Tec 29- series steering wheel control interfaces. Use for Alpine, Clarion, JVC, Kenwood, Pioneer, Sony, Zenec, Philips, Dynavin and non branded Chinese head units.

Important Fascia:

• The fascias are made to suit industry standard sized stereos such as Alpine, JVC, Kenwood, Pioneer, Sony etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
