Complete stereo upgrade fitting kit to install a Single/Double DIN aftermarket radio in Audi A3 (8P) facelift (2006-2013) car models with CANBus ignition and rear amplified sound systems.

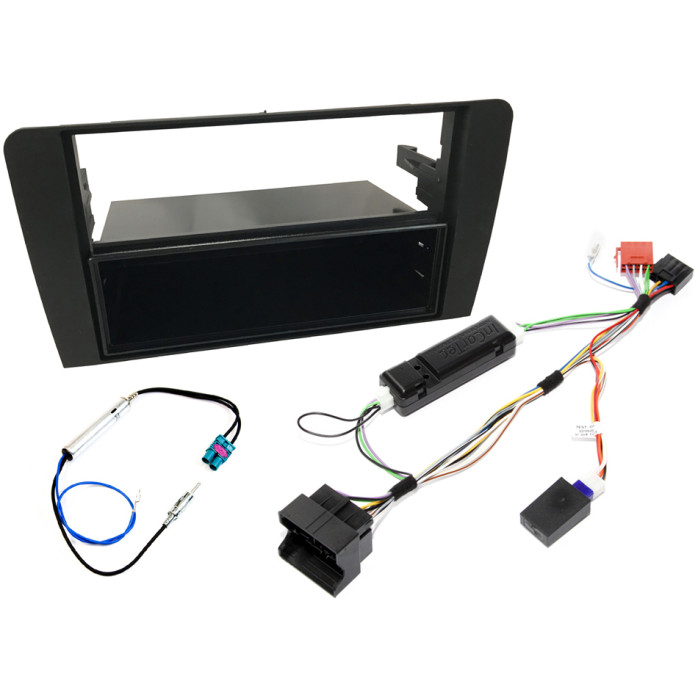

Package Includes

• Fascia Adaptor Panel
• CAN Ignition Interface
• Quadlock to ISO Harness Adaptor
• Antenna Adaptor

Fascia Adaptor

This Adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

A removable pocket is included for Single DIN installation.

Wiring Harness

The wiring harness will allow to install the stereo.

This Quadlock to ISO adapter cable with CANbus ignition adapts from the original connector in the car, known as a quadlock, to standard aftermarket connectors for the new stereo, known as ISO connectors. The CANbus ignition interface generates a key present ignition supply to the new stereo, this means the stereo will turn on with the first click of the key and stay on until the key is removed from the ignition barrel. This interface is built into the Quadlock to ISO harness adapter so installation is plug and play.

The plug and play Quadlock to ISO cable also has a built in high to low level adapter for the amplified speakers.  The adapter allows the new stereo to work with the original amplifier which drives all the speakers in the car and the subwoofer. The adjustable high to low level adapter gives a much cleaner audio signal to the amplifier compared to using line output phono leads.

Aerial Adaptor

Double moulded Fakra Aerial adapter cable for European cars that have amplified original antennas. Use with cars that have twin antenna both requiring power. This cable converts the cars existing ISO aerial plug to an aftermarket DIN type used by most car radio manufacturers. Will also provide a power feed to give 12 volt from the car radio to the cars amplified antenna.

Important Fascia:

• For a double din installation please use 50-702
• A flush mount PRO-fit style fascia is also available, please see 50-271-PRO
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit. We do not take any responsibility for China units not fitting as they are not industry standard size.
• The fascia will require a standard 113mm high metal cage as used by most aftermarket head-unit manufacturers. This cage is normally provided with the unit. If not, you will need our cage item number 51-013.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
