Complete stereo upgrade fitting kit to install a Single or Double DIN head unit and retain the original steering wheel controls in Audi A3 8P facelift (2006-2013) cars.

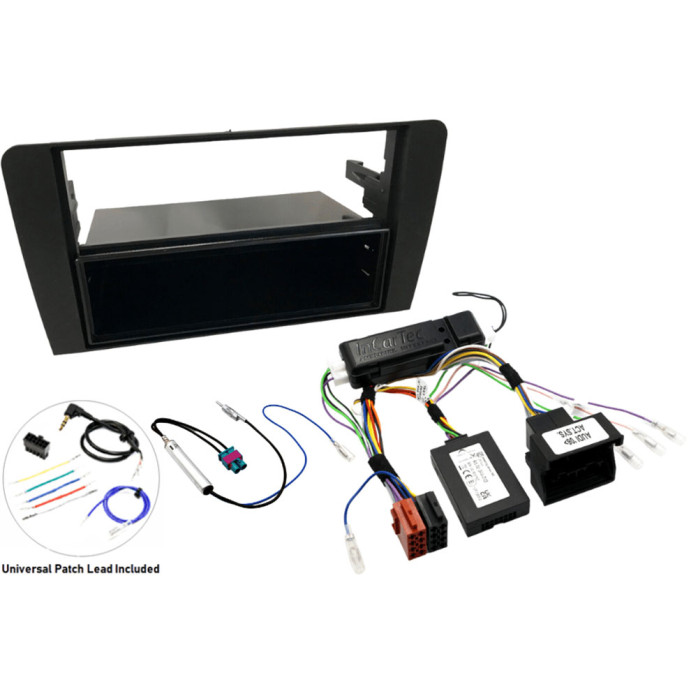

Package Includes

• Fascia adapter panel (MATT BLACK)
• Steering Wheel Control Interface
• Quadlock to ISO adapter lead
• Antenna Adaptor cable
• Universal Patch Lead (Included)

Fascia Adaptor

This Adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Replacement car audio fascia to enable you to change the original radio in the car to a Single and Double DIN aftermarket version

A removable pocket is included for Single DIN installation.

Steering Control Adaptor

A stalk/steering wheel control Adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

This cable adapts from the original connector in the car, known as a quadlock, to standard aftermarket connectors for the new stereo, known as ISO connectors. The CANbus steering wheel control interface will retain the use of the original radio controls on the steering wheel with an aftermarket stereo. The CANbus interface generates a key present ignition supply to the new stereo, this means the stereo will turn on with the first click of the key and stay on until the key is removed from the ignition barrel. The interface also generates speed pulse, reverse gear and handbrake output signals, these are used when installing multimedia, navigation units and reverse cameras. This interface is built into the Quadlock to ISO harness adapter so installation.

The Quadlock to ISO cable also has a built in high to low level adapter for the rear amplified speakers.  The adapter allows the new stereo to work with the original amplifier which drives all the speakers in the car and the subwoofer. The high to low level adapter gives a much cleaner audio signal to the amplifier compared to using line output phono leads.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

Double Fakra to DIN antenna adapter cable with 12v phantom power from a male bullet connection. This antenna adapter cable adapts from the original Double Fakra connector in the vehicle to a standard aftermarket radio DIN antenna connection for the fitting of a stereo upgrade.

Universal patch lead

Universal patch lead to be used with In car Tec 49 series steering wheel control interfaces. Use for Alpine, Clarion, JVC, Kenwood, Pioneer and Sony head units.

Important Patch lead:

For Unbrabed / Chinese Head Units you will require a dedicated 49-000 Patch Lead

Important Fascia:

• For a double din installation please use 50-702
• A flush mount PRO-fit style fascia is also available, please see 50-271-PRO
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit. We do not take any responsibility for China units not fitting as they are not industry standard size.
• The fascia will require a standard 113mm high metal cage as used by most aftermarket head-unit manufacturers. This cage is normally provided with the unit. If not, you will need our cage item number 51-013.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
