Complete stereo upgrade fitting kit to install a Single or Double DIN aftermarket radio and retain the use of the steering wheel controls in Mercedes M-Class (W164) (2005-2010) vehicles with Standard Audio

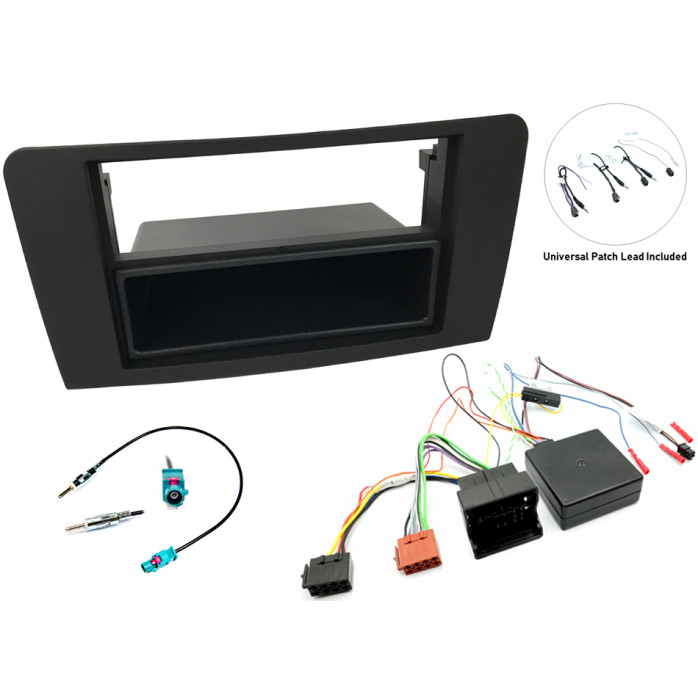

Package Includes

• Single / Double Din Fascia (Matt Black)
• Steering Wheel Control Interface
• Fakra to Din Antenna Adaptor
• Universal patch lead (Included)

This is an alternative fitting kit to FK-293

Only suitable for Vehicles with Standard audio systems

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Replacement car audio facia to enable you to change the original radio in the car to a Single and Double DIN aftermarket version

Fits Mercedes M-Class (W164) (2005-2010) car models

A removable pocket is included for Single DIN installation.

For a Double DIN installation the central bar of the fascia will need to be cut

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

This CANbus interface will allow you to retain the audio steering wheel controls when installing an after market head unit in various Mercedes vehicles.

This interface will also allow the steering wheel controls to access the display screen menu.

The CANbus interface will also give out CAN ignition, speed pulse, reverse gear and hand brake signals.

This part is an alternative to 49-MB-02

SLK Note: Use this interface for later models R171 with the steering control buttons in a circular cluster. This change of steering wheel happened around 2008 models

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

Male Fakra to Male DIN antenna adapter cable. This cable adapts from a Farka antenna connection at the back of the cars original radio to a standard aftermarket DIN antenna connection to allow the fitting of an aftermarket radio upgrade. This is a passive adapter cable, not suitable for cars that need a phantom power supply to turn on the antenna amplifier.

Universal Patch Lead

Patch cable set to connect a UNICAN interface between an after market head unit and the steering wheel controls. Can be used with Alpine, Kenwood, JVC (single wire), Pioneer, Sony and Chinese/Resistive Programmable head units with either two wires or a 3.5mm jack.

Important Fascia Notes

• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.
• If the cage supplied with the stereo does not fit the fascia then you must purchase a universal cage which is slightly smaller.
• Click here for CT23UN01 UNIVERSAL Mounting Cage

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.

Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection & Shape in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
