Complete stereo upgrade kit to install a single or double DIN aftermarket radio and retain the use of the steering wheel controls in Chrysler, Dodge and Jeep vehicles from 2005-2008.

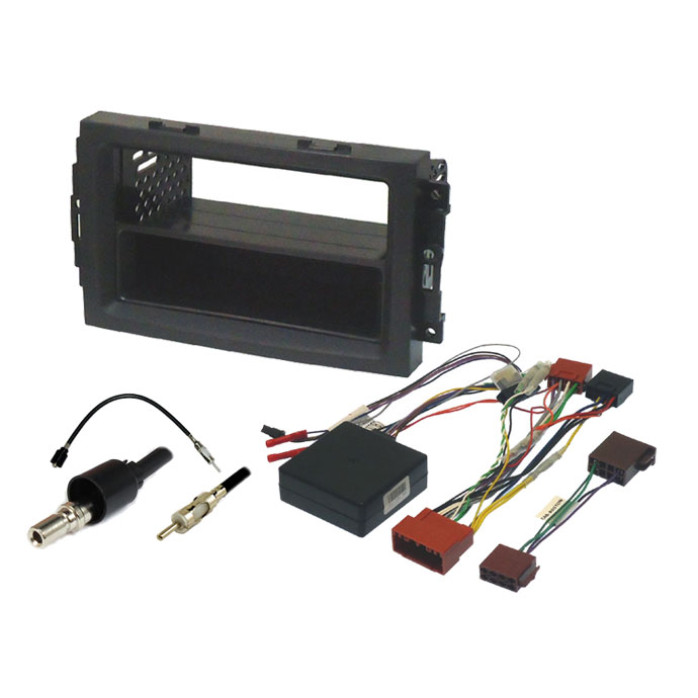

InCarTec FK-304 Includes

• Single and Double Din Fascia Adaptor
• Steering Control And Amplifier Retention Interface
• Antenna Adaptor
• Universal patch lead (Included)

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

comes with a removable pocket for single DIN fittings and side fixing brackets so no double DIN cage is needed.

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

CANbus steering control and Amplifier Turn On interface for Chrysler, Dodge and Jeep vehicles. This interface connects to the CANbus wires at the back of the radio. These are white and white/orange wires in pins 5 and 6 in the 22 way connector. Vehicles from 2005 generally had the CANbus wires present at the radio. We do recommend removing the head unit to check if the CANbus wires are present if the vehicle around a 2005 production year. The CANbus interface retains the use of the original audio controls on the steering wheel with an after market head unit. The interface also switches on the original amplifier in the car via a CANbus turn on signal. Gives out speed pulse and reverse gear CANbus signals.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

Antenna cable adapter for Saab cars after 2007 that had Delphi Grundig navigation radios. This cable converts the cars existing special aerial plug to an after market DIN type used by most car radio manufacturers.

UNICAN Patch Lead

Patch cable set to connect a UNICAN interface between an after market head unit and the steering wheel controls. Can be used with Alpine, Kenwood, JVC (single wire), Pioneer, Sony and Chinese/Resistive learning head units with either two wires or a 3.5mm jack.

Important Patch lead:

• Universal patch lead which can be used with Alpine, Kenwood, JVC, Pioneer, and Sony
• Chinese/Resistive learning head units with either two wires or a 3.5mm jack
• This patch lead set must be used with a 29-UC-Series steering wheel control interface, it will not work on its own.

Important Fascia:

• The fascias are made to suit industry standard sized stereos such as Alpine, JVC, Kenwood, Pioneer, Sony etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
