Complete stereo upgrade fitting kit to install a Single or Double DIN aftermarket radio and retain the use of the steering wheel controls in Mercedes SLK R171 (2009-2011) car models with original NTG2/COMAND APS NTG2 radios and non amplified audio systems.

This is an alternative fitting kit to FK-313-4

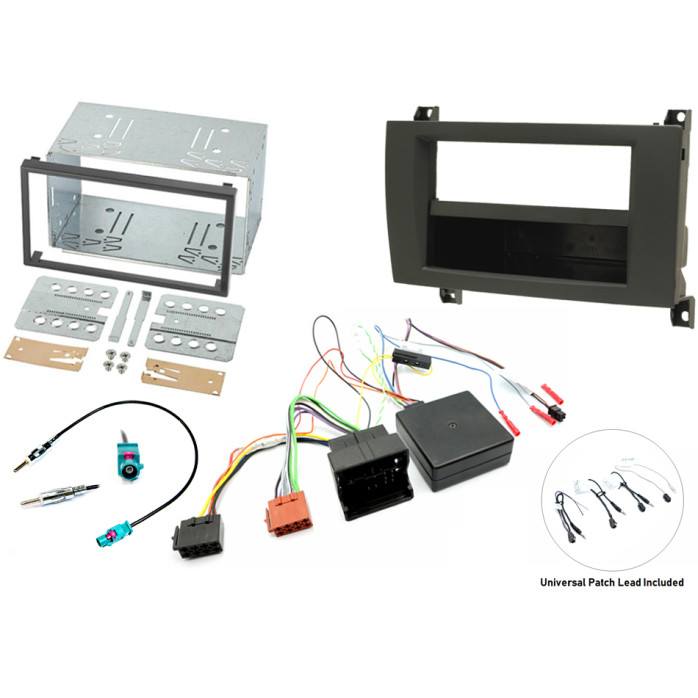

Package Includes

• Single and Double Din Fascia Adaptor Panel (Flush Mount )
• 103mm Double Din Fitting Cage Kit
• Steering Control Interface
• Antenna Adaptor Cable
• Universal patch lead (Included)

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

The fitting kit has a fascia adapter panel to allow the fitting of an aftermarket single or double DIN car radio upgrade. The fascia adaptor allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio. Use the supplied pocket with the fascia adapter to fit a single din radio, or remove the pocket and use the fascia trim only with the supplied 103mm fitting cage to fit a double din aftermarket head unit. Most aftermarket radios are supplied with a 113mm high cage, because of this an additional 103mm fitting cage is also supplied in this fitting kit.
The fascia is a flush mount fascia, it gives a very tidy and professional finish.

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

The fitting kit is supplied with a steering control interface and radio adapter cable. The cable adapts from the Quadlock connector in the car to standard aftermarket ISO connectors. This replaces the need for a separate ISO radio replacement adapter cable. The CANbus steering wheel control interface is built in to the adapter cable for a plug and play installation This interface will allow the original audio control buttons on the steering wheel to work with the new aftermarket radio. The interface will work the volume and track skip buttons.
The CANbus interface will also provide ignition, illumination, reverse gear, handbrake and speed pulse outputs.
This interface is supplied with a universal patch lead. This links the steering control interface to the steering wheel control input on the back of the new stereo.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

A Fakra to DIN antenna adapter is in the kit. This cable adapts from a Fakra antenna connection at the back of the cars original radio to a standard aftermarket DIN antenna connection to allow the fitting of an aftermarket radio upgrade.

This kit is for 2009 to 2011 facelift Mercedes SLK R171 cars with basic Mercedes NTG2 or navigation COMAND APS NTG2 original radios and non amplified audio systems.

Below is an image of a radio fitted using this kit.

Important Fascia Notes

• The fascias are made to suit industry standard sized stereos such as Pioneer, Kenwood, Sony, Alpine, JVC etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.

Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection & Shape in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
