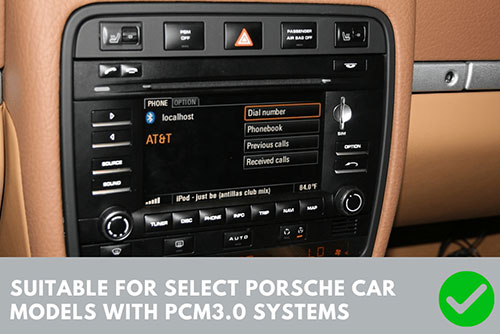

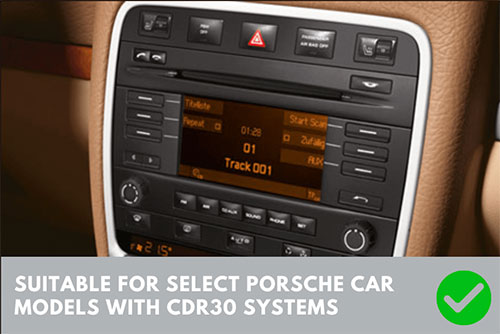

Complete stereo upgrade fitting kit to install a Single or Double DIN aftermarket radio and retain the use of the steering wheel audio controls in select Porsche Cayenne car models with CDR30/ PCM3.0 systems (Quadlock connection) without Bose audio.

Package Includes

• Single / Double Din Fascia (Matt Black)
• Steering Wheel Control Interface
• Male Fakra to Din Antenna Adaptor
• Double Din Radio Cage
• Universal Patch Lead (Included)

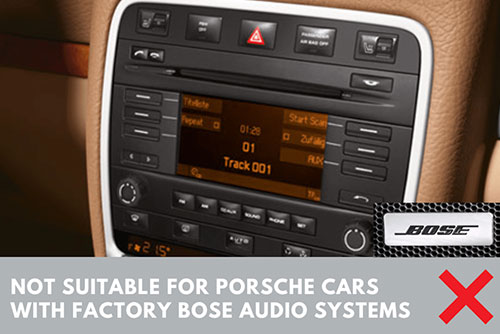

For Porsche models with BOSE audio please use FK-324-QUAD-BOSE

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Replacement car audio fascia to enable you to change the original radio in the car to a single and double DIN aftermarket version A removable pocket is included for Single DIN installation.

COLOUR: MATT BLACK

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

CANbus steering wheel control interface for Porsche Cayenne (92A) Facelift (2007-2009) car models with original Quadlock connections behind the radio.

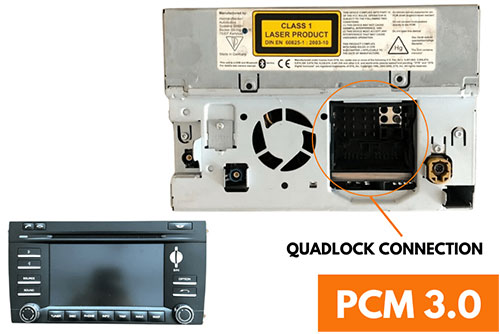

This interface uses Quadlock connections behind the original radio to allow the use of the original steering wheel control buttons with a new aftermarket head-unit. It also provides CANbus outputs as well as Ignition, speed pulse, reverse gear, handbrake and illumination signals to the new stereo. Phone functions included for Alpine, Pioneer.

This interface comes with a universal patch lead which can be used with Alpine, Blaupunkt, Clarion, Pioneer, JVC, Kenwood, Sony or Zenec Head-units.

Male Fakra to Din Antenna Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

Male Fakra to Male DIN antenna adapter cable. This cable adapts from a Farka antenna connection at the back of the cars original radio to a standard aftermarket DIN antenna connection to allow the fitting of an aftermarket radio upgrade.

This is a passive adapter cable, not suitable for cars that need a phantom power supply to turn on the antenna amplifier.

Double Din Radio Cage

Car audio metal cage kit and trim 103mm high. Needed with some double din fascias that do not fit the normal 113mm cages supplied with aftermarket head-units.

This kit is designed to replace the metal cage kit that is usually supplied with your new aftermarket double din head-unit or navigation system. It is used along with fascias that have 103mm high hole sizes. Complete with fixings to attach to the new car radio body.

Important Fascia:

• The fascias are made to suit industry standard sized stereos such as Alpine, JVC, Kenwood, Pioneer, Sony etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
