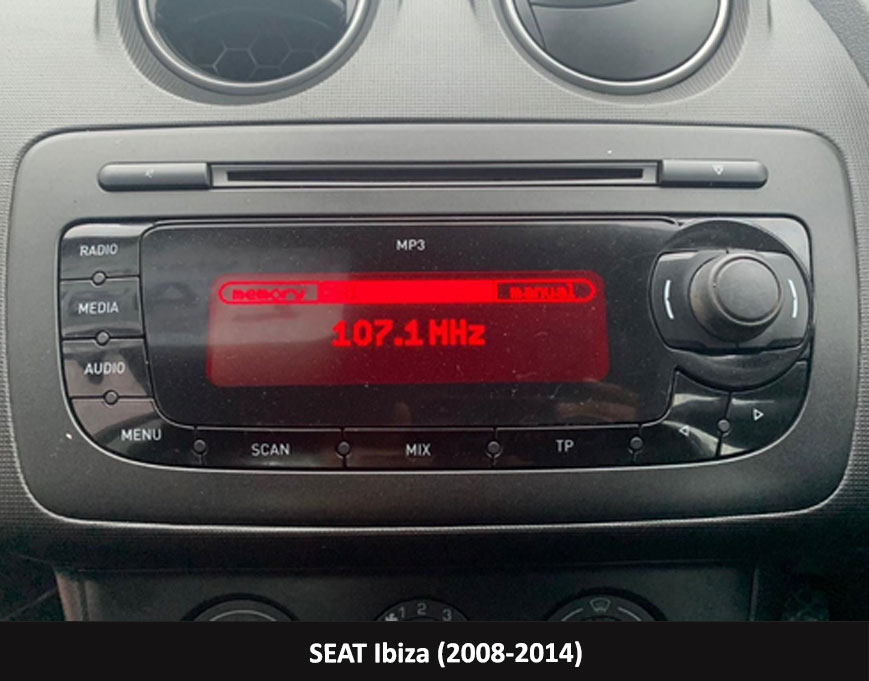

Complete stereo upgrade fitting kit to install a Double DIN aftermarket radio in Seat Ibiza (2008-2014) car models.

This fitting kit allows you to replace the original factory fitted head unit in the vehicle with a new aftermarket Double DIN version, retaining the original dashboard appearance and the steering wheel control functions.

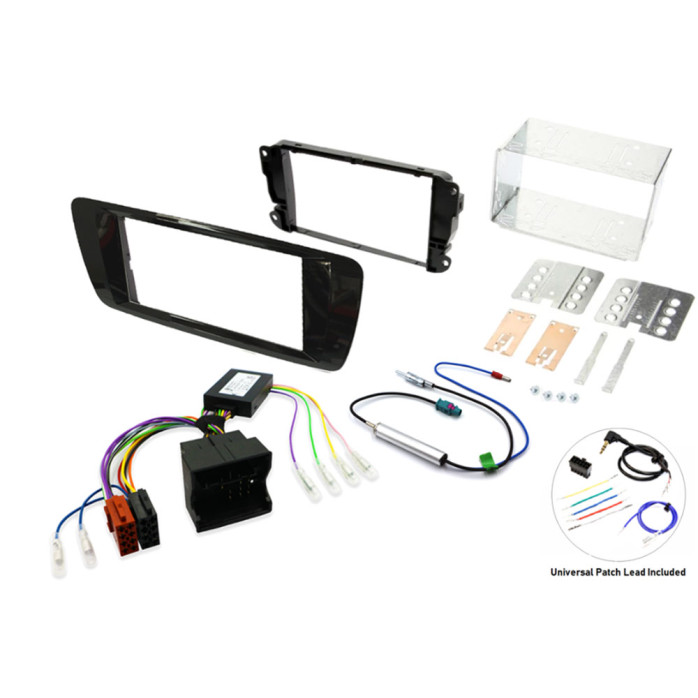

Package Includes

• Double Din Flush Fit Fascia Adaptor (GLOSS BLACK)
• Steering Wheel Control Interface and Radio Adaptor Cable
• Fakra to Din Aerial Adaptor (Phantom Power) with Bullet Connector
• Universal patch lead (Included)

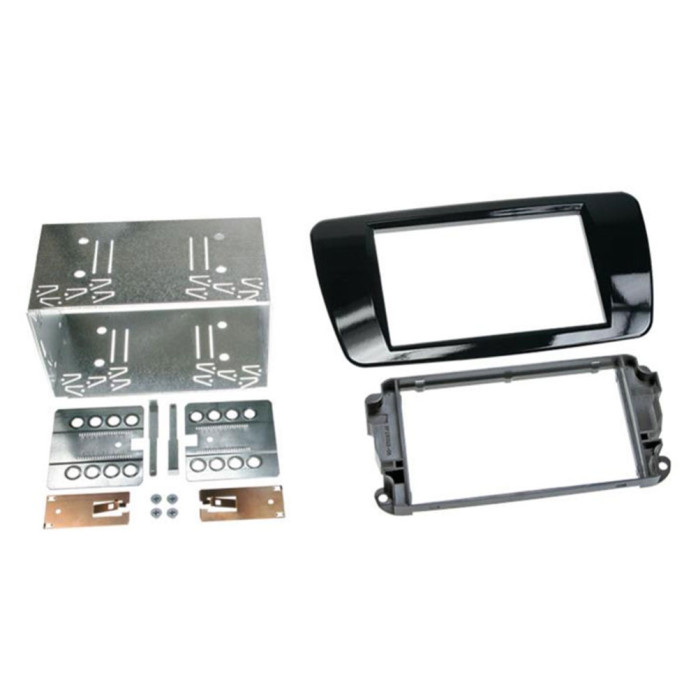

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

This fascia adapter panel is to fit a Double DIN aftermarket radio. The fascia adapter allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio.

The fascia is a Gloss black finish and is a flush mount style so it replaces the radio trim supplied with the aftermarket radio. This gives a flush professional finish to the installation.

The fascia is supplied with a double din fitting cage. Standard cages supplied with aftermarket radios are too big for the fascia trim.

Fits Seat Ibiza Mk4 (2008 - 2017). Will not fit cars with original MIB II colour screen.

COLOUR: GLOSS BLACK

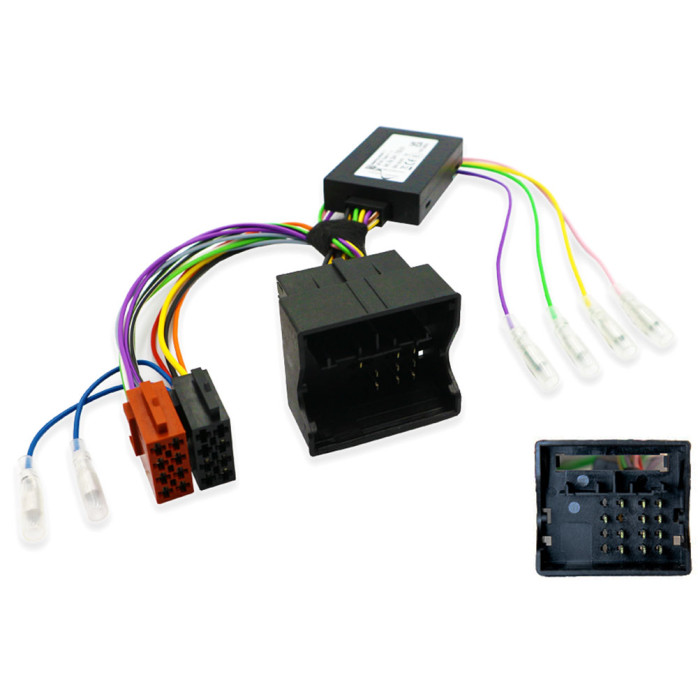

Steering Wheel Control Interface and Radio Adaptor Cable

Steering wheel control interface and adapter cable for Seat cars to fit an aftermarket radio upgrade.

The cable adapts from the Quadlock connector in the car to standard aftermarket ISO connectors. This replaces the need for a separate ISO radio replacement adapter cable.

The CANbus steering wheel control interface is built in to the adapter cable for a plug and play installation.

This interface will allow the original audio control buttons on the steering wheel to work with the new aftermarket radio. The interface will work the volume, track skip, source, mute and phone buttons. Note; the operation of these buttons can be dependent on the vehicle specification and radio compatibility, see the instructions for more information.

The CANbus interface will also provide a key present ignition, illumination, speed pulse, reverse gear and handbrake outputs. A key present ignition means the stereo will turn on with the first click of the key and stay on until the key is removed from the ignition barrel.

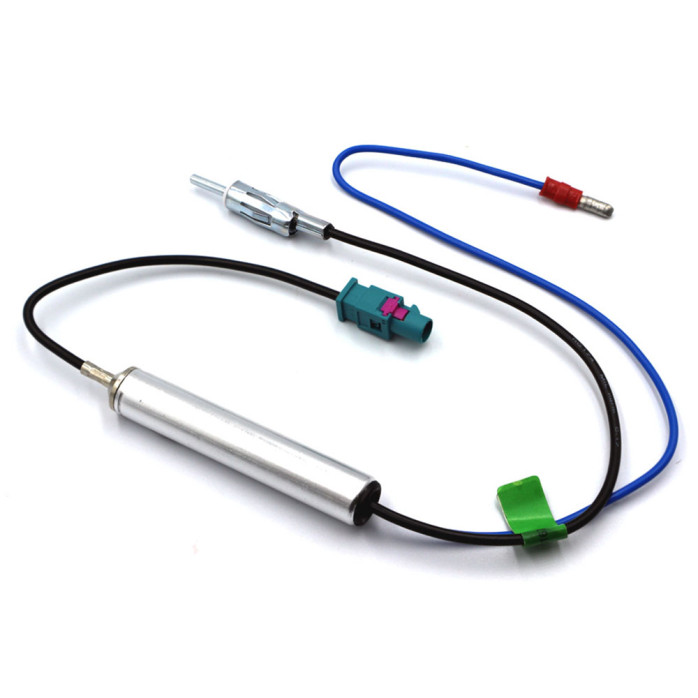

Fakra to Din Aerial Adaptor (Phantom Power) with Bullet Connector

This cable converts the original antenna connector in the car, known as a Fakra connector, to a standard aftermarket antenna connector, known as a DIN connector.

The adapter cable has a built in module which provides a phantom power feed to the original antenna in the car. A phantom power feed is a 12v power supply that is sent up the centre wire of the antenna cable, this powers the amplifier built into the original antenna. The antenna adapter cable has a loose wire which needs to be connected to the 12v antenna power output of the new aftermarket stereo.

The phantom power feed terminates in a male bullet connector to make the phantom power lead easier to connect to ISO cables and steering wheel control interfaces with a female bullet connection for the electric antenna turn on. We also have this part available with a junior timer receptacle terminal to make it easy to connect into the electric antenna turn on position of a standard ISO connector, the 21-123.

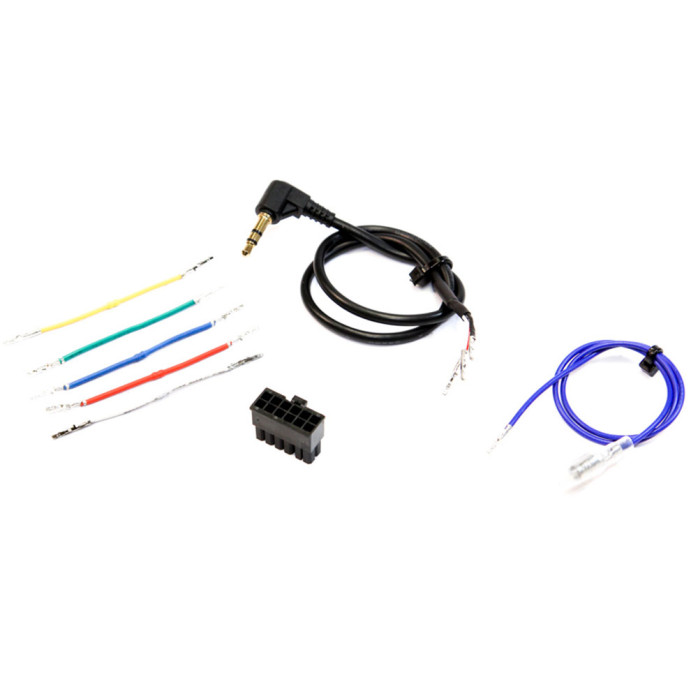

Universal Patch Lead

Universal patch lead to be used with In car Tec 49 series steering wheel control interfaces. Use for Alpine, Clarion, JVC, Kenwood, Pioneer and Sony head units.

FOR UNBRANDED/ CHINESE HEAD UNITS YOU WILL REQUIRE A DEDICATED 49-000 PATCH LEAD

Important Fascia Notes

• The fascias are made to suit industry standard sized stereos such as Pioneer, Kenwood, Sony, Alpine, JVC etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.

Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection & Shape in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
