Complete stereo upgrade kit to install a Single DIN aftermarket radio and retain the use of the steering wheel audio controls in Volvo C30/C70/S40 and V50 car models (WITH AMPLIFIED SOUND SYSTEMS)

This kit also retains phone button controls, warning chimes/parking sensor audio and provides outputs for Park Brake, Reverse Gear and Speed Pulse.

This kit is the equivalent of Connects2 part: CTKVL05

• Allows for the installation of a single DIN aftermarket stereo
• Retains steering wheel control functionality
• Retains phone button functionality
• Retains amplified system
• Retains warning chimes/parking sensor audio (via integrated speaker)
• Provides outputs for speed pulse, park brake and reverse gear
• Kit includes universal patch lead and antenna adapter
• Includes mounting brackets and fitting accessories

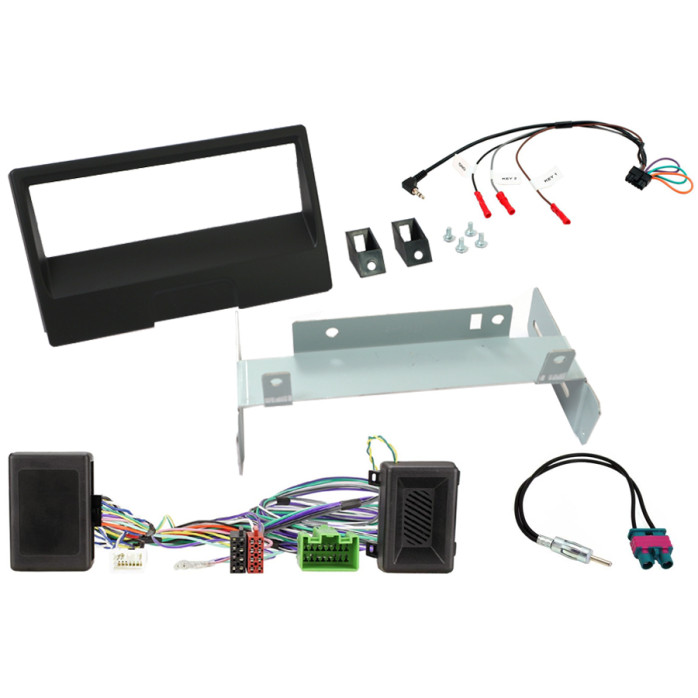

Package Includes

• Single Din Fascia
• Steering Wheel Control Interface
• Antenna Adaptor
• Universal patch lead (Included)

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

ONLY SUITABLE FOR MODELS WITH AMPLIFIED SOUND SYSTEMS, FOR NON-AMPLIFIED SYSTEMS PLEASE USE FK-550

Does not retain original display showing any car settings, temperature and fan speed on climate system.

FACIA MODIFICATION REQUIRED

The original facia panel will need to be cut (Please see picture below) We recommend this should be done by a professional car audio technician/ installer

On amplified sound systems, you will need to unplug the original OEM amplifier and connect to the supplied amplifier bypass cable. It will power all the speakers apart from centre channel speakers (usually found on Dynaudio Sound Systems)

High Performance/ Premium Sound Systems Examples

All Volvo C30/C70/S40 and V50 car models from 2004-2012 had 3 different sound systems:

Performance Sound (NON-AMPLIFIED)

This was fitted as the standard sound system for most of these Volvo Models. Although it had a couple of variations in its model years, it typically consisted of a standard 6 or 8 speaker set up system

High Performance Sound (Amplified)

This was fitted both as standard on Higher Spec Volvo models and as an optional upgrade. An easy way to tell if your vehicle is fitted with this system is when the radio powers up it will show on the radio display as 'HIGH PERFORMANCE SOUND'

Premium Sound (Amplified) Either DYNAUDIO or DOLBY PRO LOGIC II

This was fitted as an optional upgrade. An easy way to tell if your vehicle is fitted with this system is when the radio powers up it will show on the radio display as PREMIUM SOUND' This sound system is easier to identify as their will usually be a DYNAUDIO badge on some of the sound equipment. For E.G. On top of the centre speaker above the radio (Centre Dashboard)

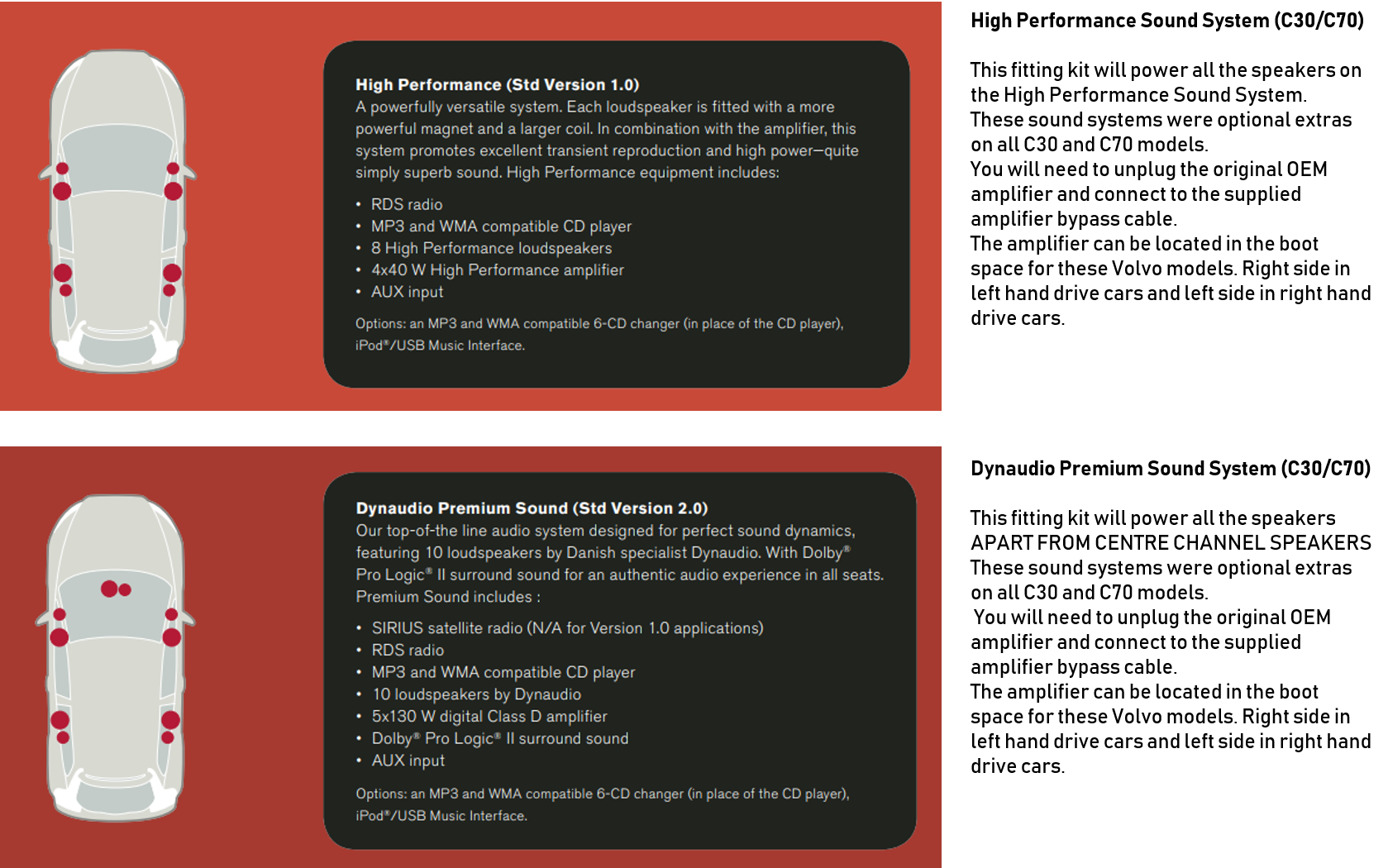

Below are some examples of the sound systems installed on C30 and C70 (2007-2013) car models

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.

Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection & Shape in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
