Complete stereo upgrade fitting kit to install a Single/ Double DIN aftermarket car stereo head unit and retain the use of the factory steering wheel controls in select Nissan NV200 (2010-2019) vehicle models with standard radio.

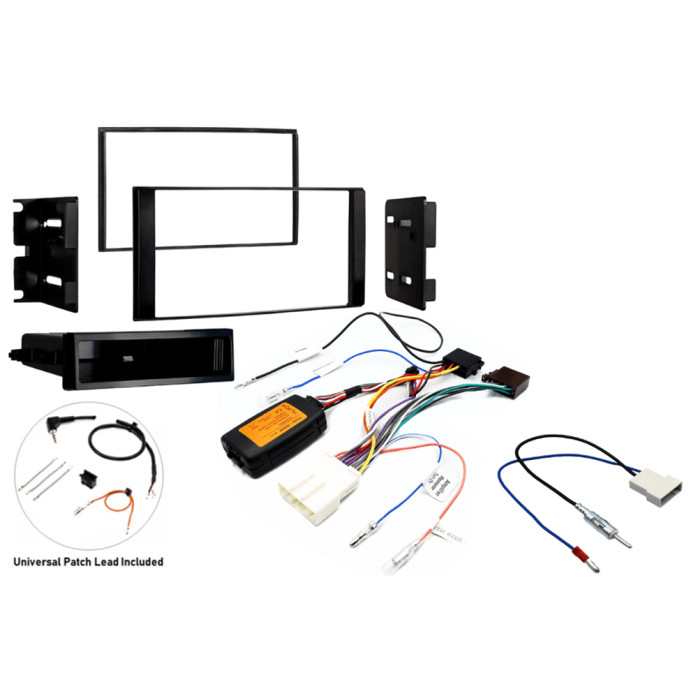

Package Includes

• Single/Double Din Fascia Adapter (Matt Black)
• Steering Wheel Control Interface Adaptor
• Aerial Antenna Adapter Cable
• Universal patch lead (Included)

For vehicles with navigation systems and factory fitted reverse camera please use FK-644-SWC-CAM

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Replacement audio fascia to enable you to change the original radio in the vehicle to a Double DIN aftermarket version

The fascia adaptor allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio.

This fascia kit uses side fixing brackets, the brackets fit directly to the sides of the new radio and the fascia panel. This replaces the need for a fitting cage and gives a flush professional appearance to the installation.

A pocket is provided for Single DIN installation

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

Steering wheel control interface and adapter cable for Nissan Navara D40, NV200, Pathfinder, Patrol and Qashqai cars to fit an aftermarket radio upgrade.

The cable adapts from the 20 pin Nissan connector (the connector has a larger size terminal at either end of the connector) in the car to standard aftermarket ISO connectors. This replaces the need for a separate ISO radio replacement adapter cable.

The steering wheel control interface is built in to the adapter cable. This interface will allow the original audio control buttons on the steering wheel to work with the new aftermarket radio. The interface will work the volume, track skip, source and phone buttons. (6 function steering wheels)

This interface fits cars with the newer 20 way car audio connector that has two larger size terminals at either end of the connector. These radios will also have an additional smaller connector, this is used for CD changer and navigation audio. It is not used when changing the head unit.

Installation notes

• Connect male ISO(S) of the steering wheel control interface to the female ISO(S) of the aftermarket radio lead/head unit
• Loose black wire - Connect the radio ground earth ring to the vehicles chassis ground
• Loose pink wire - Connect the pink wire to the speed pulse connector on the aftermarket radio (Not all radios have this, please check manufacturers instructions)
• Loose blue wire (Amplifier turn-on) - This is only required on amplified systems such as BOSE.
• Loose blue wire (Antenna turn-on) - This needs to be connected to the antenna turn on cable on the antenna adapter cable

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

Nissan (grey rectangle female antenna to male DIN connection) car aerial antenna adapter cable.

This cable adapts from the grey plastic rectangle Nissan antenna connector in the car to a standard aftermarket male DIN connector, used when fitting a new aftermarket stereo.

The loose blue wire (male bullet) on the adapter needs to be connected to the antenna turn on output from the new radio, this turns on the original antenna amplifier in the car.

Universal Patch Lead

Universal patch lead to be used with In car Tec 29- series steering wheel control interfaces. This cable plugs into the 29-Series control box and connects to the 3.5mm socket or single wire on the back of the new head-unit.

Suitable for Use with Alpine, Clarion, JVC, Kenwood, Pioneer, Sony, Zenec, Philips, Dynavin and non branded Chinese head units.

Important Fascia:

• The fascias are made to suit industry standard sized stereos such as Alpine, JVC, Kenwood, Pioneer, Sony etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
