Complete stereo upgrade kit to install a double din aftermarket radio in a 2008 - 2015 Skoda Superb with original Swing or Bolero radios and retain the use of the original steering wheel audio control buttons.

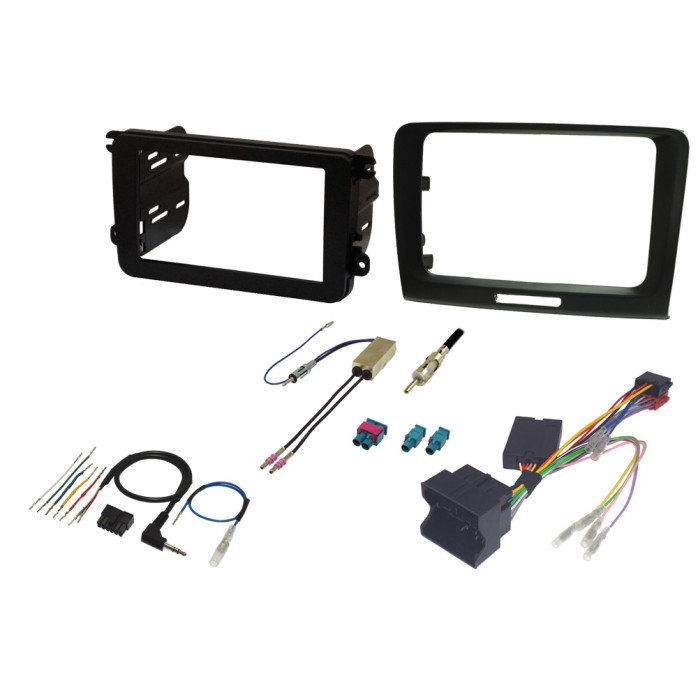

This fitting kit comes with two separate fascias, the first (left main image) mounts the new aftermarket radio into the dashboard and the second (right main image) finishes off the installation, filling out the gaps between the left hand fascia and the rest of the dashboard. An image of a radio fitted is below.
The fascia is supplied with side mounting brackets so no additional radio fitting cage is required.

Package Includes:

• Fascia Adaptor Panels
• Radio Adaptor Cable
• CAN BUS Steering Wheel Control Interface
• Antenna Adaptor Cable
• Universal patch lead (Included)

Fascia Adaptor:

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Steering Control Adaptor:

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

The CANbus steering wheel control interface is built in to the adapter cable.
This interface will allow the original audio control buttons on the steering wheel to work with the new aftermarket radio. The interface will work the volume, track skip, source, mute and phone buttons.
The CANbus interface will also provide a key present ignition, illumination, speed pulse, reverse gear and handbrake outputs. A key present ignition means the stereo will turn on with the first click of the key and stay on until the key is removed from the ignition barrel.

Antenna Adaptor

A double Fakra to DIN antenna adapter is included in the kit. This adapts from the original antenna connector in the car to a standard aftermarket DIN antenna connection.

Universal Patch Lead

A universal patch lead is supplied in the kit, this is to pair the steering control interface to the steering control input of Alpine, Clarion, JVC, Kenwood, Pioneer and Sony head units.

FOR UNBRANDED/ CHINESE HEAD UNITS YOU WILL REQUIRE A DEDICATED 49-000 PATCH LEAD

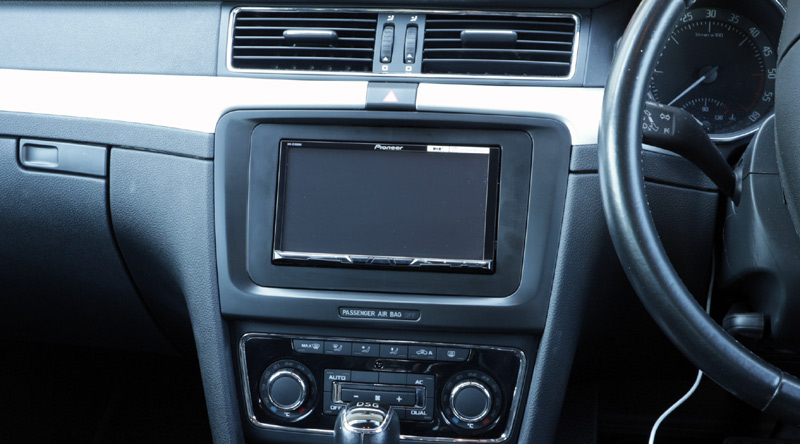

Below is an image of a radio fitted using this kit.

Important Fascia Notes

• The fascias are made to suit industry standard sized stereos such as Pioneer, Kenwood, Sony, Alpine, JVC etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.

Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection & Shape in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
