Complete stereo upgrade fitting kit to install a Double DIN aftermarket radio in various Volkswagen cars,

This kit also fits various Skoda and Seat cars.
Suitable for Skoda Superb cars with the original Columbus navigation radio.

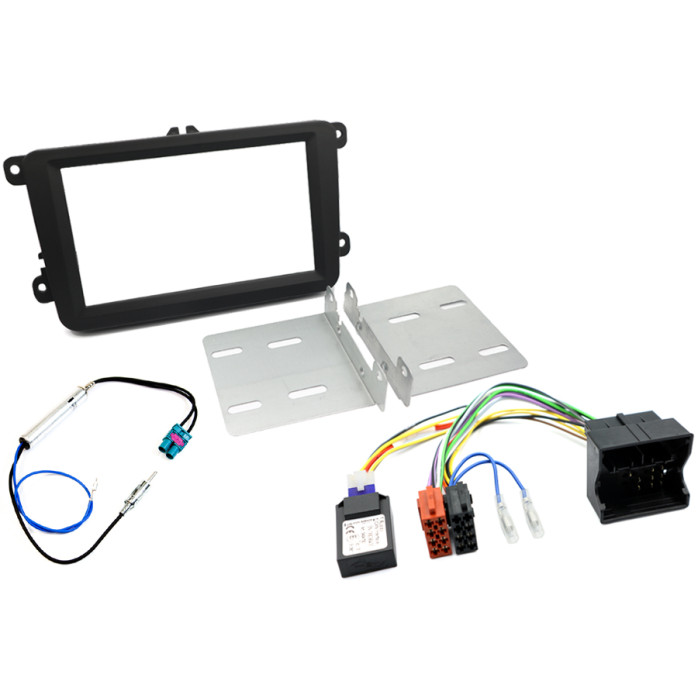

Package Includes

• Double Din Flush Fit Fascia Adaptor With Side Fixing Brackets
• Quadlock to ISO Radio Adaptor Harness, With CANBus Ignition
• Double Fakra Antenna Adaptor

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

This fascia kit uses side fixing brackets, the brackets fit directly to the sides of the new radio and the fascia panel. This replaces the need for a fitting cage and gives a flush professional appearance to the installation.

Quadlock to ISO Radio Adaptor Harness With CANBus Ignition

The interface generates a key present ignition supply so no extra ignition feed needs to be provided. The key present ignition feature will continue to give an ignition supply until the key is removed from the ignition barrel.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

Double moulded Fakra Aerial adapter cable for European cars that have amplified original antennas. Use with cars that have twin antenna both requiring power.

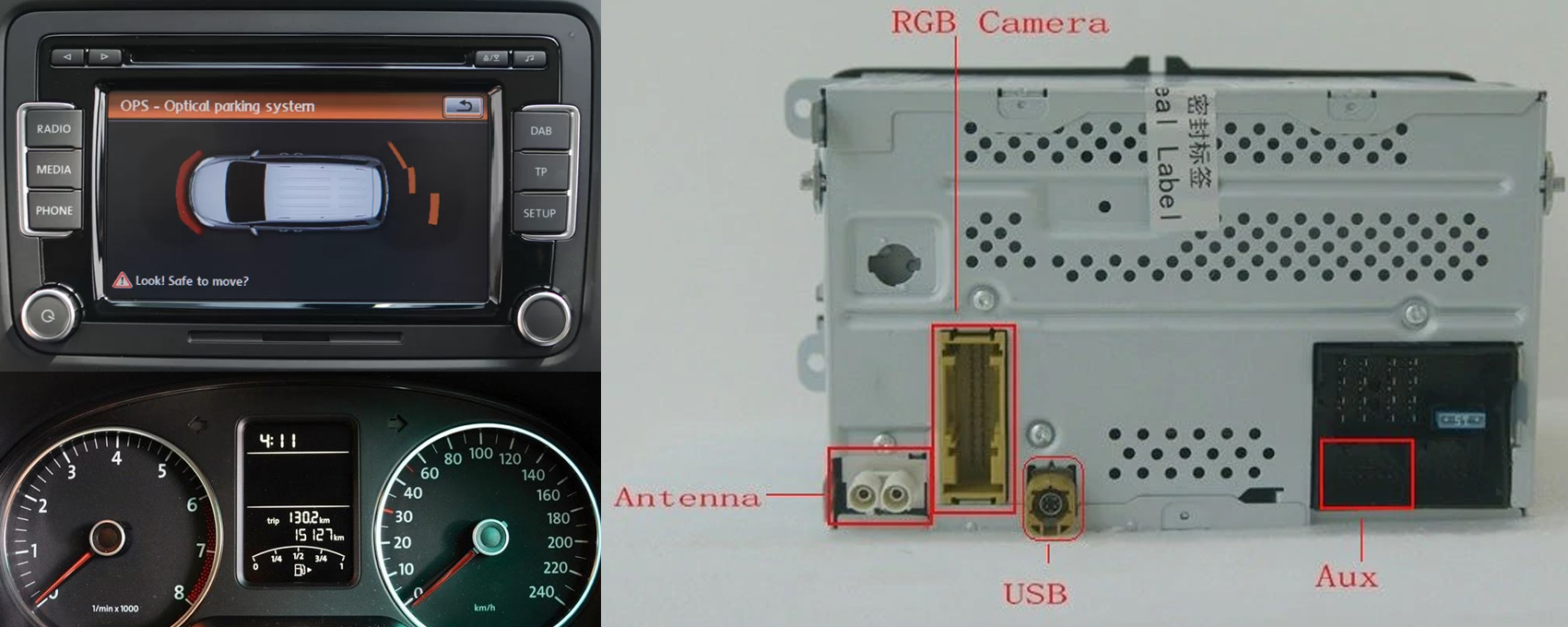

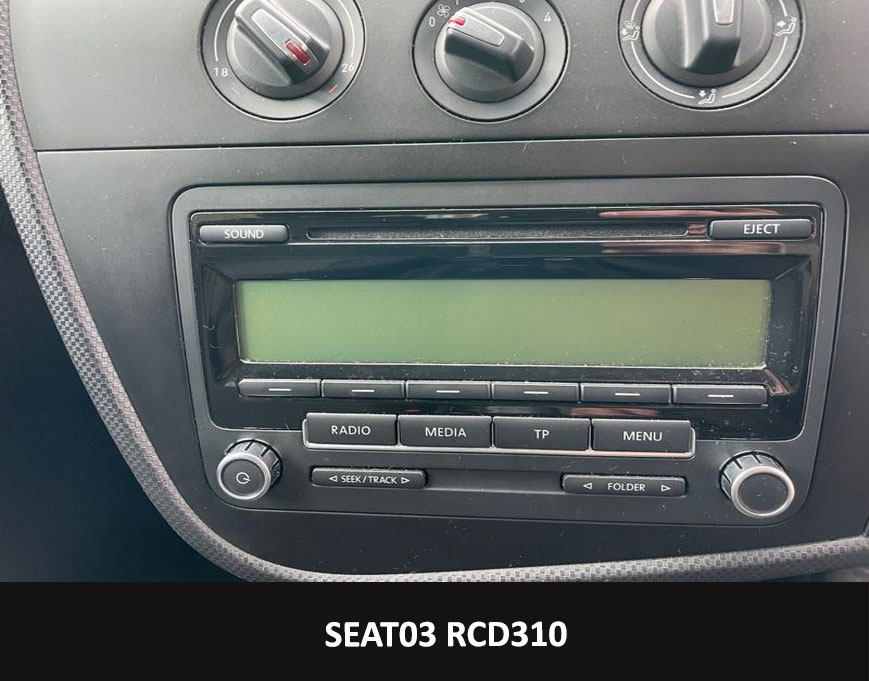

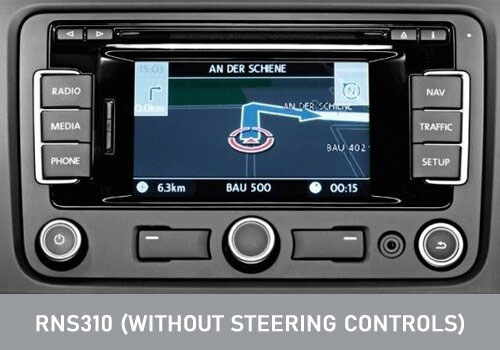

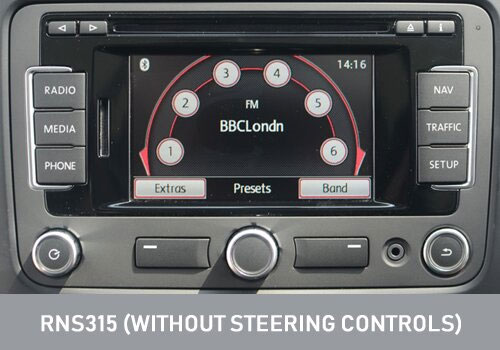

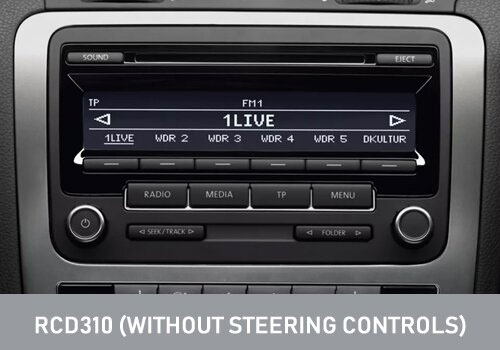

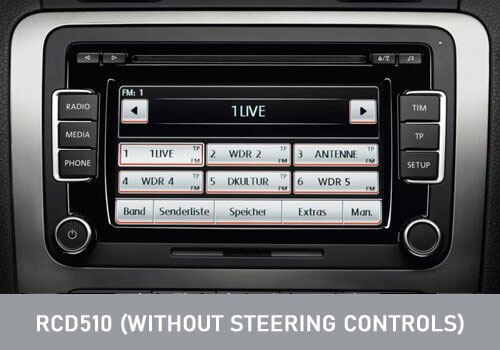

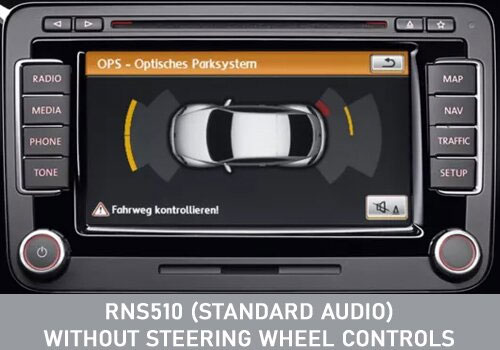

This fitting kit is compatible with Volkswagen original head units fitted with a double Fakra connection, Please see pictures below.

Please Note

that some vehicles have original DAB. This is not retained with this kit and will require 21-037 Fakra to SMB adapter.

This kit does not retain original reverse cameras or USB and AUX ports. Please see the other items listed against your car and original head unit to see if these are available as they vary by model and originally fitted radio.

Not suitable for original amplified systems (Dynaudio, Fender) Please use FK-699-SWC2-D for these models.

PLEASE NOTE:

THIS KIT DOES NOT RETAIN STEERING WHEEL CONTROLS. PLEASE USE KIT FK-699-SWC1-D TO RETAIN STEERING WHEEL CONTROL FUNCTIONS

Important Fascia Notes

• The fascias are made to suit industry standard sized stereos such as Pioneer, Kenwood, Sony, Alpine, JVC etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.

Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection & Shape in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
