Complete stereo upgrade fitting kit to install a Double DIN aftermarket radio in various Volkswagen cars

This kit also fits various Skoda and Seat cars.
Suitable for Skoda Superb cars with the original Columbus navigation radio.

This is an alternative product to FK-699-SWC1-D

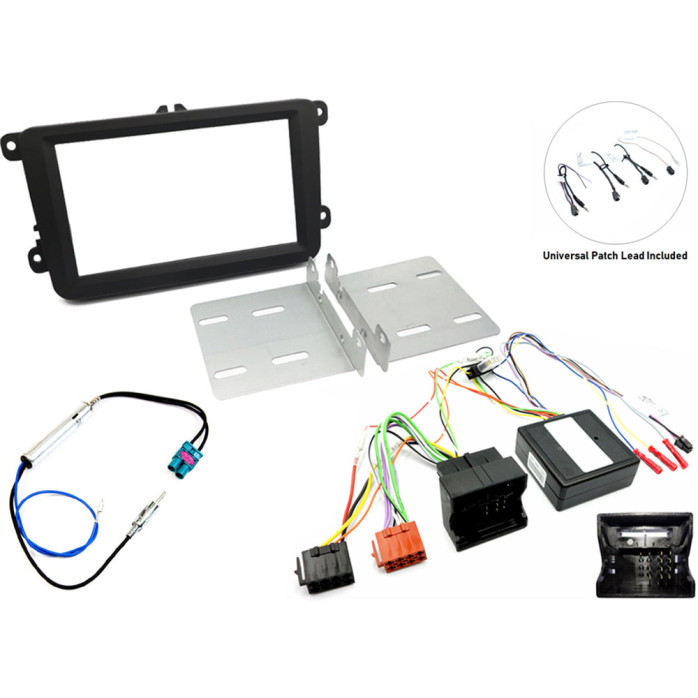

Package Includes

• Double Din Flush Fit Fascia Adaptor With Side Fixing Brackets
• Radio Replacement Steering Wheel Adaptor Interface
• Double Fakra Antenna Adaptor
• Universal patch lead (Included)

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

This fascia kit uses side fixing brackets, the brackets fit directly to the sides of the new radio and the fascia panel. This replaces the need for a fitting cage and gives a flush professional appearance to the installation.

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

Steering wheel control interface and adapter cable for Volkswagen, Seat and Skoda cars to fit an aftermarket radio upgrade.

The cable adapts from the Quadlock connector in the car to standard aftermarket ISO connectors. This replaces the need for a separate ISO radio replacement adapter cable.

The CANbus steering wheel control interface is built in to the adapter cable for a plug and play installation.

This interface will allow the original audio control buttons on the steering wheel to work with the new aftermarket radio. The interface will work the volume, track skip, source, mute and phone buttons. Note; the operation of these buttons can be dependent on the vehicle specification and radio compatibility.

The CANbus interface will also provide a key present ignition, illumination, speed pulse, reverse gear and handbrake outputs. A key present ignition means the stereo will turn on with the first click of the key and stay on until the key is removed from the ignition barrel.

No radio information will be shown on the original display in the car

This is an alternative product to 49-VW-01

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

Double Fakra to DIN antenna adapter cable with 12v phantom power. This antenna adapter cable adapts from the original Double Fakra connector in the vehicle to a standard aftermarket radio DIN antenna connection for the fitting of a stereo upgrade.

Universal Patch Lead

Patch cable set to connect a UNICAN interface between an after market head unit and the steering wheel controls. Can be used with Alpine, Kenwood, JVC (single wire), Pioneer, Sony and Chinese/Resistive learning head units with either two wires or a 3.5mm jack.

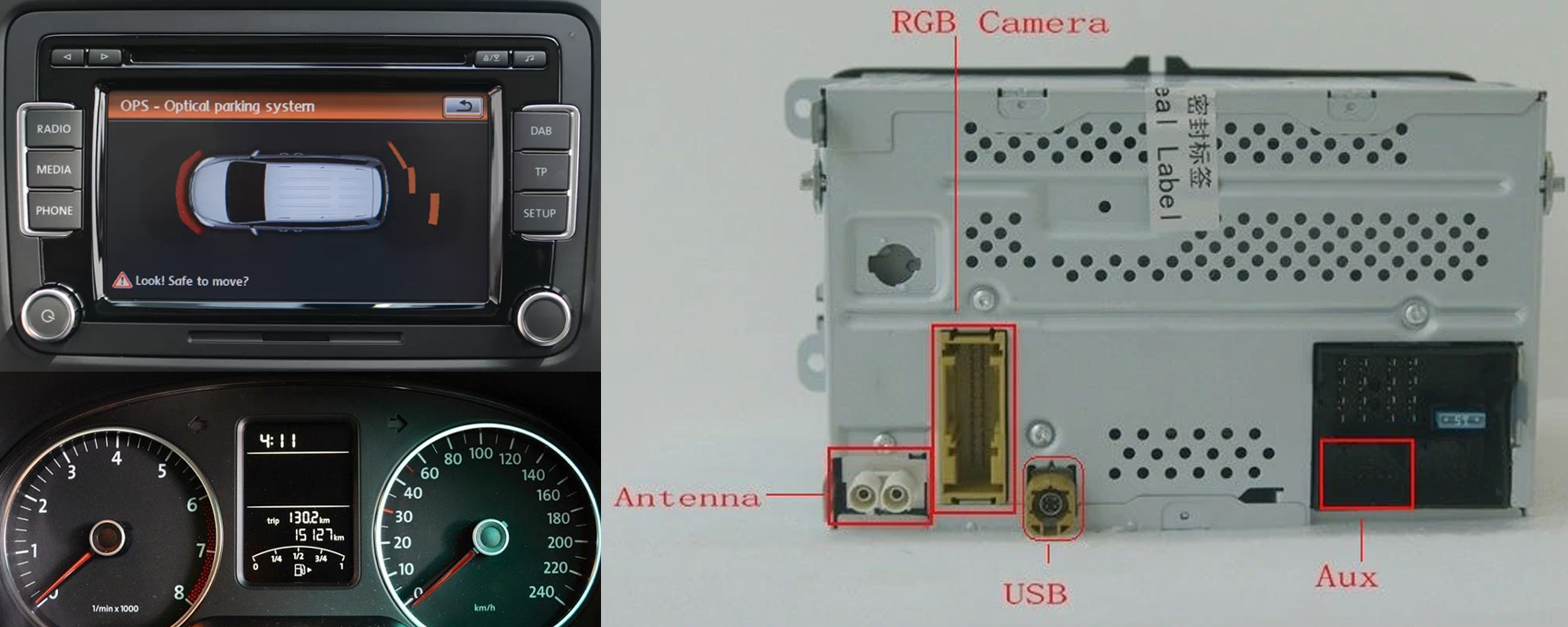

This fitting kit is compatible with Volkswagen original head units fitted with a double Fakra connection, Please see pictures below.

that some vehicles have original DAB. This is not retained with this kit and will require 21-037 Fakra to SMB adapter.

This kit also does not retain original reverse cameras or USB and AUX ports. Please see the other items listed against your car and original head unit to see if these are available as they vary by model and originally fitted radio.

Not suitable for original amplified systems (Dynaudio, Fender) Please use FK-699-SWC2-D for these models.

This kit also fits various Skoda and Seat cars.
Suitable for Skoda Superb cars with the original Columbus navigation radio.

Important Fascia Notes

• The fascias are made to suit industry standard sized stereos such as Pioneer, Kenwood, Sony, Alpine, JVC etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.

Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection & Shape in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
