Complete stereo upgrade fitting kit to install a Double DIN aftermarket radio and retain the use of the steering wheel controls in select Mercedes vehicles with factory fitted NTG1 systems and Quadlock Connection.

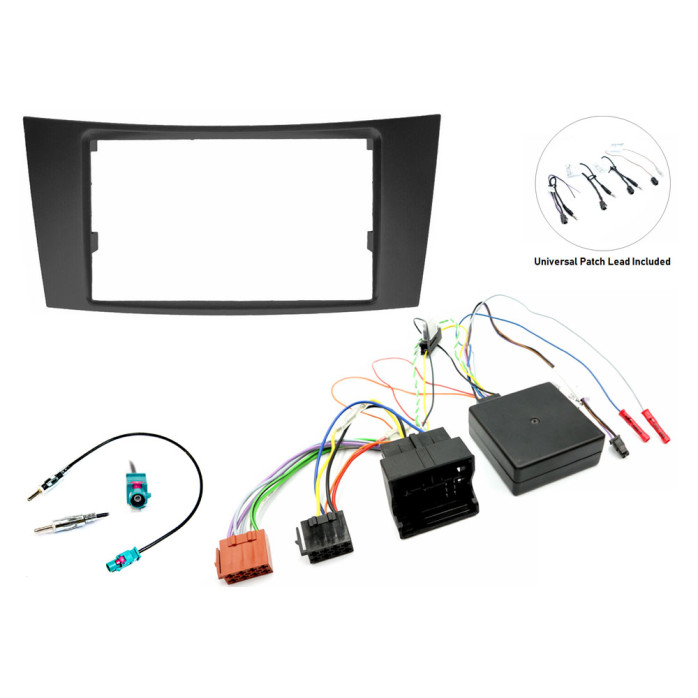

Package Includes

• Double Din Fascia (MATT BLACK)
• Steering Control Interface
• Fakra to Din Antenna Adaptor
• Universal patch lead (Included)

Suitable for models with standard NTG1 original radios and non amplified audio systems

This fitting kit is not suitable for Cars with original Harman/Kardon amplified audio systems. These will require an additional interface to retain the audio with the original amplifier.

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Replacement car audio fascia to enable you to change the original radio in the car to a Double DIN aftermarket version Fits Mercedes Benz E-Class (W211) (2002-2008) car models.

This kit uses the 113mm high cage supplied with after market double DIN radios to fit , if this is missing then our cage with part number 51-013 is suitable.

COLOUR: MATT BLACK

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

The cable adapts from the Quadlock connector in the car to standard aftermarket ISO connectors. This replaces the need for a separate ISO radio replacement adapter cable.

This interface will allow the original audio control buttons on the steering wheel to work with the new aftermarket radio. The interface will work the volume and track skip buttons.

The CANbus interface will also provide ignition, illumination, reverse gear, handbrake and speed pulse outputs. This interface is supplied with a universal patch lead. This links the steering control interface to the steering wheel control input on the back of the new stereo.

This is an alternative to 39-MB-A20NTG1

This interface is only suitable for cars with original basic NTG1 radios. Cars with the upgraded COMAND APS NTG1 radio will require a different interface.

The motorized ashtray on W211 cars will no longer work when you change the original radio

Cars with original harman/kardon amplified audio systems will require an additional interface to retain the audio with the original amplifier.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

Male Fakra to Male DIN antenna adapter cable. This cable adapts from a Farka antenna connection at the back of the cars original radio to a standard aftermarket DIN antenna connection to allow the fitting of an aftermarket radio upgrade. This is a passive adapter cable, not suitable for cars that need a phantom power supply to turn on the antenna amplifier.

UNICAN Patch Lead

Patch cable set to connect a UNICAN interface between an after market head unit and the steering wheel controls. Can be used with Alpine, Kenwood, JVC (single wire), Pioneer, Sony and Chinese/Resistive Programmable head units with either two wires or a 3.5mm jack.

Important Fascia:

• The fascias are made to suit industry standard sized stereos such as Alpine, JVC, Kenwood, Pioneer, Sony etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
