Complete fitting kit to install a Single/ Double DIN head unit and retain the original steering wheel controls in Lexus RX (2003-2009) vehicles with factory fitted Mark Levinson Navigation systems. This fitting kit will also retain use of the top screen for both navigation and air con visualisation when fitting an after market radio.
Kit includes a amplifier bypass cable for Lexus RX (XU30) built between 2003 - 2009 with original Mark Levinson Sound System. This allows you to connect a new aftermarket radio directly to the cars speakers after bypassing the original amplifier which is under the rear seat.

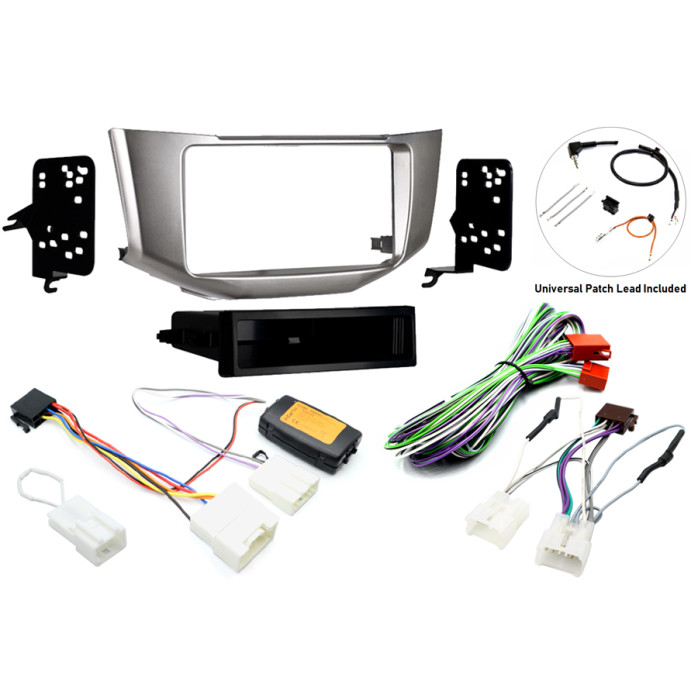

Package Includes

• Single/ Double DIN fascia (Silver)
• Steering Wheel Control Interface
• Screen Retention Resistive Loop
• Mark Levinson Amplifier Bypass Cable
• Universal patch lead (Included)

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

This fascia kit uses side fixing brackets, the brackets fit directly to the sides of the new radio and the fascia panel.
A removable pocket is included for Single DIN installation

Fascia gap size: 172mm x 98mm

Fits Lexus RX350/400H (2003-2009) car models

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

Car Audio Steering wheel interface and ISO cables allowing use of original buttons with a new aftermarket head-unit. Includes ISO power to connect the car to the aftermarket head-unit. This steering wheel controls interface does not include speaker wiring and is designed for use with an amplifier bypass cable. Use amplifier bypass part 20-315 for 2003 - 2006 models and part 20-318 for 2007 - 2009 models.
This interface will retain the use of the steering wheel audio controls with an aftermarket head unit, and retains the top screen on 07-09 models without navigation. For all 2003 - 2006 models and 2007 - 2009 models with navigation use with part 20-220 to retain the top screen.
Suitable for Lexus RX350 and RX400H 2003 - 2009 with Mark Levinson Sound.

This interface includes PHONE commands for compatible Bluetooth head-units

Screen Retention Resistive Loop

Lexus RX resistive loop to retain the top screen on all Lexus RX (XU30) built between 2004 - 2006 and models built between 2003 - 2009 with navigation.
Retains use of the top screen for both navigation and air con visualisation after an after market radio has been fitted. For models with a 12 pin plug in the original radio.

Mark Levinson Amplifier Bypass Cable

Amplifier bypass cable for Lexus RX (XU30) built between 2003 - 2009 with original Mark Levinson Sound System
Allows you to connect a new aftermarket radio directly to the cars speakers after bypassing the original amplifier which is under the rear seat.
This bypass cable comes with a 5m speaker extension to extend from the radio to the amplifier under the rear seat.

Universal Patch Lead

Universal patch lead to be used with In car Tec 29- series steering wheel control interfaces. This cable plugs into the 29-Series control box and connects to the 3.5mm socket or single wire on the back of the new head-unit.
Suitable for Use with Alpine, Clarion, JVC, Kenwood, Pioneer, Sony, Zenec, Philips, Dynavin and non branded Chinese head units.

Important Fascia Notes

• The fascias are made to suit industry standard sized stereos such as Pioneer, Kenwood, Sony, Alpine, JVC etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.

Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection & Shape in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
