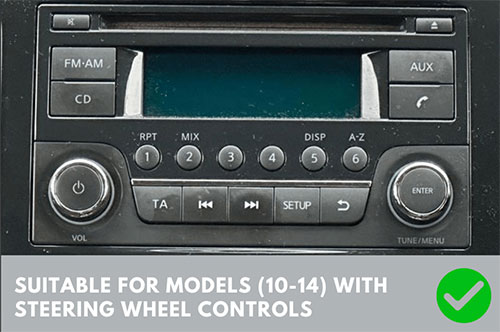

Complete stereo upgrade fitting kit to install a Double DIN aftermarket radio and retain the use of the steering wheel controls in Nissan Juke (2010-2014) car models.

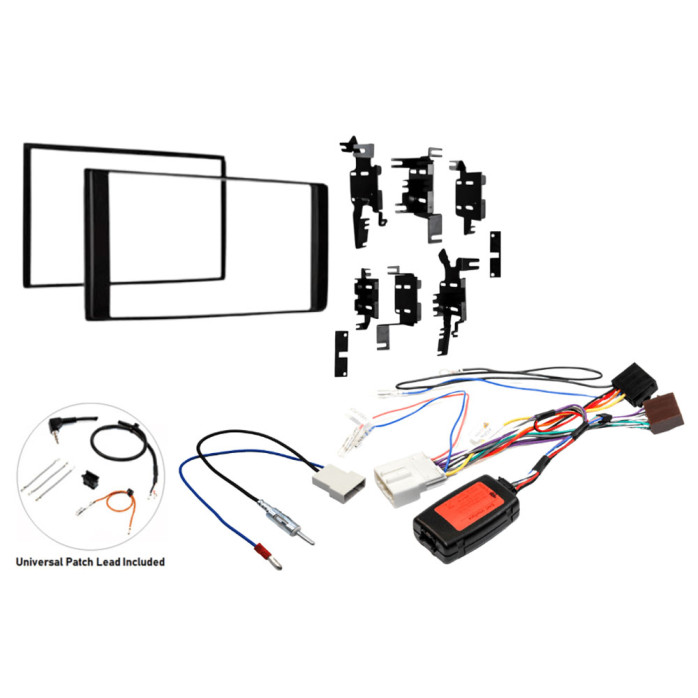

Package Includes

• Double Din Fascia (Matt Black)
• (20 pin) Steering Wheel Control Interface
• Rectangle to Din Car Aerial Antenna Adapter Cable
• Universal patch lead (Included)

Fascia Adaptor

Replacement car audio fascia to enable you to change the original radio in the car to a Double DIN aftermarket version  This fascia adapter allows the fitting of an aftermarket radio into the cars dashboard by matching the shape, style, size and colour of the original OEM factory fitted radio.

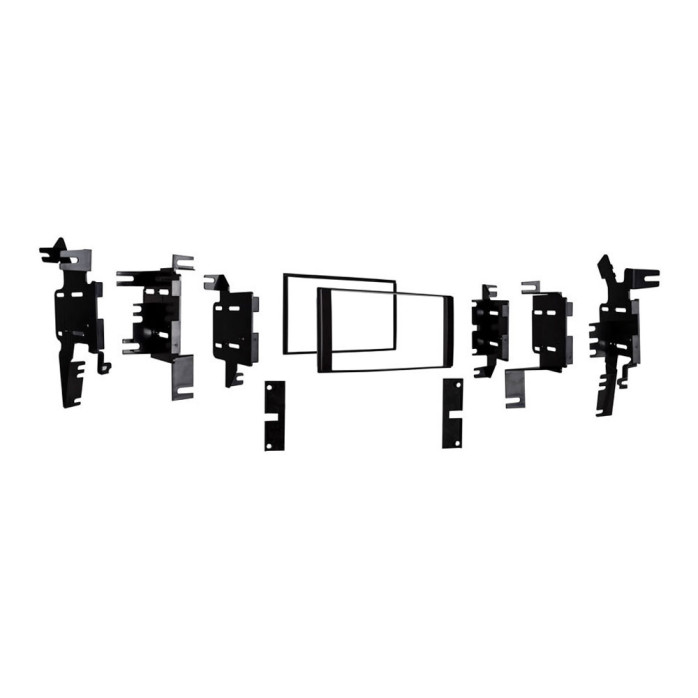

This fascia kit uses side fixing brackets, the brackets fit directly to the sides of the new radio and the fascia panel.

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

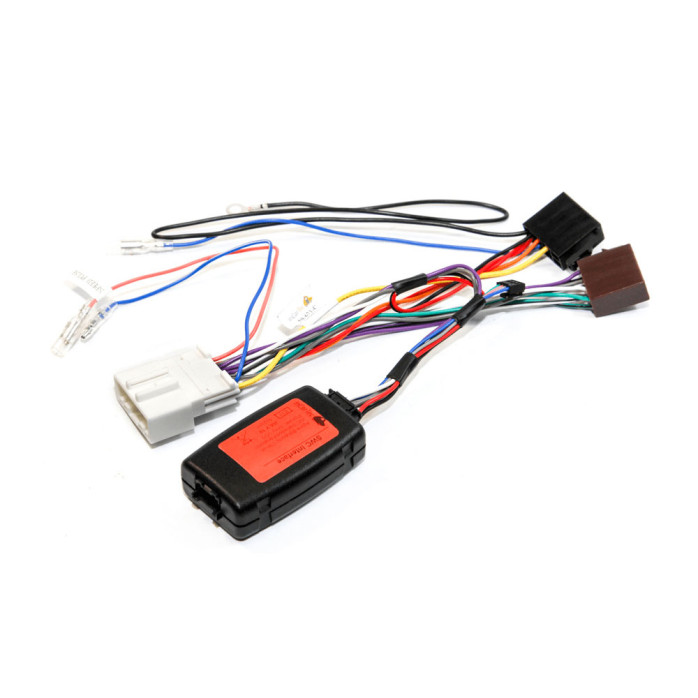

Steering wheel control interface and adapter cable for Nissan Juke cars to fit an aftermarket radio upgrade. The cable adapts from the 20 pin Nissan connector (the connector has a larger size terminal at either end of the connector) in the car to standard aftermarket ISO connectors. This replaces the need for a separate ISO radio replacement adapter cable.

This interface will allow the original audio control buttons on the steering wheel to work with the new aftermarket radio. The interface will work the volume, track skip, source, phone and preset skip buttons. (8 function steering wheels)

Installation notes

• Connect male ISO(S) of the steering wheel control interface to the female ISO(S) of the aftermarket radio lead/head unit
• Loose black wire - Connect the radio ground earth ring to the vehicles chassis ground
• Loose pink wire - Connect the pink wire to the speed pulse connector on the aftermarket radio (Not all radios have this, please check manufacturers instructions)
• Loose blue wire (Amplifier turn-on) - This is only required on amplified systems such as BOSE. If your system is amplified this loose blue wire will need to be connected to the amplifier turn on cable on our amplifier integration interface, part number 20-273 (SOLD SEPERATELY)
• Loose blue wire (Antenna turn-on) - This needs to be connected to the antenna turn on cable on the antenna adapter cable. We would recommend using our interface with a Nissan antenna adapter With male bullet connection, our part number 21-118K (SOLD SEPERATELY)

Rectangle to Din Car Aerial Antenna Adapter Cable

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

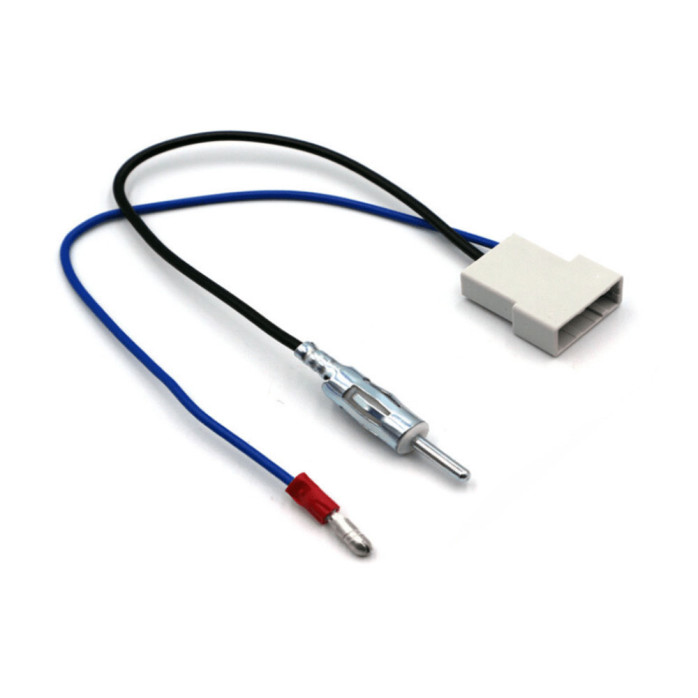

Nissan (grey rectangle female antenna to male DIN connection) car aerial antenna adapter cable. This cable adapts from the grey plastic rectangle Nissan antenna connector in the car to a standard aftermarket male DIN connector, used when fitting a new aftermarket stereo.

Connection options

Option 1

This requires connecting the loose blue wire (male bullet connector) on the antenna adapter to the antenna turn-on wire (Female bullet connection) on our 29- Series steering wheel control interface.

• Connect the vehicle specific connector to the original AM/ FM antenna connection in the car.
• Connect the DIN aerial connection to the back of the after market radio.
• Connect the bullet connector (on the blue wire) to the blue antenna turn on wire on the 29-Series interface.

Option 2

This requires connecting the loose blue wire (male bullet connector) on the antenna adapter to the antenna turn-on wire (Female bullet connection) on the new aftermarket radio harness.

• Connect the vehicle specific connector to the original AM/ FM antenna connection in the car.
• Connect the DIN aerial connection to the back of the after market radio.
• Connect the bullet connector (on the blue wire) to the blue antenna turn on wire, or the blue/white remote turn on wire coming from the new aftermarket radio harness.

COLOUR: MATT BLACK

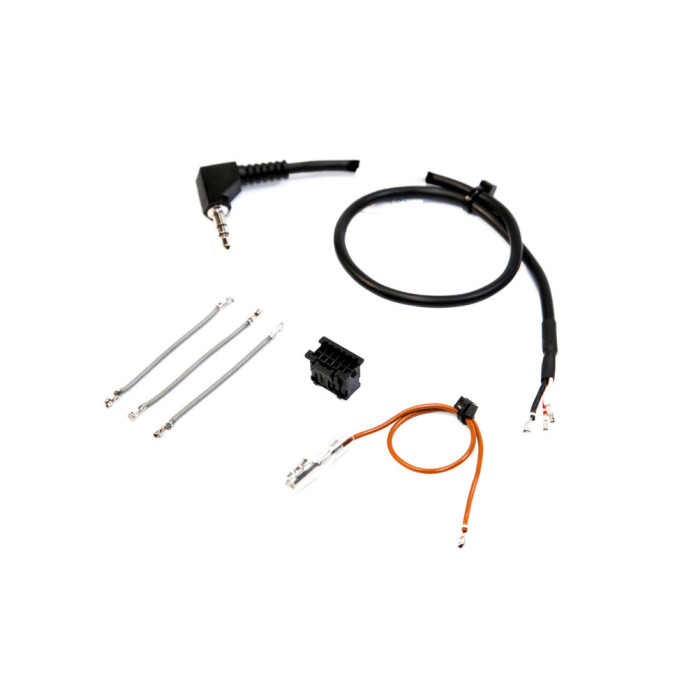

Universal Patch Lead

Universal patch lead to be used with In car Tec 29- series steering wheel control interfaces. Use for Alpine, Clarion, JVC, Kenwood, Pioneer, Sony, Zenec, Philips, Dynavin and non branded Chinese head units.

Important Fascia:

• The fascias are made to suit industry standard sized stereos such as Alpine, JVC, Kenwood, Pioneer, Sony etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
