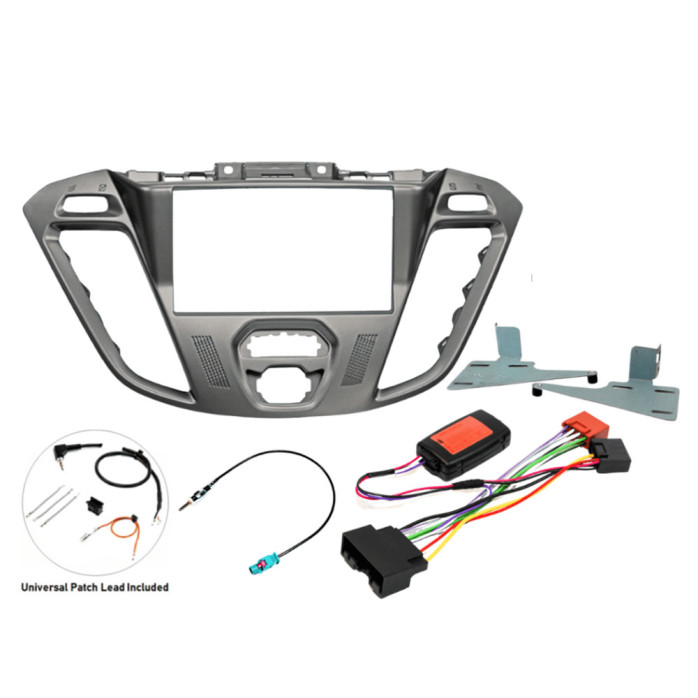

Complete fitting kit to install a Double DIN aftermarket car stereo head unit and retain use of the factory steering wheel controls in select Ford Transit Custom (2012-2018) Base model vehicles (without a display above the radio)

Package Includes

• Double Din Fascia Phoenix Silver With Brackets
• Steering wheel control interface
• Fakra to DIN Antenna Adaptor
• Stereo Patch lead (Included)

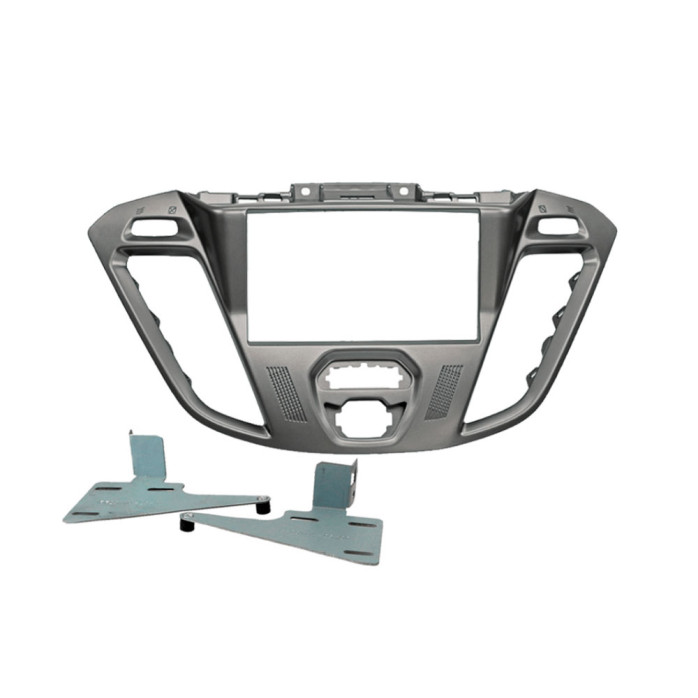

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Fascia kit to install a double din after market radio. This kit comes with side fix mounting brackets, no fitting cage is needed. Grey colour, also called Phoenix Silver, usually found on the Base models.

The fitting of this fascia requires plastics to be cut behind the dashboard, we recommend this is done be an experienced car audio technician. Extra install time needs to be allowed for to perform the modification.

Fitting instructions are included.

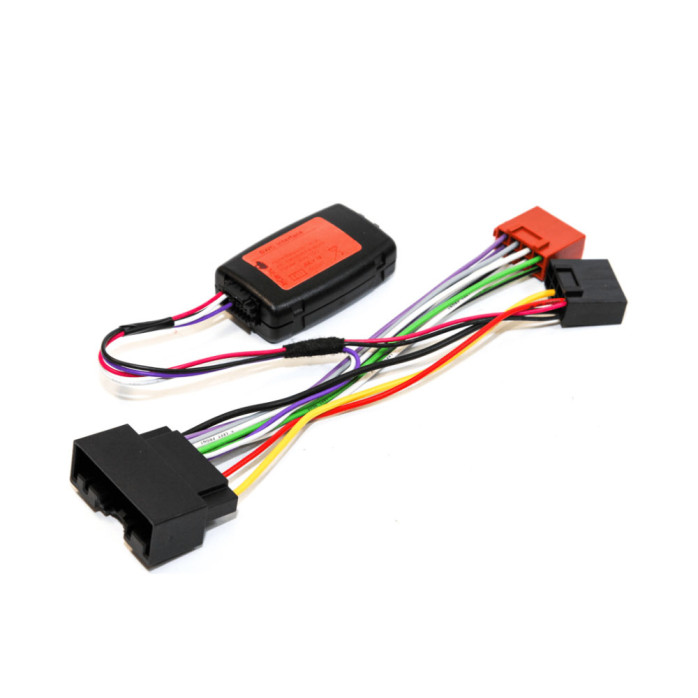

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

Steering wheel control interface and adapter cable for Ford Transit, Transit Custom and Transit Connect vans without a separate  display above the radio.

The interface and radio adapter cable is plug and play, it is used to connect an aftermarket stereo upgrade and retain the use of the volume, track skip and source buttons from the steering wheel with the new radio.

ONLY SUITABLE FOR TRANSIT RADIOS WITHOUT THE DISPLAY ON TOP OF THE DASH

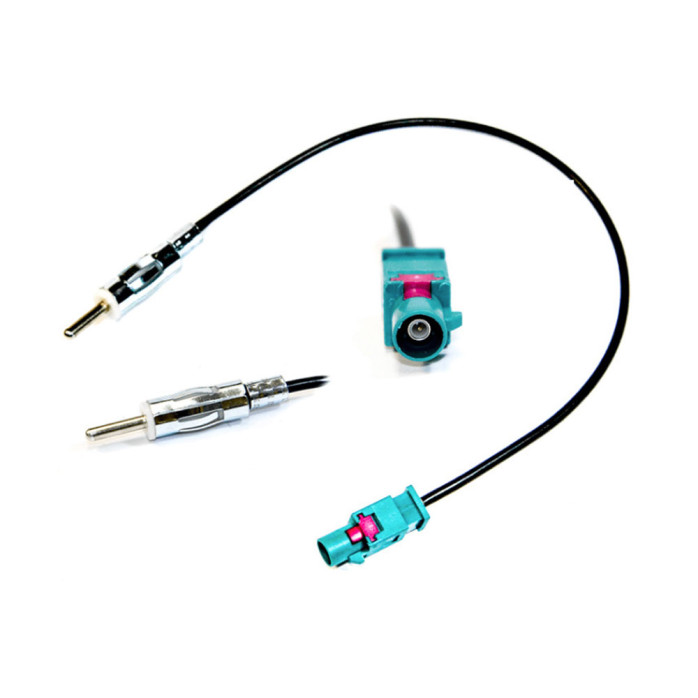

Fakra to Din Antenna Adaptor Cable

Male Fakra to Male DIN antenna adapter cable. This cable adapts from a Farka antenna connection at the back of the cars original radio to a standard aftermarket DIN antenna connection to allow the fitting of an aftermarket radio upgrade.

This is a passive adapter cable, not suitable for cars that need a phantom power supply to turn on the antenna amplifier.

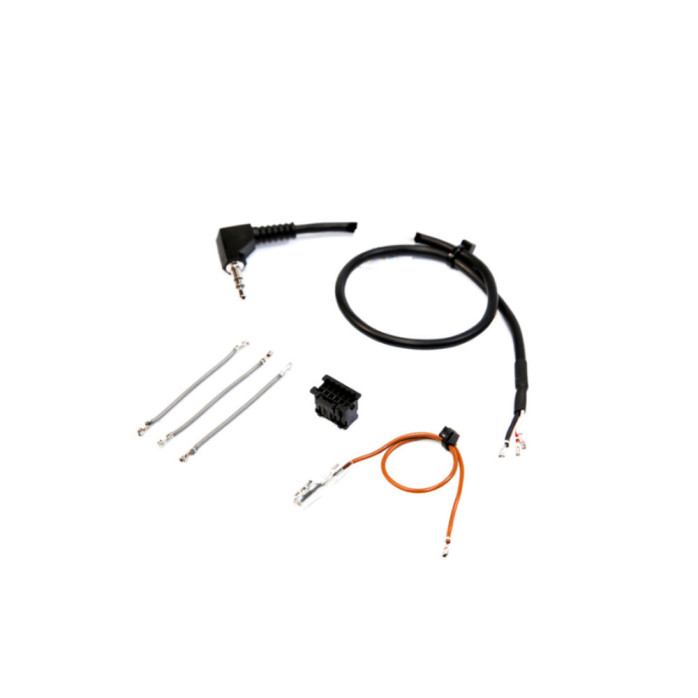

Universal Patch Lead

Universal patch lead to be used with In car Tec 29- series steering wheel control interfaces.

Use for Alpine, Clarion, JVC, Kenwood, Pioneer, Sony, Zenec, Philips, Dynavin and non branded Chinese head units.

Ford Transit Custom Base Model

Base models of the Ford Transit Custom come with a Medialess radio which has no display on top of the central dashboard. These Medialess radio models come with an external AUX connection, Bluetooth, Hands-free phone and voice control system with USB/ Ipod connectivity port, steering wheel controls and two front speakers.

Important Fascia:

• The fascias are made to suit industry standard sized stereos such as Alpine, JVC, Kenwood, Pioneer, Sony etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
