Upgrade your Ford Transit Custom with this complete fitting kit designed for seamless installation of a Double DIN aftermarket car stereo head unit. This kit is specifically engineered for the Limited and Sport model variants (2012-2018), featuring the display above the radio, DAB, and front passenger airbag switch on the factory radio.

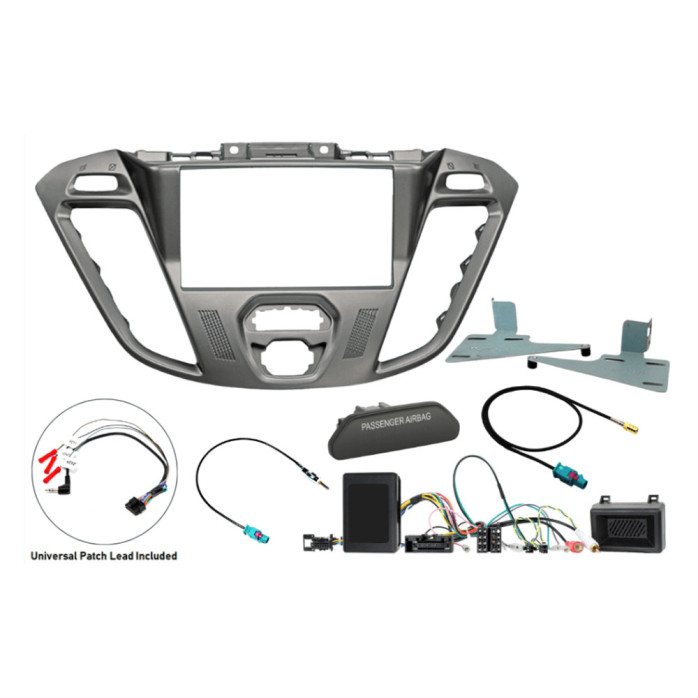

Package Includes

• Double Din Fascia With Brackets (MATT GREY/ PHOENIX SILVER)
• Steering Control Interface with OEM Display
• Male Fakra to DAB Retention Cable
• Fakra to DIN Antenna Adaptor
• Ford Passenger Airbag Button
• Universal patch lead (Included)

Key Features

Steering Wheel Control Retention: Maintain full functionality of your factory steering wheel controls, including volume, track change, and more.

Parking Sensor Audio: Retain your parking sensor audio alerts after installing the new stereo system.

Time and Date Adjustments: Easily adjust time and date directly from the steering wheel, adding convenience and functionality.

CAN Ignition & Speed Pulse: Essential for seamless integration with navigation systems, allowing for speed pulse and ignition connections.

DAB Retention Cable: This kit includes a DAB retention cable that converts the original Fakra DAB antenna connector to a female SMB connector, ensuring you can keep the factory DAB aerial, a standard feature on Euro 5 Limited and Sport model variants.

Passenger Airbag Light Assembly: The kit includes a Ford OEM passenger airbag light assembly button, preventing airbag warning lights from appearing on your dashboard after the radio change. This part is required for vehicles with the airbag status light integrated into the original radio, found on Limited and Sport model variants.

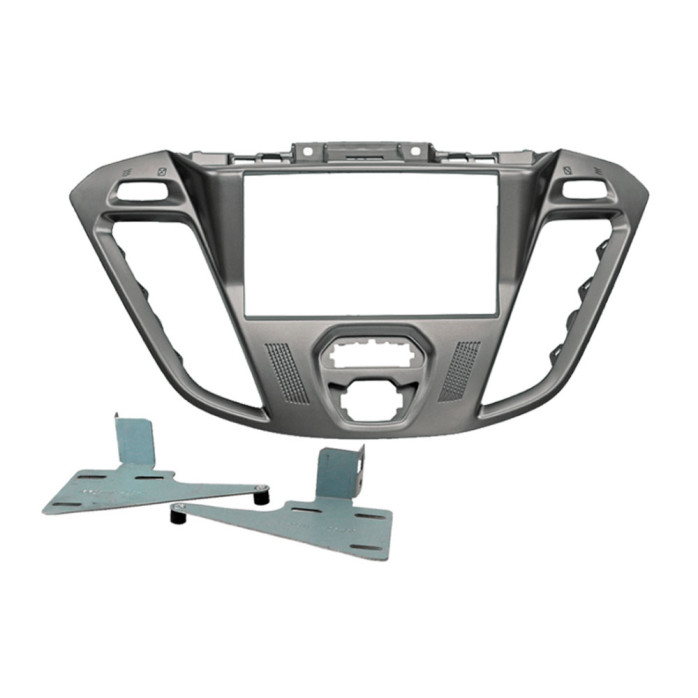

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Fascia kit to install a double din after market radio. This kit comes with side fix mounting brackets, no fitting cage is needed.

COLOUR: MATT GREY/ PHOENIX SILVER

The fitting of this fascia requires plastics to be cut behind the dashboard, we recommend this is done be an experienced car audio technician. Extra install time needs to be allowed for to perform the modification.

Fitting instructions are included.

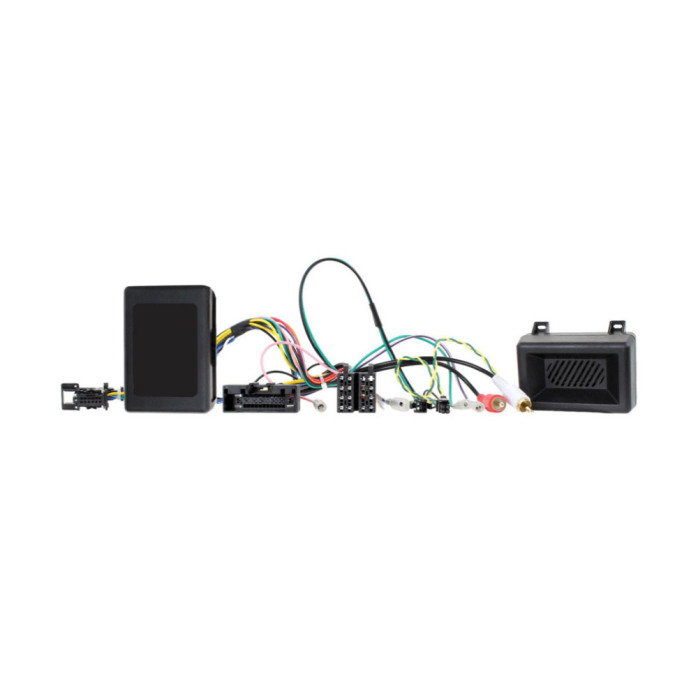

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

CAN-Bus Steering Wheel Control Interface for Ford (2012 -2018) vehicle models. Retains steering wheel controls, parking sensor audio and allows time/date change from the steering wheel.

Also maintains date, time & temperature display, OEM parking sensor audio with new  parking buzzer. Includes CAN ignition and speed pulse for Navigation systems

FOR TRANSIT RADIOS WITH THE DISPLAY ON TOP OF THE DASH

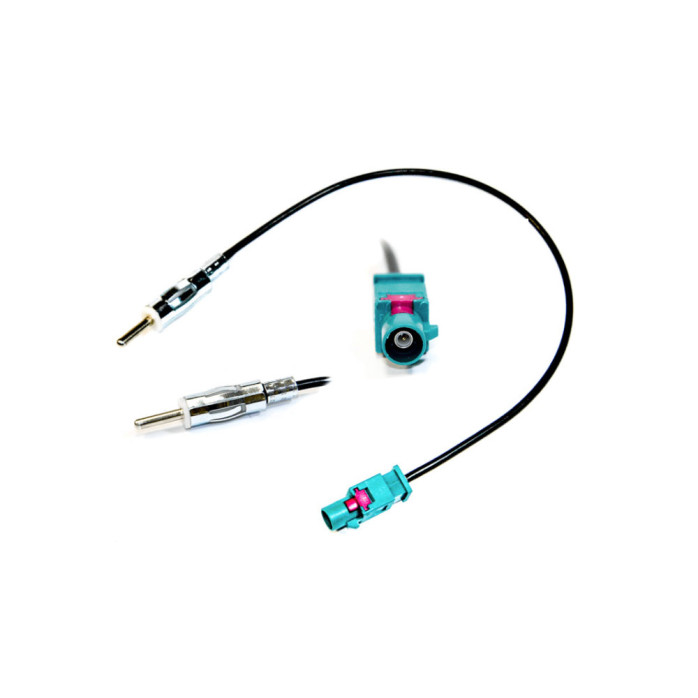

Fakra to DIN Antenna Adaptor Cable

Male Fakra to Male DIN antenna adapter cable. This cable adapts from a Farka antenna connection at the back of the cars original radio to a standard aftermarket DIN antenna connection to allow the fitting of an aftermarket radio upgrade. This is a passive adapter cable, not suitable for cars that need a phantom power supply to turn on the antenna amplifier.

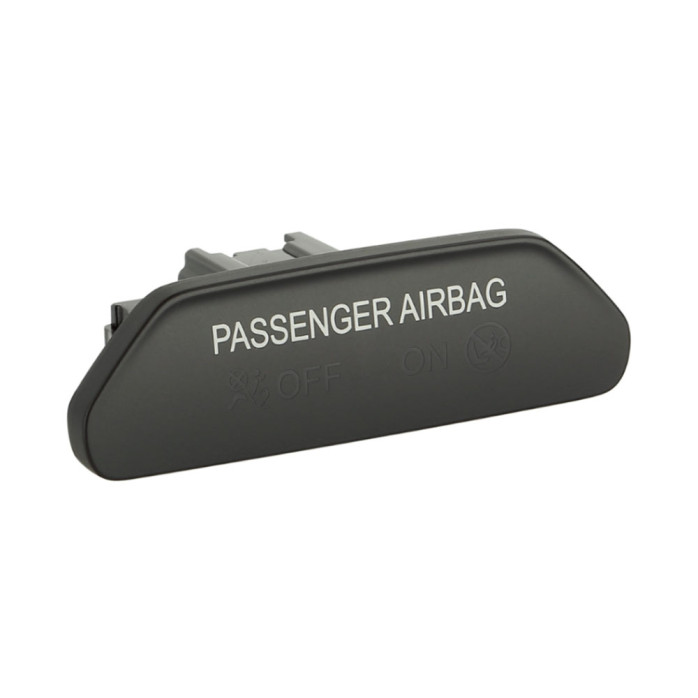

Ford OEM Passenger Airbag Light Assembly

Use when changing the radio in a Ford vehicle that has the original passenger airbag light built into the original radio.

If the van originally has an airbag status light on the radio the airbag light assembly (included in this kit) will be needed, this stops airbag warning lights appearing on the dashboard.

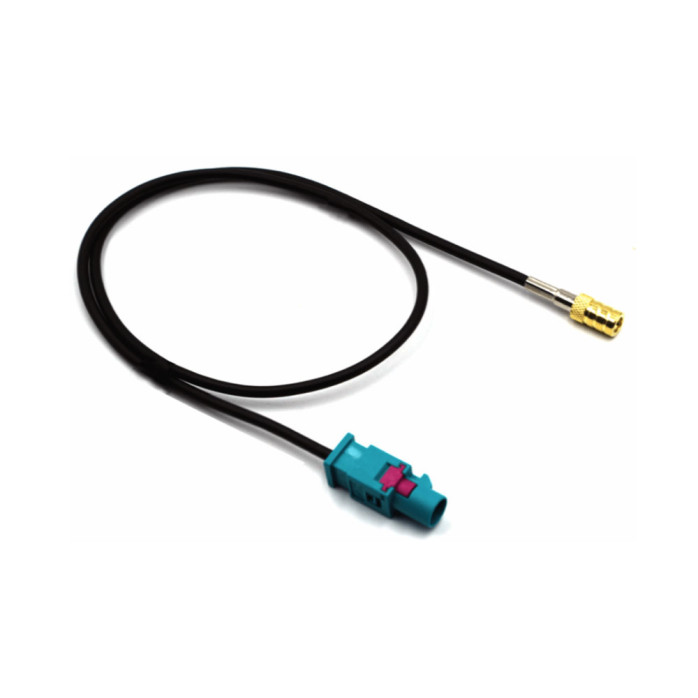

Fakra DAB Male to DAB SMB Female Antenna Adaptor

Use to convert the original (Fakra DAB) antenna connector in a car to a female SMB (used on aftermarket head-units)

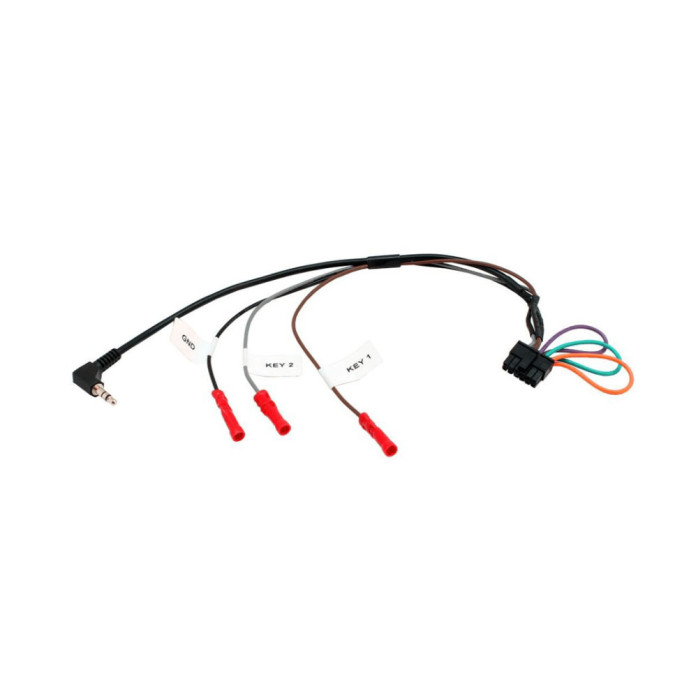

Universal Patch Lead

Universal patch lead for 29-CT series steering controls. Suitable for Alpine,  Clarion, JVC, Kenwood,  Pioneer, Sony and Chinese/ resistive programmable head-units that are steering wheel remote ready.

This cable plugs into the Steering wheel control box and into either the 3.5mm socket or single wire on the back of the head-units.

Limited and Sport Model Variants

Limited and Sport models of the Ford Transit Custom come with a Radio/ CD with DAB system with 3.5" dot matrix multifunctional display, Ford SYNC with Emergency Assistance and audio streaming, USB connectivity, Steering wheel remote audio controls and four front speakers. These models also come with front passenger airbag switch built into the original radio system.

Important Fascia:

• The fascias are made to suit industry standard sized stereos such as Alpine, JVC, Kenwood, Pioneer, Sony etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
