Complete stereo upgrade kit to install a Double DIN aftermarket radio and retain the use of the steering wheel controls in Iveco Daily (2016-2019) vehicles with original Navigation radios

Package Includes

• Double Din Fascia (Matt Black)
• CANbus Steering Wheel Control Interface
• DIN to DAB/FM Antenna Splitter
• Male Fakra to Din Antenna Adapter
• Universal patch lead (Included)

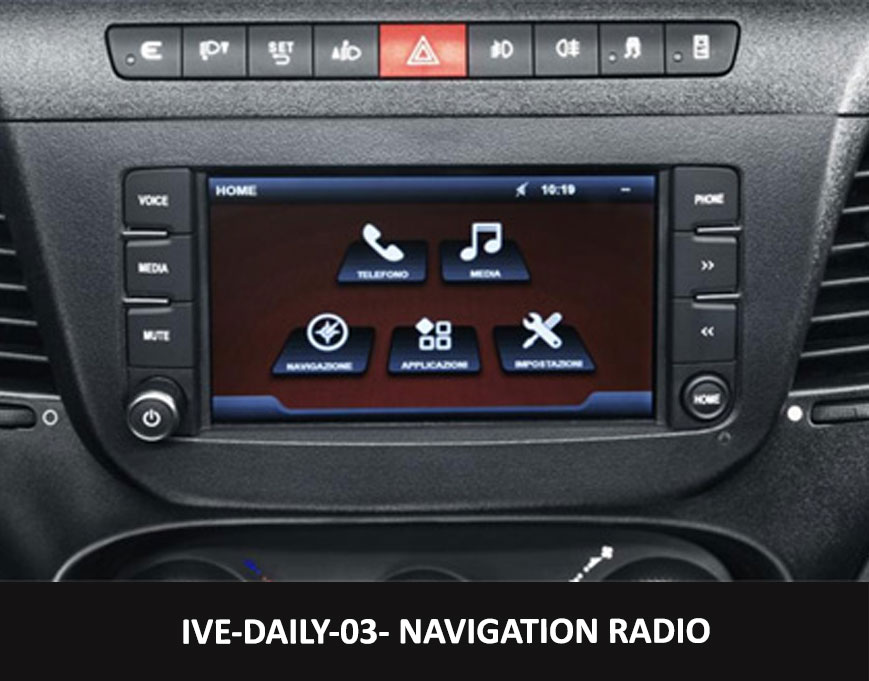

This kit is for vehicles with original Navigation radios only. Not compatible for vehicles with standard or Delphi DAB radios.

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Replacement FLUSH FIT car audio fascia to enable you to change the original radio in the car to a Double DIN aftermarket version The fascia adaptor allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio.

This fascia kit uses side fixing brackets, the brackets fit directly to the sides of the new radio and the fascia panel. This replaces the need for a fitting cage and gives a flush professional appearance to the installation.

CANbus Steering Wheel Control Interface

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

Steering wheel control interface and adapter cable for Iveco Daily vans to fit an aftermarket radio upgrade.

The cable adapts from the quadlock connector at the back of the original navigation radio to standard aftermarket ISO connectors. This replaces the need for a separate ISO radio replacement adapter cable. The CANbus steering wheel control interface is built in to the adapter cable.

This interface will allow the original audio control buttons on the steering wheel to work with the new aftermarket radio. The CANbus interface will also provide ignition, illumination, speed pulse, reverse gear and handbrake outputs to the new aftermarket stereo.

This interface is only suitable for Iveco Daily (2016-2019) vans with factory fitted navigation systems.

DIN to DAB/FM Antenna Splitter

High quality quick fix DAB antenna is for cars with DIN original antenna connectors, it can be used on other cars with the addition of an antenna adapter.

This interface amplifies the existing FM signal and extracts from it a DAB signal, splitting the existing FM antenna into both FM and DAB.

This amplifier takes a separate 12V supply feed, it can also work with the 5V phantom power supplied by most DAB units via the DAB connection. SMB connector for DAB radios.

To allow the fitting of a Double DIN stereo some plastics behind the original radio will need to be cut away. We recommend this is done by an experienced car audio technician.

Male Fakra to Din Antenna Adapter

Male Fakra to Male DIN antenna adapter cable.

This cable adapts from a Farka antenna connection at the back of the cars original radio to a standard aftermarket DIN antenna connection to allow the fitting of an aftermarket radio upgrade.

Universal Patch Lead (29-CT-025)

Universal patch lead for 29-CT series steering controls Suitable for Alpine,  Clarion, JVC, Kenwood,  Pioneer, Sony and Chinese head-units that are steering wheel remote ready. This cable plugs into the Steering wheel control box and into either the 3.5mm socket or single wire on the back of the head-units.

Important Fascia:

• The fascias are made to suit industry standard sized stereos such as Alpine, JVC, Kenwood, Pioneer, Sony etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
