Complete stereo upgrade fitting kit to install a Single or Double DIN aftermarket radio and retain the use of the steering wheel controls and original amplifier in Volvo V70 (2000-2005) car models.

Package Includes

• Fascia Adaptor Panel
• ISO Radio Adaptor Steering Control Interface
• Phono Amplifier Adaptor Cables
• Volvo to DIN Antenna Adaptor
• Universal patch lead (Included)

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

The fascia adaptor allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio.

This fascia come with its own mounting brackets and radio housing, no additional cage is needed. The fascia gives a flush mount finish. Use the supplied pocket if installing a single din radio.

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

A Volvo to ISO radio adapter cable with built in steering wheel control interface is also supplied in the kit. The cable adapts from the green and grey Volvo connectors in the car to standard aftermarket ISO connectors. A phono to 6 pin DIN adapter is also included to provide audio to the original amplifier in the car. This replaces the need for a separate ISO radio replacement adapter cable. The CANbus steering wheel control interface is built in to the adapter cable. This interface will allow the original audio control buttons on the steering wheel to work with the new aftermarket radio. The interface will work the volume, track skip and phone buttons.
The CANbus interface will also provide ignition, illumination, reverse gear, handbrake and speed pulse output signals to the new stereo.
This interface is supplied with a universal patch lead. The patch lead links the steering control interface to the steering wheel control input on the back of the new stereo.

An additional PDC retention interface (25-514-VOLVO) is required for cars that have original parking sensors.
This interface comes with a universal patch lead which can be used with Alpine, Blaupunkt, Clarion, Pioneer, JVC, Kenwood, Sony or Zenec Head-units.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

This cable adapts from the original grey Volvo antenna connector in the car to a standard aftermarket DIN antenna connector, this is used when fitting an aftermarket stereo upgrade.

PLEASE NOTE:

This fitting kit is designed to fit facelift 2000 - 2005 Volvo V70 cars.

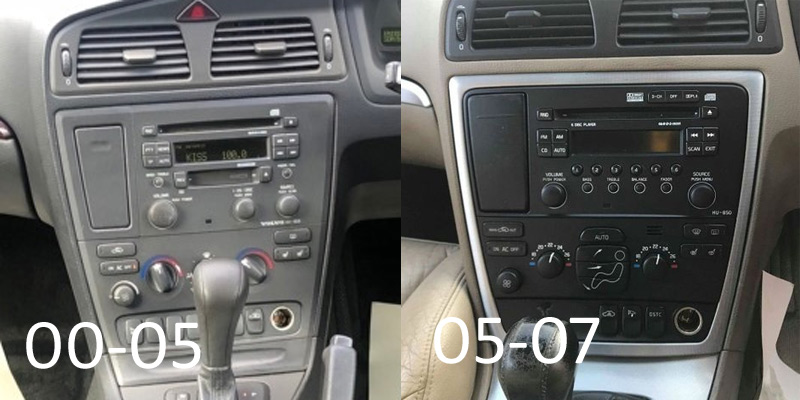

The image below shows examples of pre and post facelift dashboards from a Volvo V70. Note the shape and styling differences of the trim around the radios.

This fitting kit is Suitable for fitting facelift Volvo V70 2000 to 2005 cars with HU-6XX and HU-8XX original radios

The model numbers of the radios are printed on the front of the radio in the bottom right corner. Model number begin with HU- then have a three digit number to identify the radio model. Numbers begin with either a 6 or an 8 and require different speaker wiring depending on which it is.

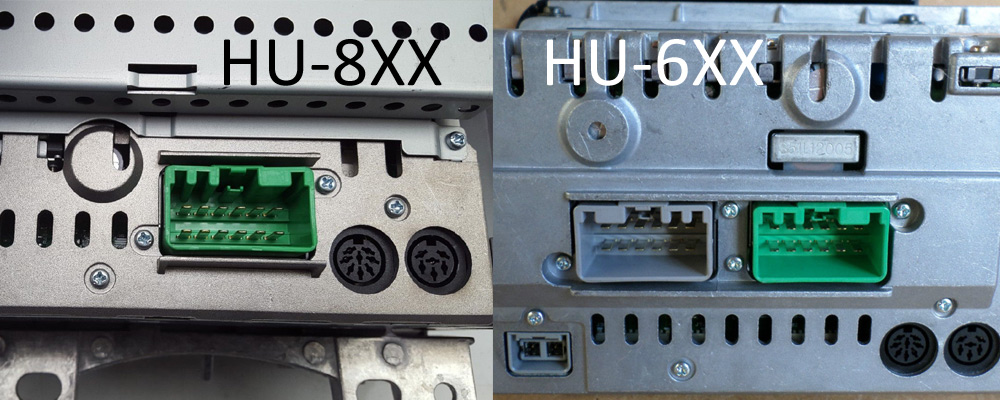

The below image shows the different connectors on the HU-8 and HU-6 radios.

The 8 pin DIN connectors are used for the CD changer.

Important Fascia Notes

• The fascias are made to suit industry standard sized stereos such as Pioneer, Kenwood, Sony, Alpine, JVC etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.

Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection & Shape in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
