Complete stereo upgrade fitting kit to install a Double DIN aftermarket radio and retain the use of the steering wheel audio controls in Citroen, Fiat, Peugeot, Toyota and Vauxhall vehicles with a standard radio system.

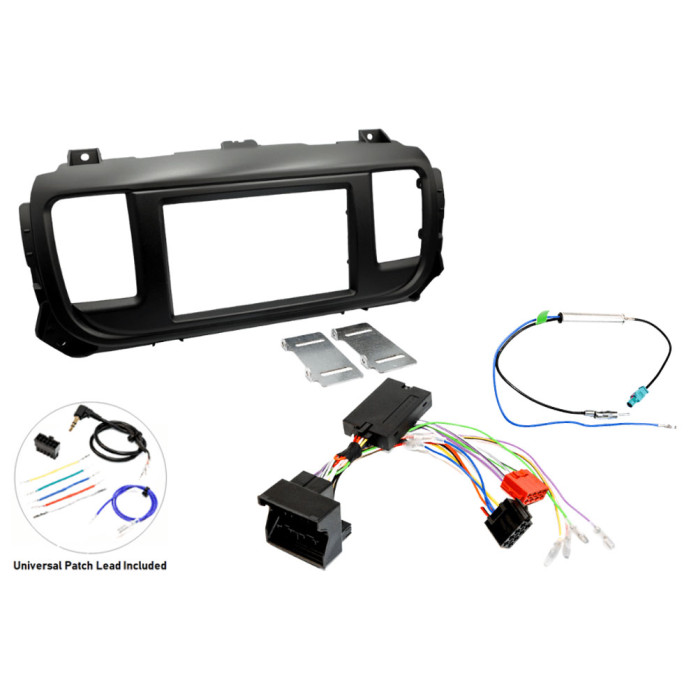

Package Includes

• Double Din Fascia Adaptor Panel (Matt Black)
• Steering Wheel Control Interface
• Fakra to DIN Antenna Adaptor
• Universal patch lead (Included)

If Your Vehicle has Factory Dab you May Require An Additional FM/Dab Splitter CT27AA136

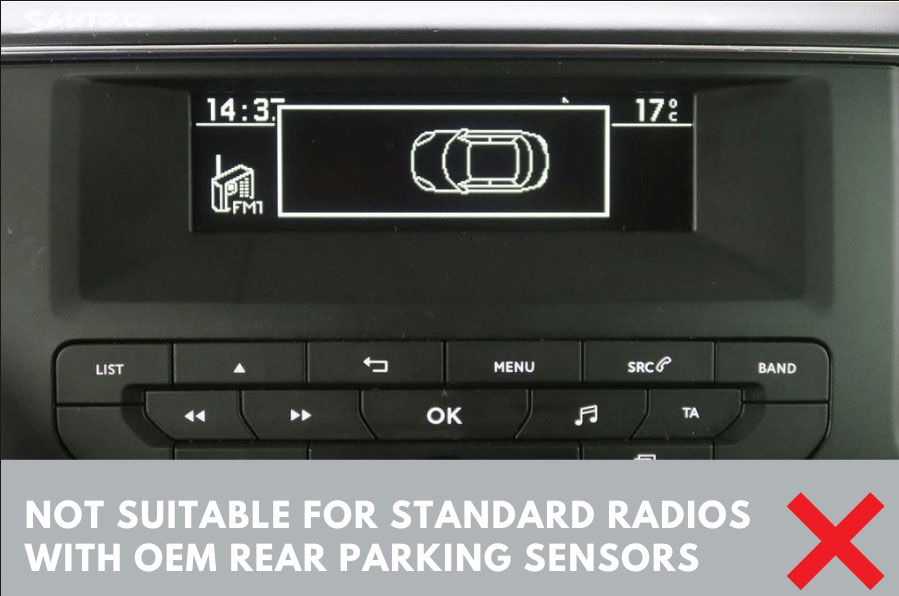

If the Vehicle has Factory Reverse Sensors on the Little Radio Screen you May Require this Kit FK-976-PDC

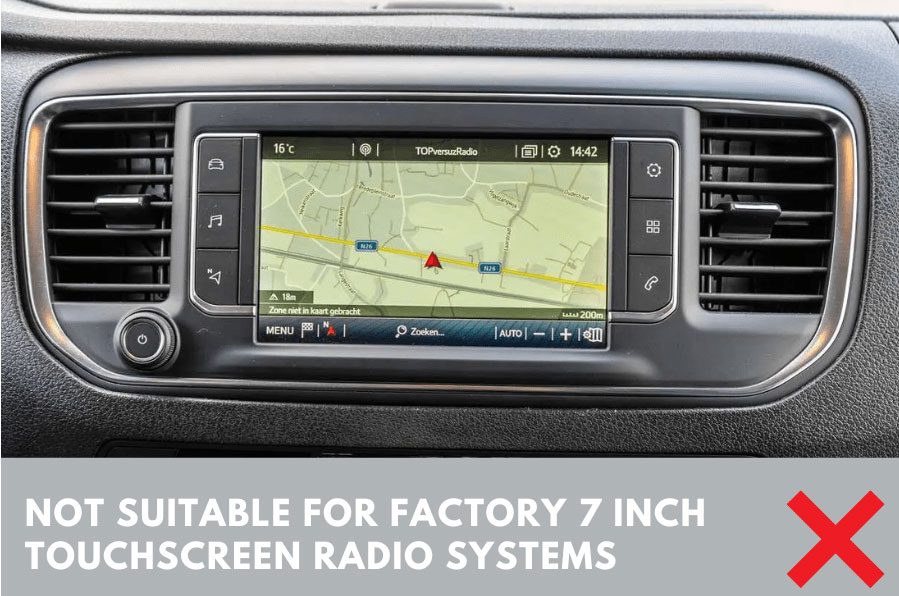

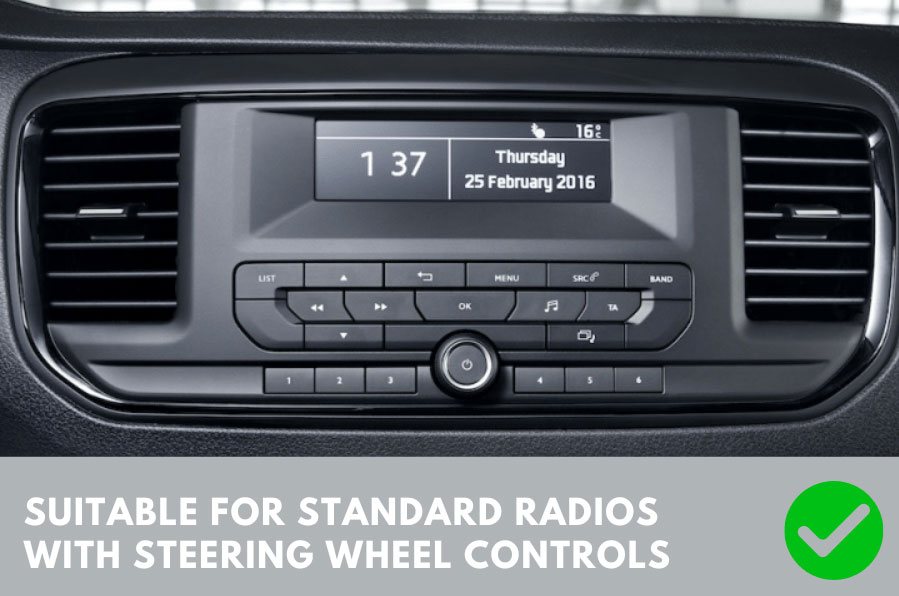

Only Suitable for vehicles with original factory fitted Basic radios

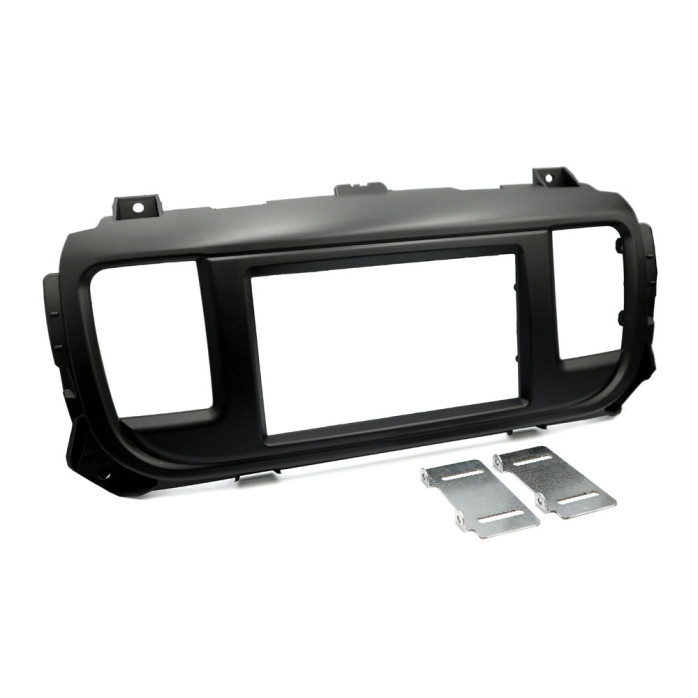

Fascia Adaptor

Replacement car audio fascia to enable you to change the original radio in the car to a Double DIN aftermarket version The fascia adaptor allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio.

This fascia kit uses side fixing brackets, the brackets fit directly to the sides of the new radio and the fascia panel. This replaces the need for a fitting cage and gives a flush professional appearance to the installation.

COLOUR: MATT BLACK

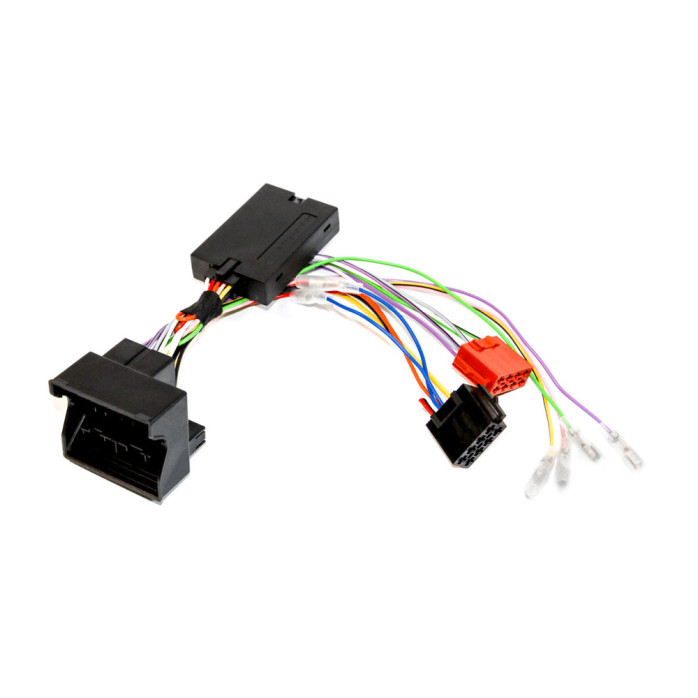

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

This CANbus interface will allow you to retain the audio steering wheel controls when installing an after market head unit.

This interface will also allow the steering wheel controls to access the display screen menu.

The CANbus interface will also give out CAN ignition, speed pulse, reverse gear and hand brake signals.

This interface needs to be used along with a 49- series patch lead to suit the make of radio being fitted.

For vehicles with original fit parking sensors, add item 25-514 or use a different interface 39-PGA-PDC.

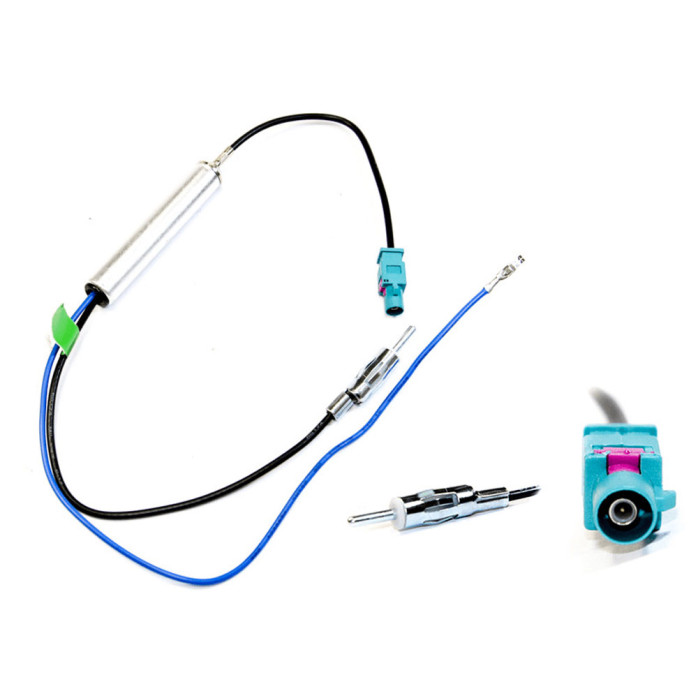

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

This cable converts the original antenna connector in the car, known as a Fakra connector, to a standard aftermarket antenna connector, known as a DIN connector. The adapter cable has a built in module which provides a phantom power feed to the original antenna in the car.

A phantom power feed is a 12v power supply that is sent up the centre wire of the antenna cable, this powers the amplifier built into the original antenna. The antenna adapter cable has a loose wire which needs to be connected to the 12v antenna power output of the new aftermarket stereo.

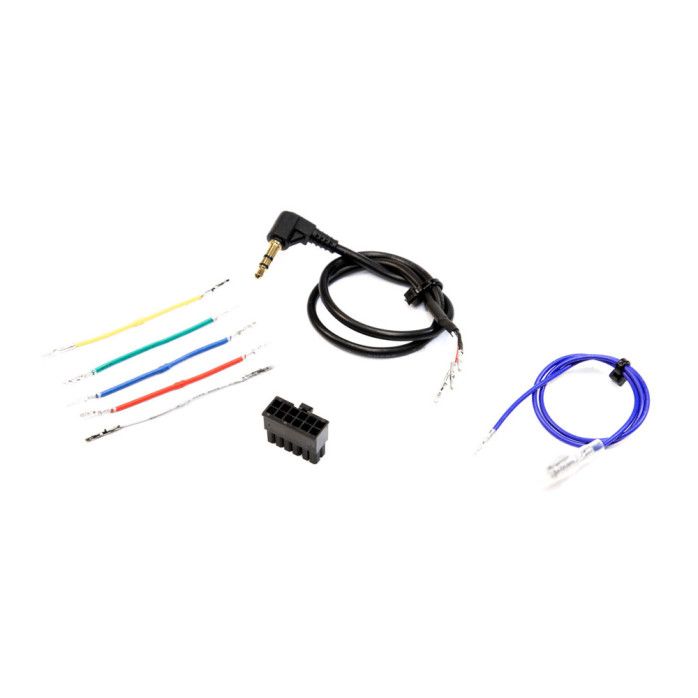

Universal Patch Lead

Universal patch lead to be used with In car Tec 49 series steering wheel control interfaces. Use for Alpine, Clarion, JVC, Kenwood, Pioneer and Sony head units.

FOR UNBRANDED/ CHINESE HEAD UNITS YOU WILL REQUIRE A DEDICATED 49-000 PATCH LEAD

Important Fascia:

• The fascias are made to suit industry standard sized stereos such as Alpine, JVC, Kenwood, Pioneer, Sony etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
