Complete stereo upgrade fitting kit to install a double DIN aftermarket radio in a Range Rover L322 Vogue

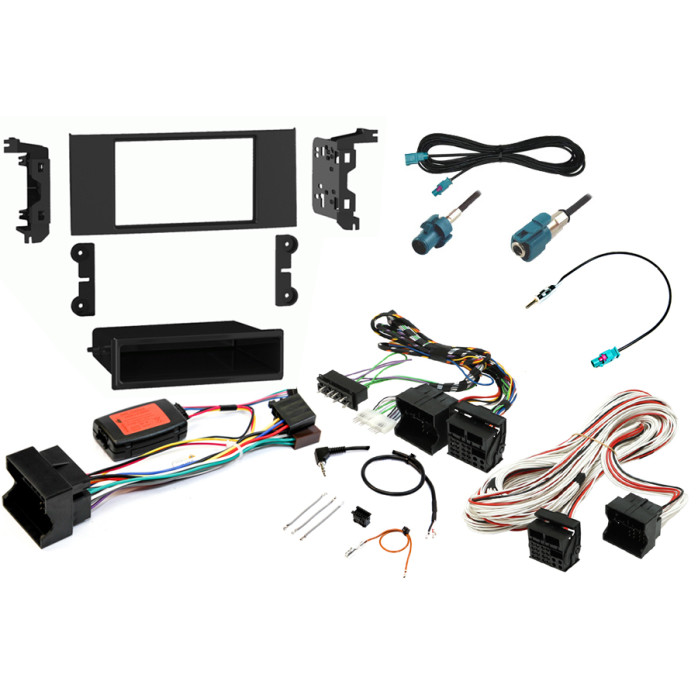

Package Includes

• Fascia Adaptor Panel
• Amp Bypass Harness
• Fakra Extension Cable 5m
• Steering Wheel Control Interface
• Fakra Z Male to Male DIN Aerial Adaptor
• Universal patch lead (Included)

This adapter cable allows the fitting of an aftermarket stereo upgrade by bypassing the original DSP amplifier in the car. The original amplifier uses a digital data audio signal and therefore cannot be used with an aftermarket radio. The cable bypasses the original amplifier allowing the new radio to play audio directly to the cars speakers.
The original amplifier is located behind the rear left quarter panel in the boot. The amp bypass cable connects to the speaker connectors from the amplifier, it also connects to the quadlock connector from the original tuner module located  in the same rear left quarter panel area as the amplifier. A 5 meter extension is provided to then extend these audio and power connections to the dashboard.

A Quadlock to ISO adapter cable with steering control interface is supplied in the kit. This cable adapts from the original connector in the car, known as a quadlock, to standard aftermarket connectors for the new stereo, known as ISO connectors. The built in steering control interface will retain the use of the audio control buttons, volume, track skip, source and telephone, on the steering wheel with the new after market radio.

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

The new radio fits into the fascia adapter using the supplied fixing brackets, this means that no additional fitting cage is required.

Moification to the dashboard is required, we recommend this is done by a professional car audio technician.

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

A Fakra to DIN antenna adapter is included in the kit along with a Fakra to Fakra extension cable. This adapts from the original style antenna connectors in the car, known as Fakra connectors, to a standard aftermarket connector for the new stereo, known as a DIN connector. The Fakra to Fakra extension cable extends the original antenna connector at the tuner module in the rear left of the car to the front.

Universal Patch Lead

A universal patch lead is supplied in the kit, this is to pair the steering control interface to the steering control input of Alpine, Clarion, JVC, Kenwood, Pioneer, Sony and Chinese / unbranded head units.

More information can be seen about the Range Rover L322 on our Instructions / Technical info page under the vehicle information section at the bottom of the page.

Important Fascia Notes

• The fascias are made to suit industry standard sized stereos such as Pioneer, Kenwood, Sony, Alpine, JVC etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.

Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection & Shape in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
