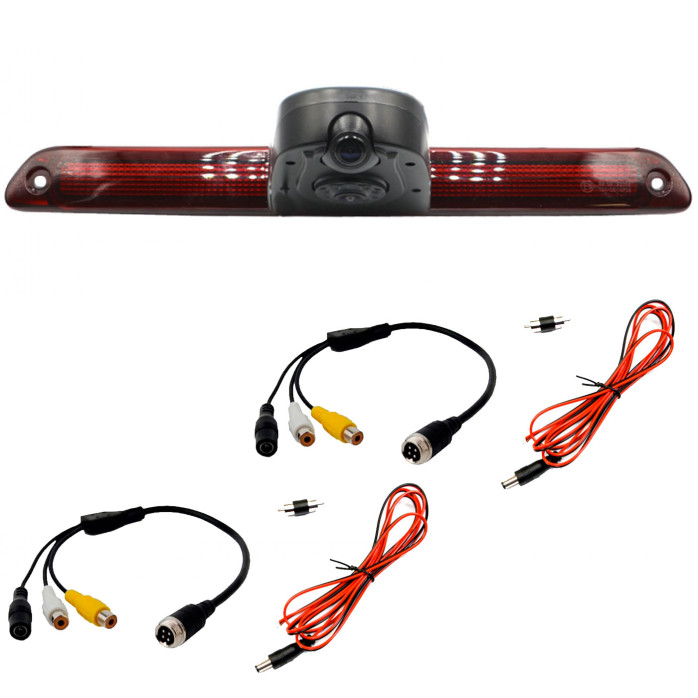

Package Includes

• InCarTec CVC-MBZ-01-DUAL Mercedes Dual Lens High Level Brake Light Rear View Camera (NTSC)
• 2 x InCarTec CVC-CB-09 4 Pin Male To RCA Phono Converter Cable (With Male Adaptor)

Dual-Lens rear view camera specially designed for Mercedes Sprinter and VW Crafter vehicles.

This camera replaces the high level brake light at the rear of the vehicle and provides additional visual safety to the back of the vehicle, whilst still maintaining it's original appearance.

The dual-camera feature allows the driver to view the rear of the vehicle in real time as well as providing a camera feed to make reversing a more comfortable and stress-free experience.

This dual-lens camera features a 170 degree lens viewing angle, 1/3" CMOS image censor, 756 x 504 resolution and are waterproof rated at IP68 as standard.

Please check that the image and dimensions of the camera matches the existing high level brake light on the vehicle.

This camera kit Includes a 10m 7-pin extension cable and 4-pin to 7-pin cable splitter

PLEASE NOTE:

• Whilst we do our best to make sure our product compatibility listings are as accurate as possible, there may still be exceptions. Please check that the image and dimensions of the camera matches the existing high level brake light on the vehicle.

Specifications

• Image sensors: 1/3 color HD CMOS/CCD
• System: NTSC/PAL (TV system)
• Min illumination:0Lux (LED ON)
• Perfect IR night vision, 8 pcs IR LED
• Lens Angle: 170°
• Night Vision distance:30ft
• Minimum illumination. <0.5 BLC: Auto
• White Balance: Auto,Video Color: Colorful
• Waterproof Class: IP68
• Effective Pixels : 756(H)*504(V)
• Pixel Resolution : 600TV lines
• Video Output: 1.0Vp-p,75
• Electronic Shutter: 1/60(NTSC)-1/10000S
• S/N ratio: Better Than 48db
• Operation Temperature: -20°C+70°C RH95%
• Storage Temperature: -40°C+100°C RH95%
• Working Power (DC): 12V/1,5
• Watt Current consumption: 90mA Max
• Video cable is RCA connector/4Pin aviation

4 Pin Male to RCA Phono Converter Cable (With Male Adaptor)

Converts  4 PIN male camera connector to RCA phono. (with male adapter)

Use for converting 4 PIN camera's to RCA so that you can connect 4 PIN camera's to aftermarket Screens amd Monitors.
