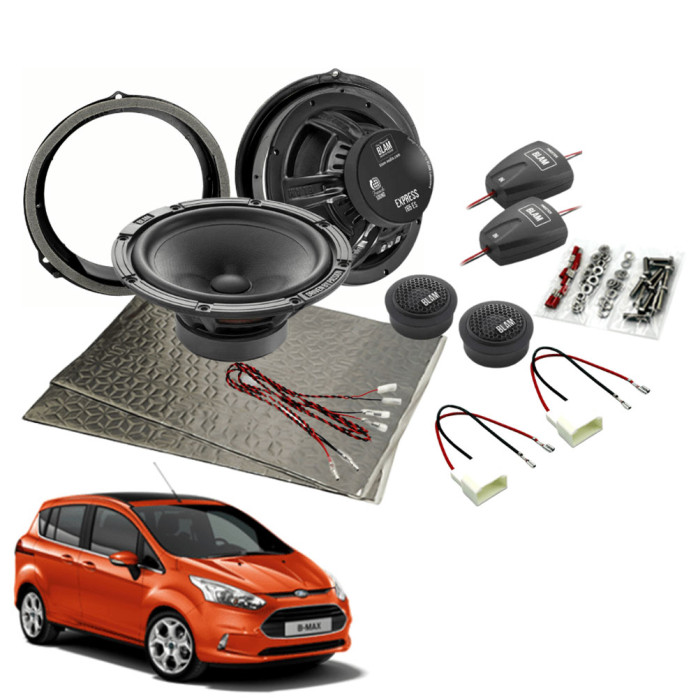

Provide a sound upgrade to your Ford B-Max (2012-2018) front or rear doors with our 165mm (6.5 inch) BLAM EXPRESS 165ES component speaker upgrade fitting kit.

This speaker fitting kit contains a set of BLAM EXPRESS 165ES 165mm (6.5inch) Hi-efficiency 2ohm Component speakers.

 This fitting kit will upgrade both the speakers and the tweeters in the doors.

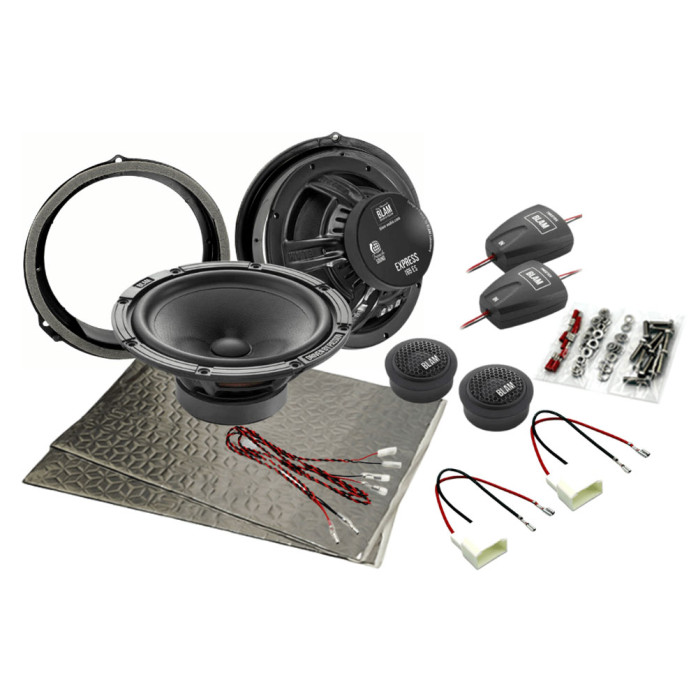

This Complete Speaker Fitting kit Includes

• BLAM EXPRESS 165ES 165mm (6.5 Inch) 2-Way Component Speakers (Pair)
• 165mm Speaker Adapter Panels (Pair)
• Speaker Adapter Cables (Pair)
• 2 x Y-Shaped Component Speaker Cable Harnesses
• 2 x Skinz Expert Sound Deadening Sheets
• Nut Bolt and Washer Pack

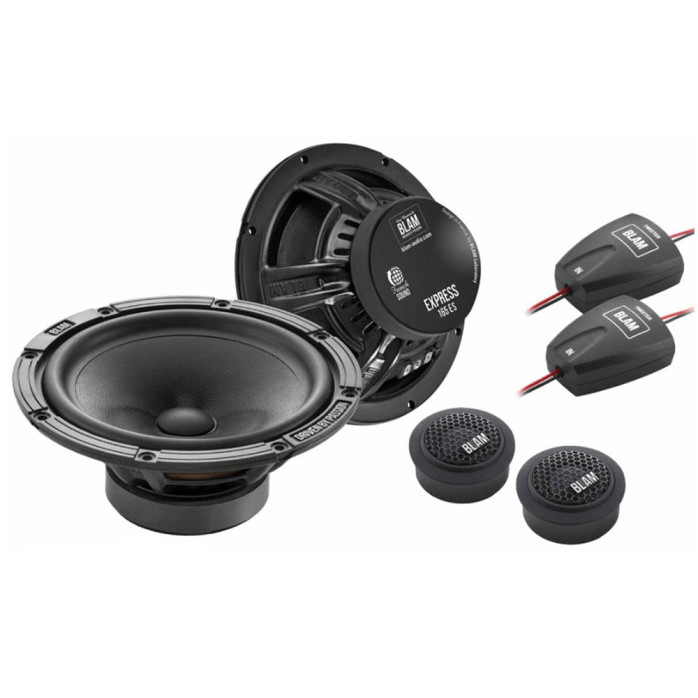

BLAM EXPRESS 165ES 165mm (6.5 Inch) 2-Way component speakers (BL-165ES)

Discover the Express 165 ES from BLAM, a high-class speaker set that stands for impressive sound quality. With its 6.5" (16.5cm) front system set, this 2-way model guarantees a maximum output of 120W and a nominal output of 60W. It impresses with its high sensitivity and an amazingly wide frequency range from 65 Hz to 31 kHz.

The set includes two 165 mm woofers, two 20 mm soft dome tweeters and two separate crossovers with high-pass 6dB filtering, ensuring the optimum listening experience.

This kit is composed of two 165 mm (6.5”) woofers, two 20 mm (3/4”) soft dome tweeters and two separated high pass 6dB/octave crossovers

Technical Features

• Highly sensitive 2-way 6.5" (16.5cm) front system set
• Maximum power 120 W
• Nominal power 60 W
• Frequency range 65 Hz - 31 kHz
• Sensitivity 93.5 dB
• Impedance 2 Ω

Characteristics

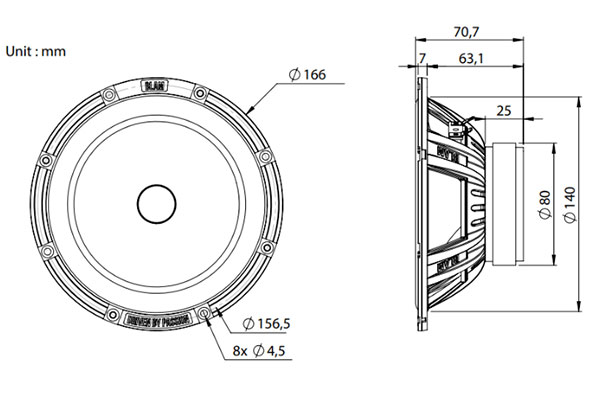

Low-Midrange Driver

• Specific punched steel basket
• Treated and waterproof cellulose cone
• Butyl rubber surround
• 25 mm (1") voice coil with Kapton carrier
• Oversized magnet 80mm x 15mm (3.1" x 0.6")

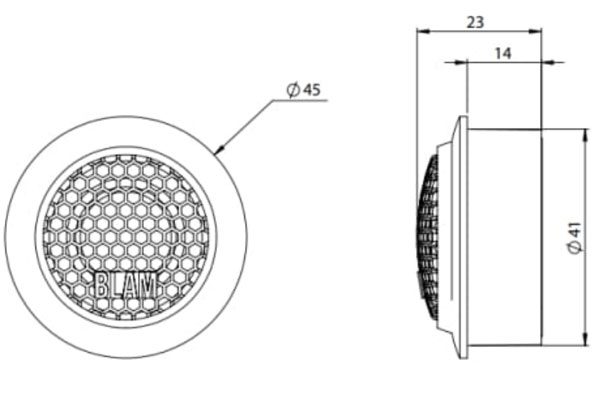

Tweeter

• 20 mm (3/4") high quality soft dome tweeter
• N 38 neodymium motor
• 6 dB/octave high-pass integrated crossover

Supplied Accessories

• Mounting screws
• User’s manual

165mm Speaker Adapter Panels (40-1143-165)

Pair of  Ford B-Max (2012-2018) speaker adapter rings to allow the fitting of aftermarket 165mm speakers.

The speaker adapters match the shape of the original speakers to allow the fitting of a pair of standard size aftermarket speakers. Ideal for replacing damaged or worn out original speakers or upgrading the original speakers to improved aftermarket speakers for better sound quality.

The speaker adapters are designed to fit into the front or rear doors of select Ford B-Max (2012-2018) car models.

We do our best to make sure all our product listings are as accurate as possible, however, there may be exceptions depending on the varieties of vehicle specification. Please check that the dimensions of the product matches the OEM speaker hole that is to be replaced in the vehicle door

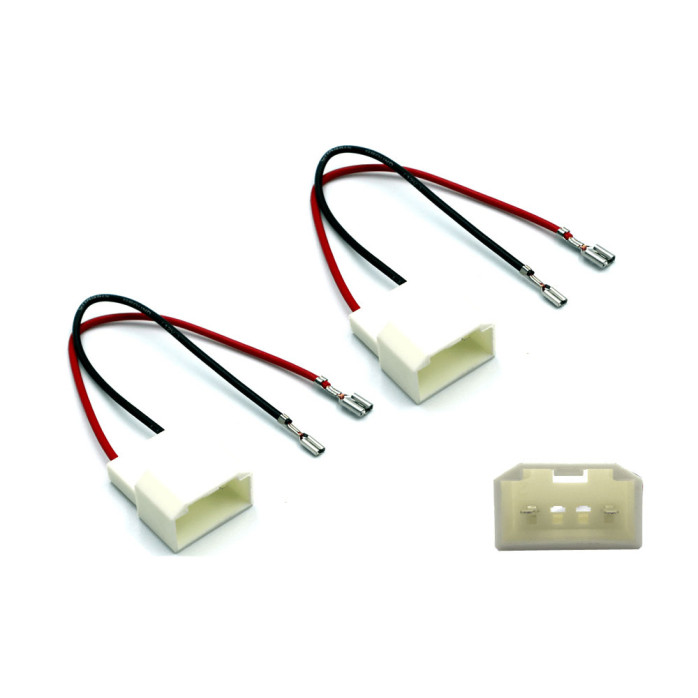

Speaker Adapter Cables (41-018)

A pair of speaker adapter cables for Ford B-Max (2012-2018) car models. Use to fit new aftermarket speakers without needing to cut off the original speaker connectors.

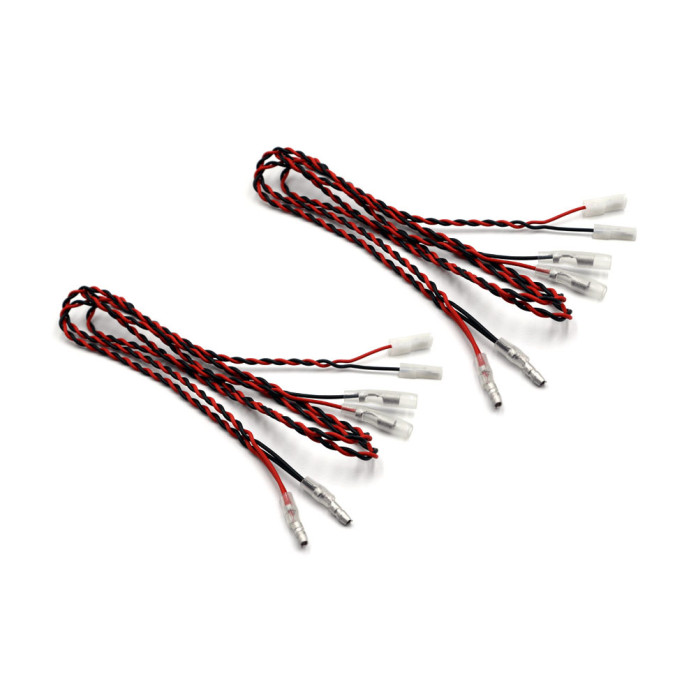

2x Y-Shaped Component Speaker Cable Harnesses (CAB-SFK-UNI)

A pair of Y cables designed to make fitting component speakers as easy as possible.

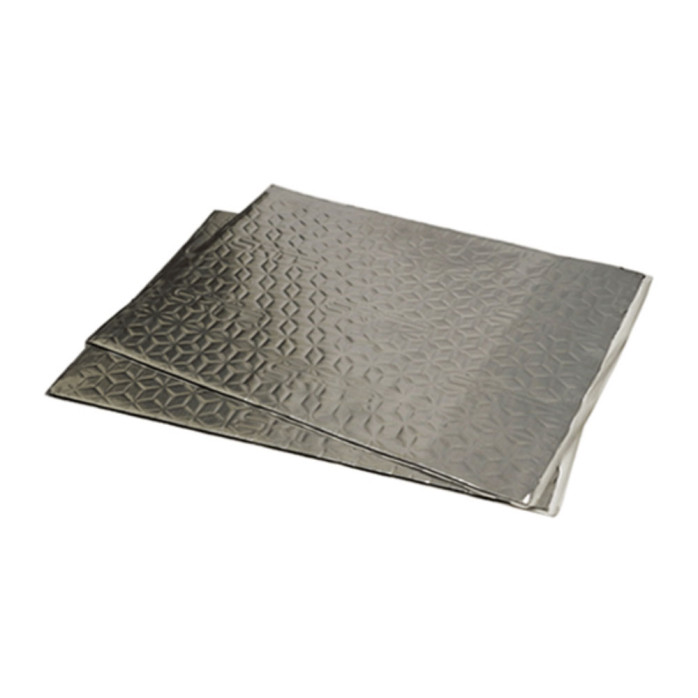

2 x Skinz Expert Sound Deadening Sheets

Skinz Expert sound deadening sheets provide ultra-effective noise deadening and vibration control on sheet metal and plastic surfaces. It can vastly enhance your vehicles sound upgrade by reducing sound vibration, eliminating outside road noise and creating a more acoustic environment, magnifying the sound quality of your system.

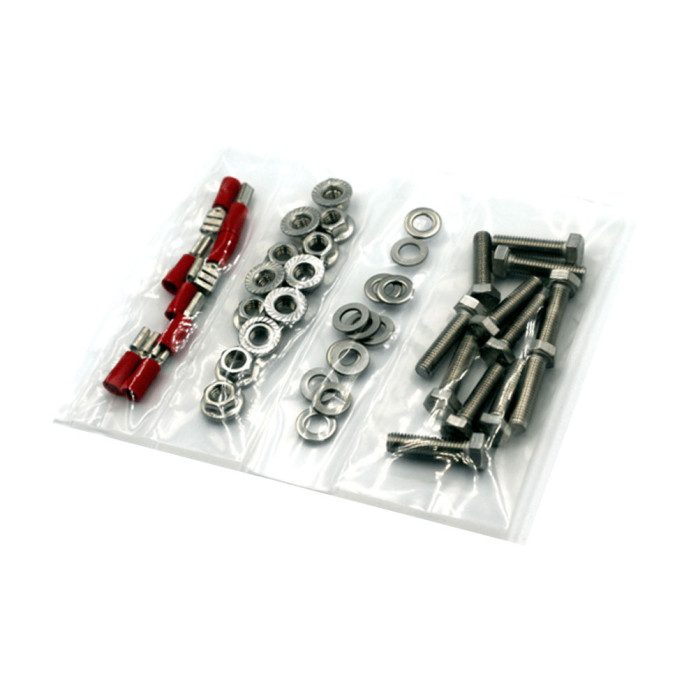

Nut, Bolt and Washer Pack (SPK-FITTING)

A pack of nuts, bolts, washers and spare insulated terminals for fitting a pair of speakers and speaker rings to almost any car.
