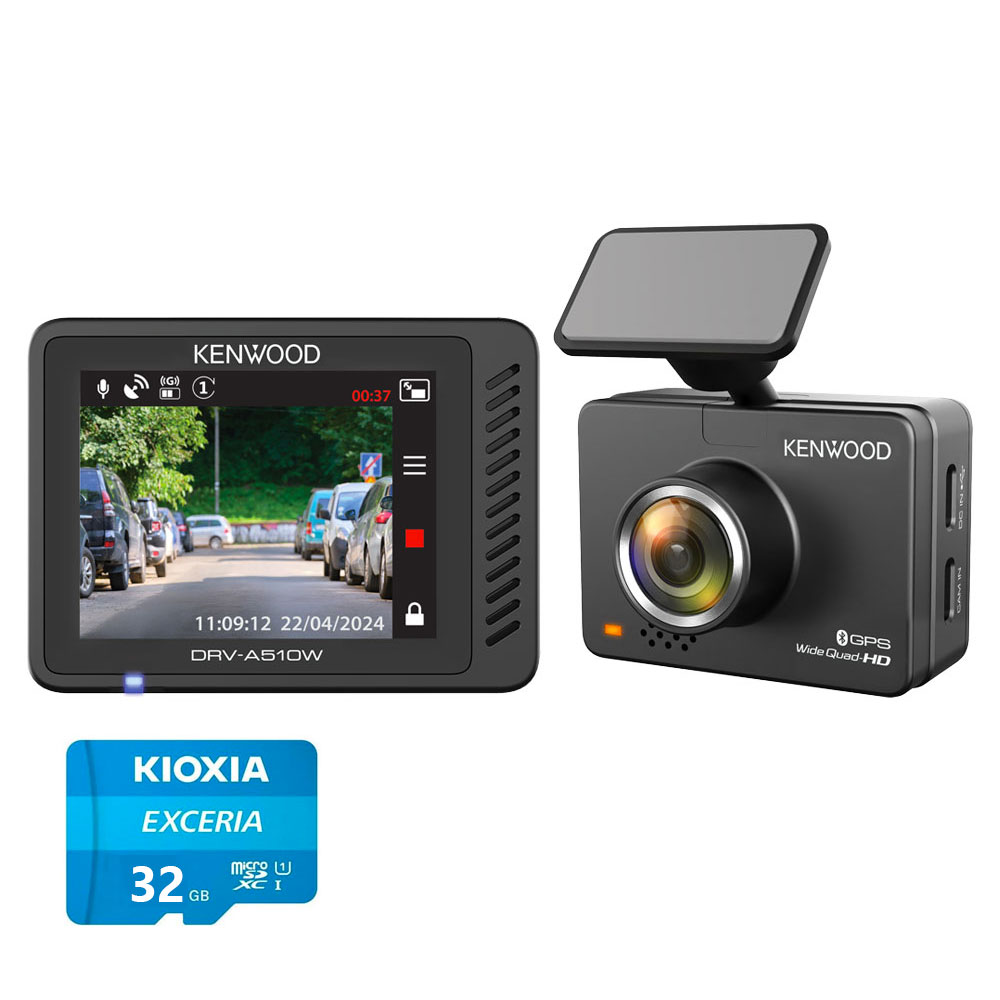

DRV-A510W Dashboard Camera

Dashboard Camera with 2.0" LCD Display, 2K High Definition Recording & Wireless Link

The DRV-A510W Dashboard Camera is equipped with 2K Quad HD Recording and captures clear video even while driving. Access your Dash Cam Data Wirelessly with the KENWOOD DASH CAM MANAGER smartphone application (IOS & Android) and share recorded videos directly to social media.

Connect the optional KCA-R110 rear camera to enable dual channel (front in 2K and rear camera in Full HD simultaneously) recording. Connect the optional CA-DR1130 to activate the Smart parking mode (Vibration or motion detection or Time-lapse recording)

SD Card 32GB Micro SD Included

Key Features

• 2K Wide Quad High Definition Recording, making super-high resolution recording and replay possible.
• Captures 2560x1440px H.265/ MP4 Video @ 30fps, AAC Audio & JPEG (2560x1440px) Picture Format.
• Features the F1.8 lens which boasts industry-leading-brightness and 136° diagonal ultra-wide viewing angle.
• HDR (High Dynamic Range) Easily records clear images in dark or well lit settings without underexposing or overexposing the image.
• 2.0" Full Colour TFT Display provides easy access to checking recorded videos and changing settings.
• Access Your Dash Cam Data Wirelessly using the KENWOOD DASH CAM MANAGER smartphone application.
• Review and edit recorded videos using KENWOOD VIDEO PLAYER desktop software.
• Equipped with a G-Sensor designed to detect a outside force, and GPS receiver that records speed, latitude, and longitude.
• Rear Camera Input to record front and rear images simultaneously (KCA-R110 sold separately).
• Smart Parking Surveillance Mode (Vibration, Motion detection or Time-lapse mode) with Optional Hardwired Kit CA-DR1130.
• Micro SDHC/SDXC Card Slot (8 ~ 256GB, UHS Speed Class 3(U3) recommended).
• Supplied with Adjustable Adhesive Mount, USB Car Charger, Power Cable & Cable Clips.

With its 5 megapixel CMOS sensor, the DRV-A510W captures 2K HD video at 30fps, more then 2 times as many pixels as Full-HD, making super-high resolution recording and replay possible.

*By connecting the optional rear camera (KCA-R110) it is possible to record front and rear directions simultaneously, Front in 2K maximum recording resolution and rear in Full HD maximum recording resolution.

F1.8 Lens Ultra-Wide Viewing Angle

This camera features a F1.8 Lens, which boasts industry-leading brightness. Easily records razor-sharp videos in 2K resolution both during the day and in low light without underexposing or overexposing the image. The camera ultra-wide viewing angle with a diagonal angle of 136º can capture information at wide ranges without missing anything. Small details are clearly visible as a result, such as the license plates of other vehicles.

3-axis G Sensor & GPS Receiver

The built-in 3-axis G Sensor with adjustable sensitivity detects an outside force, forcing the device to save what has just been recorded. In addition, the GPS Receiver allows your videos to add location and speed data.

Dashboard Camera Specifications

• Image Sensor 1/2.8" CMOS
• Number of Pixels 3.7M Pixels (2560 x 1440)
• Lens Type F1.8 Fixed focus lens
• Diagonal field of view 136°
• LCD screen 2,0" full colour TFT
• Recording Resolution 2K Wide Quad HD (2560 x 1440) Resolution (3.7M) (max)
• Front & Rear 2 Camera Recording ready for optional KCA-R110
• 2 Channel Recording Resolution 2K Wide Quad HD Front & Full HD Rear
• Frame Rate 30 fps
• Photo Format JPEG
• Photo Size 2560 x 1440 Pixels
• Recording Format H.265 / MP4
• Video Clip Lenght 1 minute
• Audio File Fomat AAC (Advanced Audio Coding)
• G-Sensor Built-in High / Medium(default) / Low / Off
• HDR record enhancement
• Built-in GPS Receiver
• Parking surveillance mode with optional hardwire kit (CA-DR1130)
• Parking Mode Vibration Detection / Motion Detection / Time-Lapse
• Wireless LAN & App Link
• Recording Media micro SDHC/SDHC card UHS Speed Class (U3)
• Maximum Size Recording Media 8GB up to 256 GB
• Menu Language EN(Default)/GE/FR/DU/IT/ES/PT/PL/CZ/RO
• Operation voltage 5 VDC
• Power Supply type USB Car Charger + 4m power cable
• Power Supply voltage 12 - 24 VDC
• Dimensions 58.5 x 42.8 x 24.4 mm
• Weight 65 gr (Camera Only)
• PC application KENWOOD VIDEO PLAYER (PC & MAC)
• Smartphone Application KENWOOD DASC CAM MANAGER (IOS & Android)

Accessories

• DC cable 4.0 meter USB-A type to USB-C type power cable.
• Car Charger Adapter Car Cigarette Lighter to USB-A
• Cable Clip 4 pieces
• Adhesive car mount bracket
• Spare Adhesive pad 2 pieces
