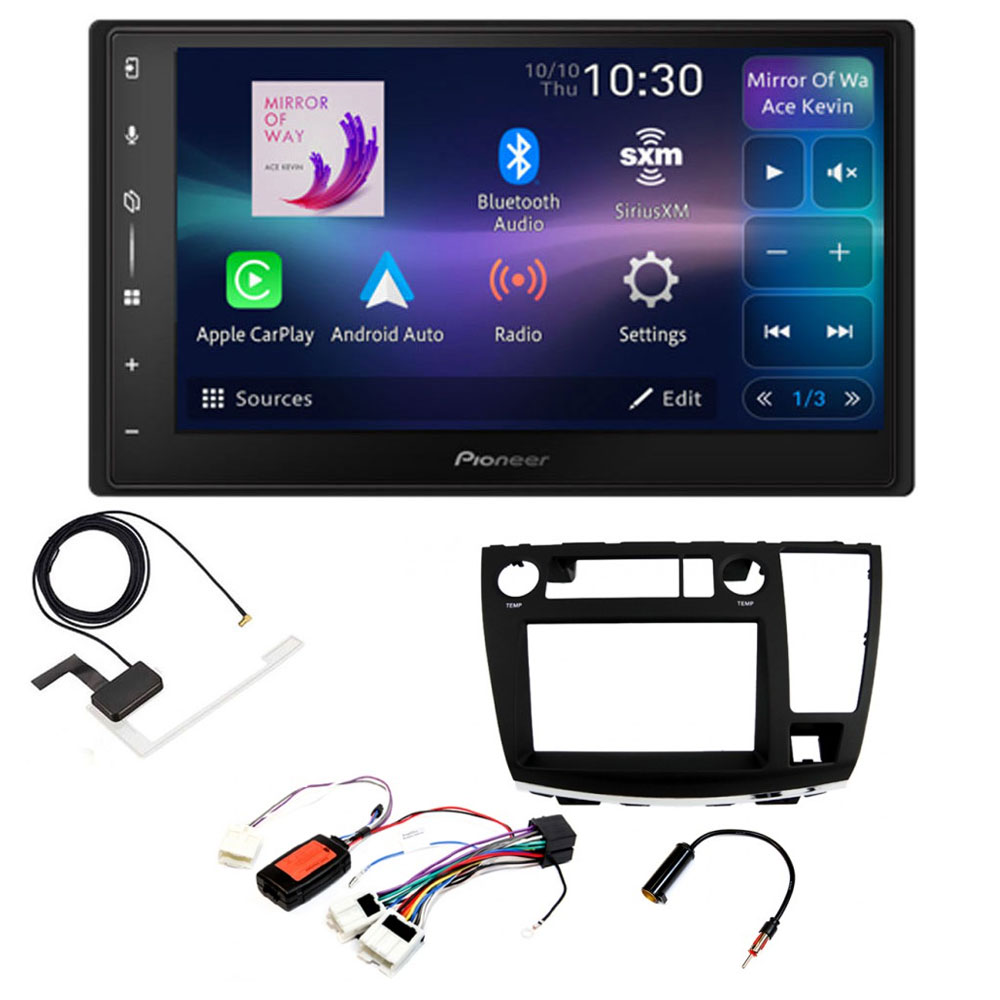

Package Includes

• Pioneer SPH-DA77DAB 6.8" WVGA Capacitive Multi-touch Panel Screen Weblink 3.0 Android Auto/ Apple CarPlay DAB Car Stereo
• DAB Aerial
• Double Din Fascia (Matt Black)
• Steering Control Interface
• Antenna Adaptor
• Stereo Patch Lead

Pioneer SPH-DA77DAB

Pioneer SPH-DA77DAB. Getting the latest technology doesn’t have to break the budget with the Pioneer SPH-DA77DAB featuring the very best in automotive smartphone technology, including Apple CarPlay® (wireless or wired connection), Android Auto™ (wireless or wired connection), Dual Phone Bluetooth®, plus dual camera inputs.

Choose from a host of entertainment options, including USB with Full HD video playback supported**, DAB+ tuner, AM/FM tuner or Bluetooth music streaming, Android & iPhone Smartphone 2-way mirroring* (via cable connection) all controlled from a large, highly detailed 6.8-inch WVGA capacitive touch screen.

To make your in-car experience even easier, we’ve added a quick access capacitive button for Apple CarPlay and Android Auto users as well as an on-screen quick access bar for Pioneer source and audio control.

Audio performance is supported with a 13 Band GEQ and highly detailed crossover adjustments just to name a few. Supporting either 4 x 50w Max direct speaker outputs or for those running external amplifiers, 3 x 4V Pre-outs (FRT, RR & SW) to make sure quality at high volumes can be achieved.

Installation is made easy with a 1-DIN chassis design with a depth of 125mm leaving more space for (and less pressure on) wiring behind your dash!

The Pioneer SPH-DA77DAB is designed to provide amazing functionality with a host of new improvements to make your in-car experience safe, easy and fun!

	Apple CarPlay Is the smarter, safer and more fun way to use your iPhone® in the car. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use Maps, listen to music, and access messages with just a word or a touch. Apple CarPlay requires iPhone 5 or newer with the latest version of iOS.
	Android Auto Extends the Android platform into the car in a way that’s purpose-built for driving and automatically brings you useful information and organises it into simple cards that appear just when they’re needed. It’s designed to minimise distraction so you can stay focused on the road ahead. Android Auto is compatible with Android phones running Android 5.0 (Lollipop) or later. Android Auto may not be available on all devices and is not available in all countries or regions.
	DAB+ Enjoy the convenience of listening to your favourite radio stations in crystal clear digital quality thanks to a built-in Digital Radio tuner.
	Digital Radio Tick Mark Approved product Manufacturers must meet the minimum specification, verified by independent testing. All Pioneer products that use this Digital Radio Tick Mark have been independently tested and approved so you can buy with confidence.
	Bluetooth® Obey local driving laws with built-in Bluetooth (HFP). Wide Band Speech hands-free calling, wireless audio streaming (A2DP) with artist, album, and song search, simple pairing, and control audio (AVRCP), Bluetooth® wireless technology has made life in the vehicle safer and more convenient.
	6.8" Capacitive Touchscreen A fully flat touchscreen that allows for fast and responsive multi-touch gestures like pinch to zoom, plus swipe and scroll controls at your fingertips, in very high detail.
	Mechafree This product is designed for modern digital music formats.
	Made for iPod / iPhone Directly control your iPod / iPhone, for charging, music and video via an optional interface cable (sold separately), depending on your iOS device. Song, artist, time and album information are beautifully displayed on the touchscreen.
	Compatible with Android Connect and listen to music stored on your device without the need for an app
	USB Input Connect any device with an USB interface cable to charge your device or listen to clean, clear sound.
	Spotify With Spotify, just connect your smartphone to comfortably browse your favourite playlists, albums, tracks and artists using your headunit controls.
	Waze is a social GPS driving/navigation app that offers map, real-time traffic, and various other information for you to access on the large display of Pioneer compatible multimedia devices .
	FLAC Enjoy FLAC lossless digital audio files in your vehicle with playback output at CD quality, without the need to convert.
	13-band Graphical EQ Adjust your audio output in detail for a music experience tailored to your preferences.
	Siri Eyes Free make use of your iPhone's Siri functionality through your unit's external microphone and the speakers of your vehicle
	Multi colour illumination Match the display and key illumination to your vehicle's interior lighting with a range of endless colour combinations.

Main Features

• Mechafree, iconic cosmetic design, with large 6.8” Capacitive Multi-touch touchscreen panel
• Built-in Wi-Fi for Apple CarPlay (wireless & wired) and Android Auto (wireless & wired)
• Improved GUI allowing for simple smartphone connectivity, compatible with Apple CarPlay and Android Auto
• 1Din – Short Chassis backside design
• RGB illumination
• Single Rear USB with 1.5A power supply (Type A)
• USB Mirroring via WebLink® 3.0 for iOS and Android smartphone/tablets
• Rear View and 2nd Camera Input
• Bluetooth (A2DP/HFP/AVRCP) DAB / DAB+ Digital Radio built-in (Optional DAB Antenna required)
• Bluetooth®: handsfree calling, phonebook transfer, audio streaming (A2DP). (External BT microphone included)
• Wired Remote Input
• CAN-BUS support (No HUD)
• Advanced audio features
• Wireless Android Auto and CarPlay and its direct launch key, (Easy to use)
• 2-DIN (With 1-DIN short chassis design to allow easy installation into a wide range of vehicles)
• Vehicle Bus. UART / Can-bus, that supports the retention of the vehicle related functions of the original (OEM) head unit. (Optional vehicle adaptor required, sold separately)

PxLink (Companion app) will be installed by Firmware update or minor change

SPH-DA360DAB vs SPH-DA77DAB comparison

SPH-DA77DAB Chassis design

SPH-DA77DAB Installation Benefit

Specifications:

General

• Mechafree 6.8” WVGA Capacitive touchscreen
• Built-in Wi-Fi for Apple CarPlay (wireless & wired) and Android Auto (wireless & wired)
• USB Mirroring via WebLink® 3.0 for iOS and Android smartphone/tablets
• Bluetooth® and DAB / DAB+ Digital Radio combined
• Digital Radio Tick Mark approved product
• Siri Eyes Free
• Advanced audio features
• Premium sound quality
• RGB: multicolour key illumination and LCD display
• iPhone Direct Control
• Compatible with Android
• Reverse camera compatible
• 2-DIN (With 1-DIN short chassis design to allow easy installation into a wide range of vehicles)
• Selectable wall paper (User customisation with jpeg file)

Connectivity

• Apple CarPlay (wireless & wired)
• Android Auto (wireless & wired)
• WEBLINK 3.0
• Rear USB / Rear Aux-In
• Made for iPhone / Compatible with Android
• USB Mirroring via WebLink® 3.0 for iOS, Android smartp­hone/tablets
• Wired Remote Control / Rear View Camera Input
• Vehicle Bus. UART / Can-bus, that supports the retention of the vehicle related functions of the original (OEM) head unit. (Optional vehicle adaptor required, sold separately)

Audio and Video

• 13-BAND GEQ and Time alignment
• 3Way Network Mode
• Video output & Audio 3 Pre-Out (4V)

DOP Related

• EZ MyCarSetting
• Setting Memory for Agricultural Business
• Start Stop Function

Bluetooth

• Pioneer Bluetooth for hands-free calling & audio streaming
• Bluetooth auto pairing
• External microphone Included
• Wireless audio browsing

Audio

• Premium Sound Quality
• MOSFET 50W x 4 Max Output Power
• Music Browsing
• 13-band Graphic Equaliser
• Low Pass/High Pass Filter
• 3 x 4 Volt RCA Pre-outs

Tuner

• DAB/DAB+ Digital Radio
• Auto Tune, Pre-set buttons
• Digital Radio Tick Mark approved product
• RDS FM/AM Tuner
• 24 Pre-set

File Playback

• Audio: WMA/MP3/WAV/AAC/FLAC
• Video: H.264/Mpeg4/JPEG/TS/ WMV/MKV/FLV/TS

Accessories

• Included - Microphone for Hands-free Calling
• Included - USB extension cable

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
