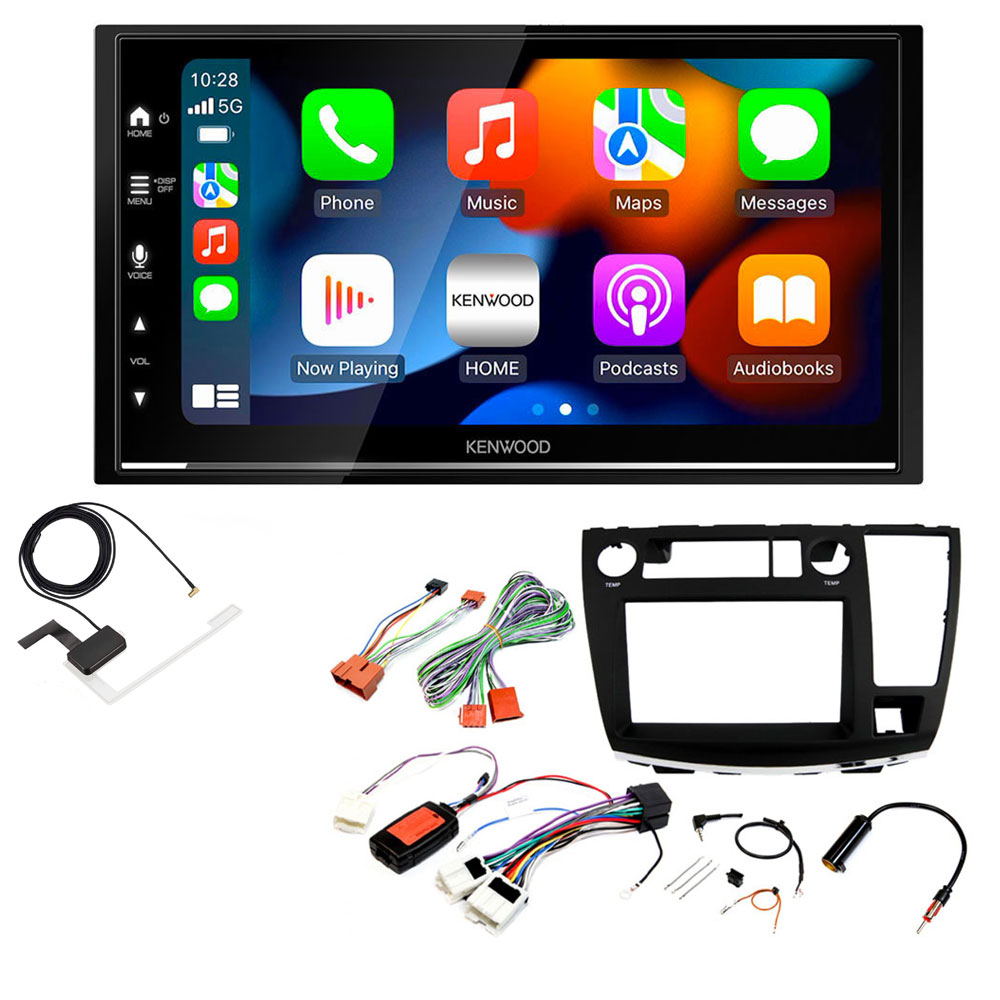

Package Includes

• Kenwood DMX7722DABS Wireless Apple CarPlay Android Auto Digital Media AV Receiver DAB Stereo
• DAB Aerial
• Double DIN Fascia Adaptor (Matt Black)
• Steering Control Interface
• Theatre Sound Amplifier Bypass Cable
• Antenna Adaptor
• Stereo Patch Lead

Use the metal brackets from the original radio and fit to the new aftermarket radio

This fitting kit is suitable for Nissan Elgrand models with a separate Hazard Switch and THEATRE SOUND audio. The Theatre Speaker System will have a centre TOP dashboard speaker grille with NO LOGO (See below)

By connecting your smartphone and DMX7722DABS wirelessly, your driving time will be more fun and convenient: Safe, Smart and Comprehensive Control with Apple CarPlay™ & Android Auto™ and the USB Mirroring allows you to display and control your Android smartphone on the KENWOOD receiver screen. Furthermore enjoy the Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment and an optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

 DAB AERIAL INCLUDED

Key Features

• 6.8 "WVGA capacitive touch panel with sharp, high-contrast images, vivid colors and wide viewing angles.
• Wi-Fi built-in for convenient wireless connection with a compatible smartphone.
• DAB+ radio tuner for noise & interference free reception and crystal-clear digital stereo sound.
• Bluetooth(R) Wireless Technology for hands-free calls and music streaming. (Available functions depend on cell phone).
• Supports CarPlay wirelessly (Wifi) and wired (USB).
• Supports Android Auto wirelessly (Wifi) and wired (USB).
• Supports Android USB Mirroring including 2-way touch control capability.
• Dedicated rear view camera input with parking guide lines
• 3 RCA high power (2.5V) preouts (front/rear/sub)
• Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements
• Short body (75mm) for easy installation.

General Features

• DIN Size 2 DIN
• Smooth GUI
• Selectable GUI Background Wallpaper
• Key Illumination Variable color
• Touch sensor
• Installer Memory
• Back-up Memory
• Attenuator with Smooth Volume Return
• Touch Sensor Tone
• Optional IR remote controller KNA-RCDV340
• Digital Clock (24H)
• Built-in Bluetooth
• DAB Tuner Built-in
• Wifi built-in
• Made for iPod
• Firmware upgreadable

Monitor Features

• LCD type 6,8 inch Wide VGA
• LCD backlight LED
• Display Mode 3 Mode (Full(default)/Auto/Normal)
• Screen Adjustments Noon/Night Mem/Brightness/Tint/Colour/Contrast
• Dimmer function Manual/Sync
• Dimmer Level Auto/On/Off
• Visual Source Mode CarPlay/Android Auto.
• Touch Panel Capacitive
• Display Type Glare
• Display film Anti Fingerprint
• Viewing Angle Adjustment "0" (Default) / "-1" / "-2" / "-3"
• NTSC/PAL judge (Auto)
• Display Off Mode

Multimedia GUI Features

• Menu text 14 languages:
  • English(UK)(Default)
  • English(US)
  • Spanish
  • French
  • German
  • Italian
  • Dutch
  • Russian
  • Portuguese
  • Hebrew
  • Greek
  • Polish
  • Czech
  • Hungarian
• Software updates (SoC) via USB
• Demonstration Mode
• Top Menu Customize
• Background Customize preset x 9 + user set x 1
• Screen Capture
• R-CAM interrupt
• R-CAM Caution On Screen Display
• R-CAM Parking Guide Lines

Network & Wifi Features

• WiFi built-in built-in
• Frequency Range Dual Band (2.4GHz / 5GHz)
• IEEE standard 802.11a/b/g/n/ac

Tuner Features

• Station Select List
• Tuner Type JKTS
• FM Reception
• AM (MW/LW) Reception
• AM Reception
• FM(RDS) + AM(MW/LW) Tuner
• Tuner Presets (FM/AM) 5 Presets (15FM / 5AM)
• Tuning mode Auto1/Auto2/Manual
• Up/Down Seek/Scan
• Automatic Memory Entry (AME)
• FM Stereo / Mono Selector
• Radio Data System
• Radio Text Plus
• Traffic Information
• Local search
• Auto TP search
• Enhanced Other Networks Function (EON)
• Program Type Function (PTY)

CE DAB Tuner Features

• DAB+ tuner built-in
• Digital Radio Certification Mark
• DAB/DAB+ Band Band III
• DAB/DAB+ Mode I, II, III, IV
• Intelligent seek
• Tuning mode / Seek mode Auto1/Auto2/Manual
• Service preset 5 ch * 3 bank presets,
• Preset list
• Alphabet Search
• Traffic Information
• DAB-DAB/DAB-FM auto switch
• Seamless DAB-FM blending
• DMB (Digital Multimedia Broadcasting) support
• Announcement Switching (ASW) Select
• EPG (Electronic Program Guide)
• Soft linking
• Antenna power supply on/off switch

Bluetooth General Features

• Hands Free Profile (HPF) Ver. 1.8
• 2 phones full time connection
• Audio Streaming (A2DP)
• High Quality Audio Streaming SBC/AAC
• Serial Port Profile (SPP)
• Simple Secure Pairing (SSP)
• Phonebook Access Profile (PBAP)
• Audio/Video Remote Control Profile (AVRCP) V1.6
• Multi Profile Support
• iPhone & Android automatic pairing via USB
• KENWOOD Music Mix Support
• Private mode
• Interrupt call request
• Voice Control
• Noise Canceller
• Echo Canceller
• High-quality noise canceling microphone External microphone unit

Playable Audio File

• AAC (*.m4a) files are playable USB
• AAC (*.aac) files are playable USB
• MP3 files are playable USB
• WMA (.wma) files are playable USB
• WAV (.wav) files are playable USB
• FLAC files are playable USB

CE_Playable Video File

• MPEG1/2 files are playable USB
• MPEG4 files are playable USB
• WMV files are playable USB
• H.264 files are playable USB
• mkv files are playable USB
• JPEG files are playable USB (for wallpaper)
• BMP files are playable USB (for wallpaper)
• PNG files are playable USB (for wallpaper)

USB Features

• USB terminal rear side
• USB Type 2.0 High speed
• Drive Change
• Works with Android Auto
• Works with Apple CarPlay
• USB Mirroring for Android install "Mirroring OA for KENWOOD" from Playstore
• Repeat Play Folder/File/All
• Random play Folder / File
• Category search
• Resume play
• Time code display
• 1,5A Smartphone Quick Charge

iPod Features

• Connection via: USB / BT / Wifi
• iPod Accessory Protocol (iAP) iAP2
• Works with Apple CarPlay

Audio Features

• Max. Output Power 4 x 50W
• Pre-out 3RCA: Front/Rear/Subwoofer
• Pre-out Output Level 2.5V
• Volume Offset
• Att.(-20dB) with smooth Volume Return

Multimedia DSP Features

• DSP Chip JKTS DSP
• Position Control
• Position Preset 4 Presets
• Position Cabin Size
• Graphic Equalizer 13 bands
• G-EQ KBS
• G-EQ manual setting
• G-EQ adjustable level +9dB / -9dB
• High Pass Filter (HPF)
• Low Pass Filter (LPF)
• 3-Way X'Over
• Channel Level Control
• Space Enhancer
• Supreme
• Realizer
• Loudness
• Stage EQ
• Bass Boost
• Drive EQ
• Speaker Size & Location Control
• Listening postion control / Time Alignment
• Equalizer presets / User set 8 presets / 4 User set
• Balance & Fader Control
• Source Volulme Offset source independent

Video Features

• Audio Video Output Video: RCA, Audio: mini-jack
• Audio/Video Input Mini-jack (Rear)
• Video-In for Rear-view Camera 1 dedicated video input (RCA)
• Detection Mode Rear View Camera Reverse sensor wire
• Parking Guide Line

Connectivity

• USB interface 1x Rear
• OEM Wired Remote Control ready
• Programmable OEM Steering wheel Remote Function
• DC-Cord NEW Mitsumi to ISO
• Parking sensor (handbrake) wire
• Power Control (P.CON) wire
• Dimmer control wire
• Preout 3 x RCA (Front/rear/subwoofer)
• AV-Input 1x mini-jack (selectable: AV-in / Camera-in)
• Video Out RCA x1
• Reverse sensor wire
• Rear View Camera Input Dedicated RCA Video-in
• GPS Aerial Input HRS GT5-1S connector
• FM Antenna Input JASO connector
• DAB Aerial input SMB connector
• External microphone input 3,5mm mini-jack

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.

Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection & Shape in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
