Your Third Eye On The Road.

Install a Pioneer Dash Camera for peace of mind by protecting you from fraudulent insurance claims by being able to use the recorded footage in the event of an incident, giving you the ability to identify who is at fault quickly and easily. In some countries installing a Dash Camera can even reduce your insurance* premium.

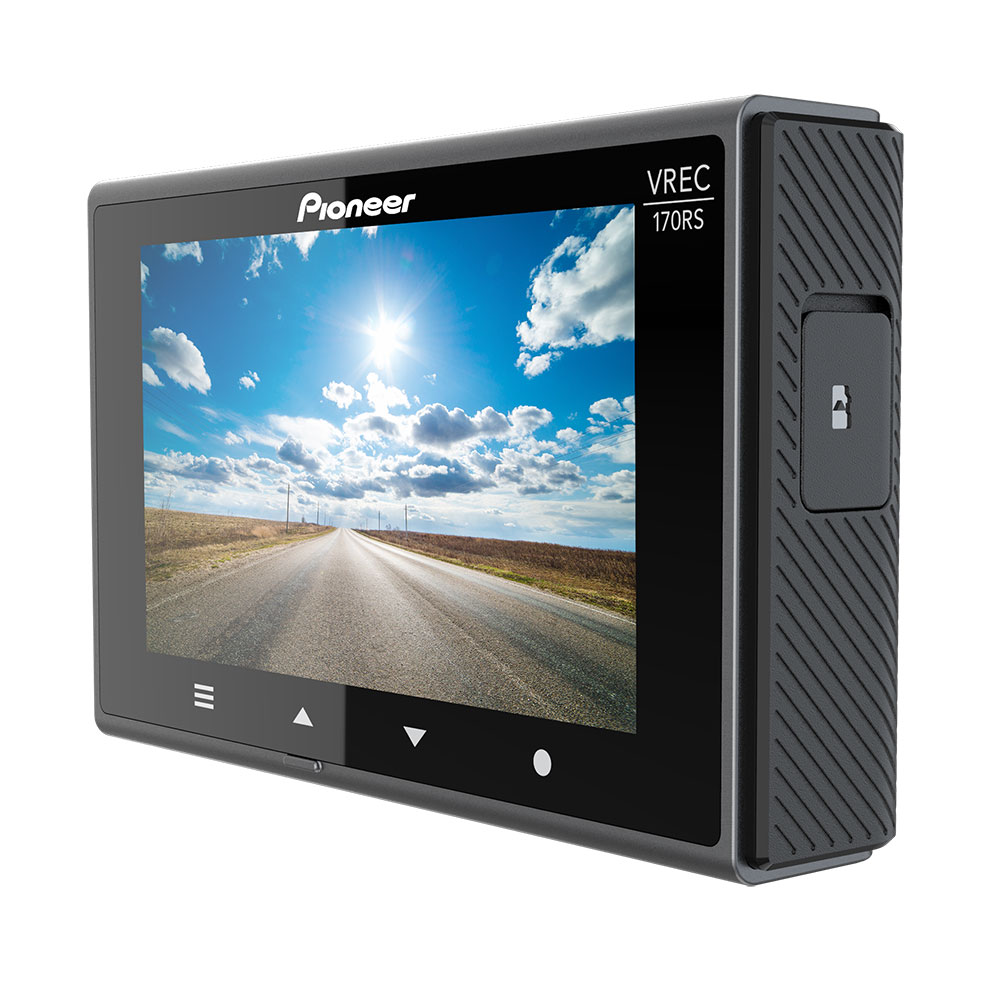

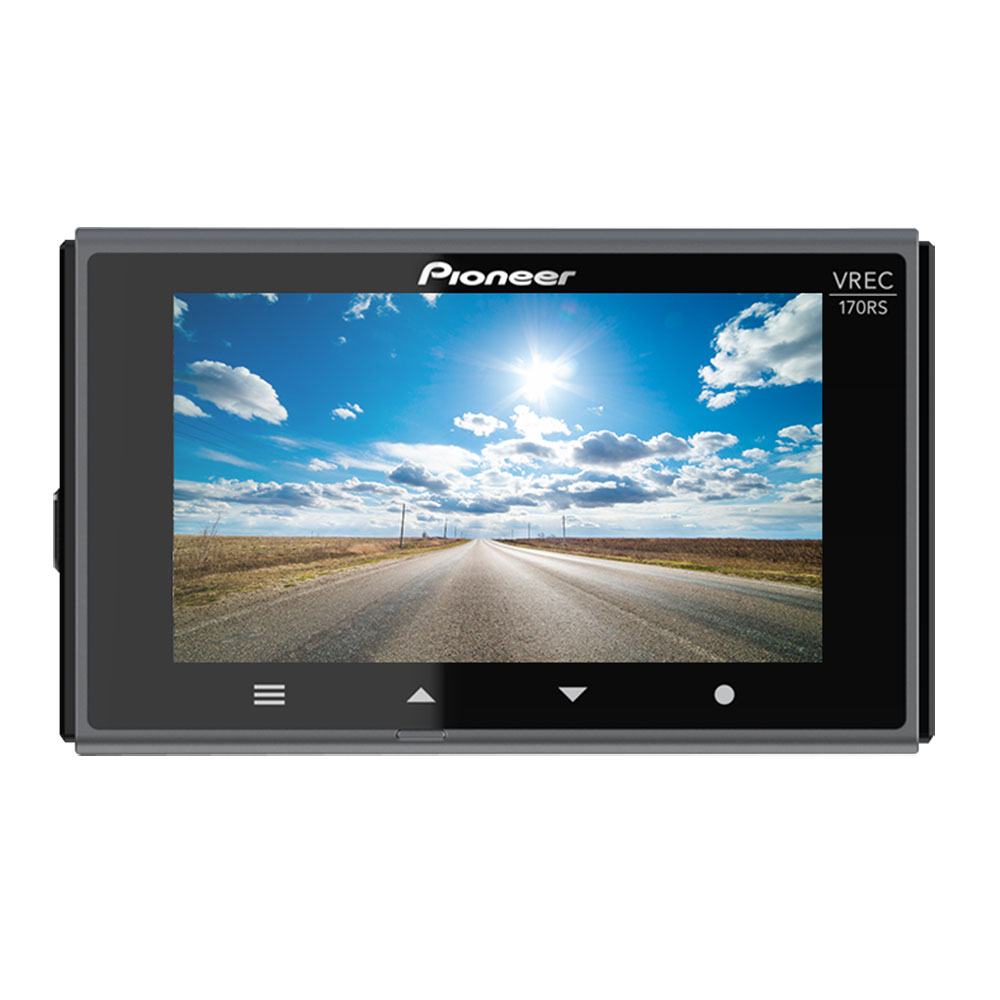

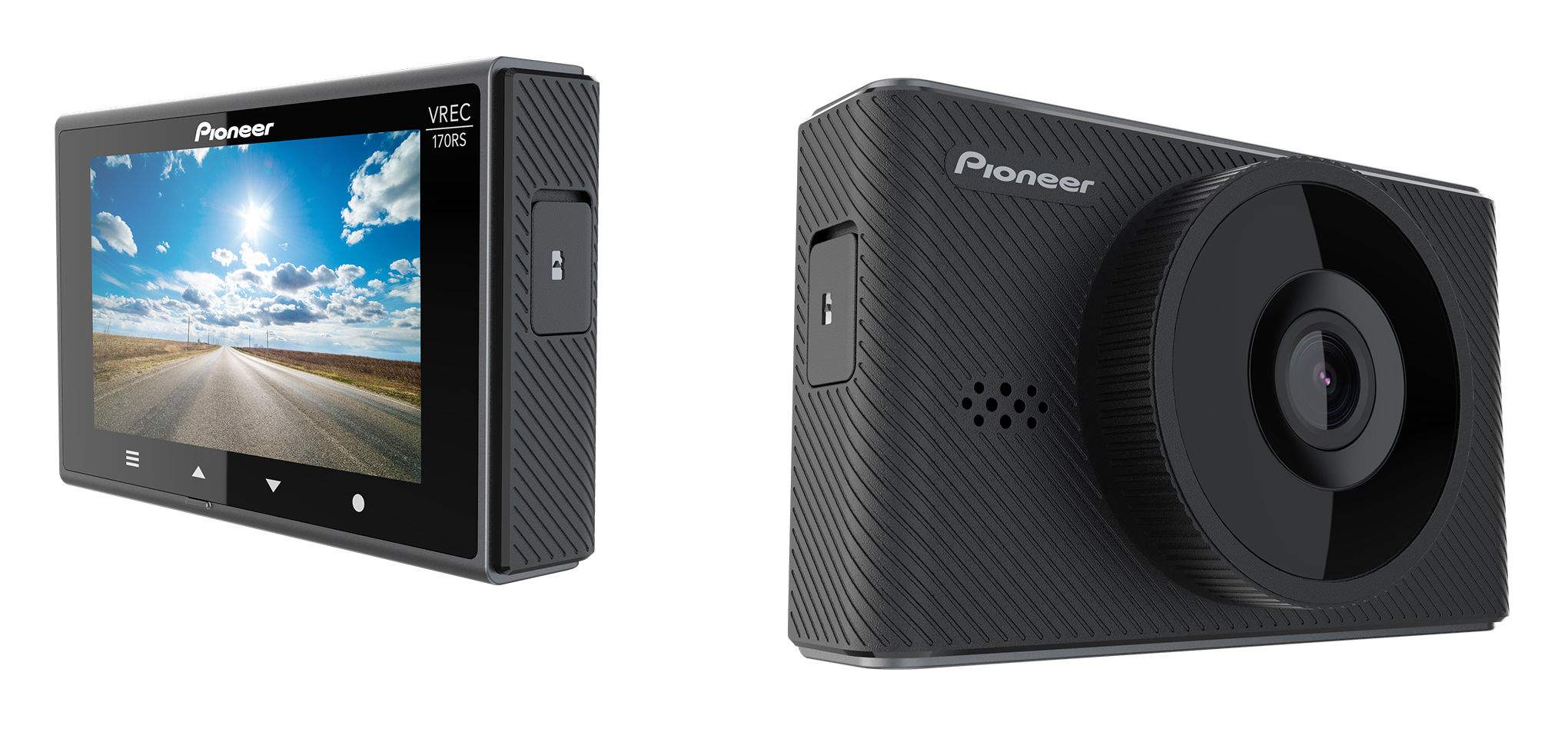

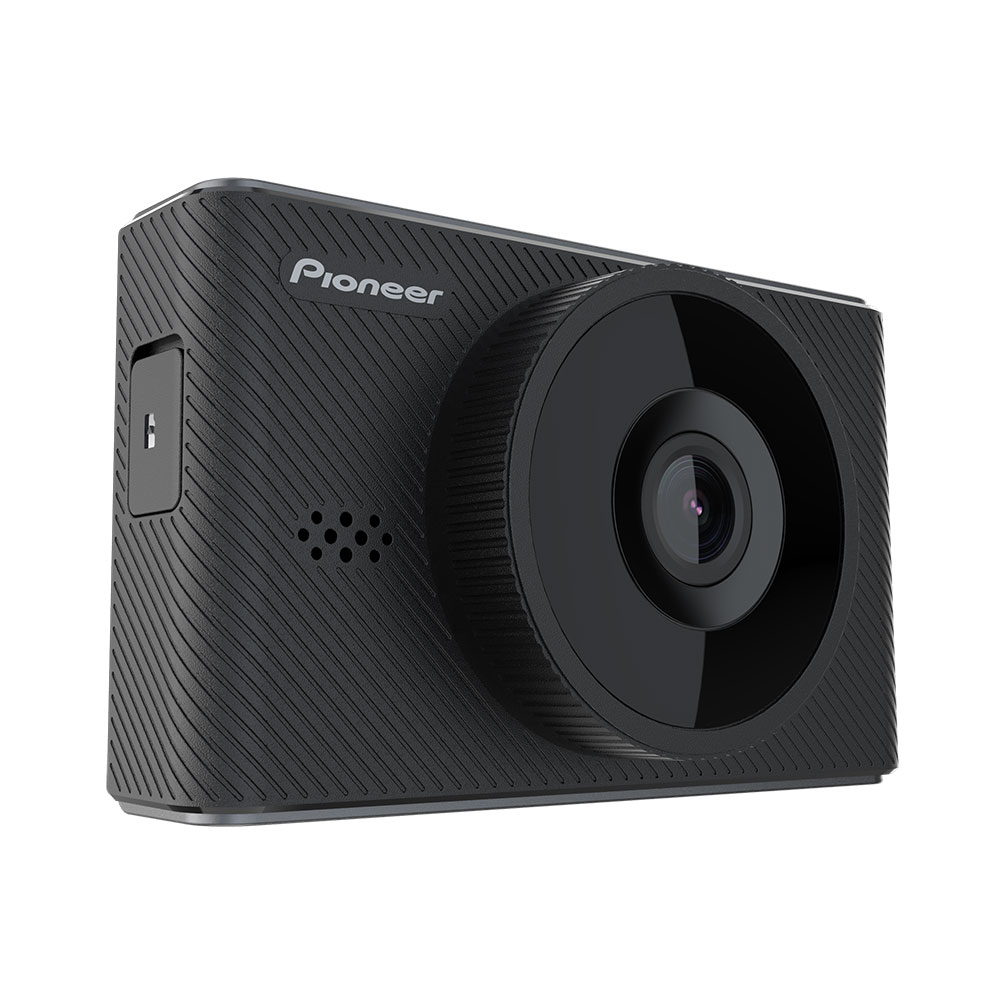

The Pioneer VREC-170RS is a 1-Channel front facing Dash Camera with a 3.0" LCD screen.

The VREC-170RS has a Wide Viewing Angle of 139°, allowing you to capture data that other cameras cannot, in FULL HD. The VREC-170RS also includes GPS and Built-in Wireless Connection, designed so you can connect your smartphone via the exclusive Pioneer "Dash Camera Connect" app. Check recorded videos or set up the Dash Camera on the screen of a compatible iPhone or Android™ smartphone.

The VREC-170RS is easy to connect thanks to the supplied cigar charger power connector and easy to install mounting cradle.

The VREC-170RS is compatible with a 16 GB to 32 GB microSD Card (Class 10) maximum. Pioneer does not guarantee microSD Card compatibility. microSD Card sold separately.

*Country Specific. Please check with your local insurance company.

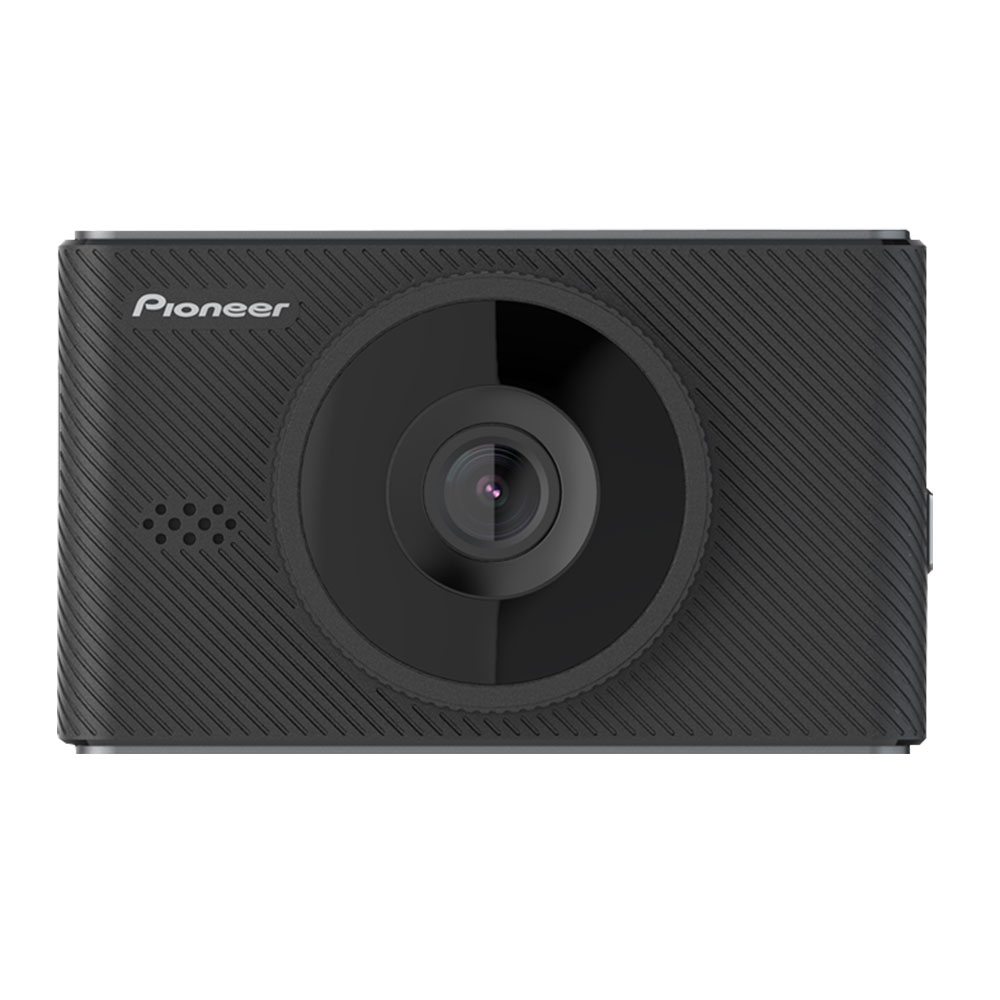

	1-Channel Dash Cam Front Dash Camera, recording the front.
	Full HD In addition to installing a CMOS sensor that realises high sensitivity, this product records in Full HD (1920 x 1080p) with about 2 million pixels of high resolution so you can record clear high-quality characters such as a license plate, in the day or night.
	139° Wide Viewing Angle Record larger amounts of information with less blind spots, such as a motorcycle passing from the left or right or a pedestrian or bicycle jumping out.
	Parking Mode Peace of mind that your vehicle is watched whilst you are away. When the vehicle is parked, after detecting movement caused by vibration it will automatically record an event for a fixed period of time utilising the internal built-in battery.
	GPS Accurately record important information such as your current position, vehicle speed, direction of travel and time.
	Wireless Connection Built-in wireless connection to connect your smartphone via an exclusive Pioneer Dash Camera app*'. Check recorded videos or set up the Dash Camera on the screen of a compatible iPhone or Android™ smartphone. * Compatible smartphone required. App availability is depending on your country.

Main Features

• 1-Channel Dash Cam
• Full HD
• 139° Wide Viewing Angle
• Parking Mode
• GPS
• Wireless Connection
• Image Quality Front: Full HD (1920 x 1080 p)
• Viewing Angle Front Camera: Horizontal 100°, Vertical 52°, Diagonal 139°
• F-Value Front Camera: F2.1
• Frame Rate (fps) Front Camera: 30 fps
• Camera Type Front
• Screen 2.0" Full Colour IPS LCD screen
• Smartphone App
• Sound Recording On / Off
• Recording Modes Normal / Event / Photo / Parking
• Continuous Recording Time 1 min / 3 min / 5 min
• Event Recording Times 31 sec
• Manual Recording Times 33 sec
• Parking Mode Recording Times 60 sec
• Parking Surveillance Recording: Built-in Battery 60 sec
• Video Recording Format MOV (H.246)
• Still Image Capture
• Still Image Format JPEG
• Date and Time Setting
• Loop Video Recording
• Speed Limit Alert
• Advanced Driver Assistance Systems (ADAS)
  • Lane Departure Warning System (LDWS)
  • Front Collision Warning System (FCWS)
• Automatically Start Recording
• MicroSD Card Capacity 16 GB to 32 GB
• MicroSD Card Compatibility microSDHC memory card class 10
• MicroSD Card Format Warning
• Battery Type Supercapacitor
• Built-in Battery Capacity 470mAh
• Power Consumption Approximately 2.3 W / 12 V
• Power Supply Voltage 12 V / 24 V DC
• Power Connection Type Cigar charger power cable
• Power Cable Length 3.5 m
• Operating Temperature -20° to +60°
• Dimensions (W x H x D) Front Camera: 89.5 mm x 54.3 mm x 29.9 mm
• Weight Front Camera: 94g (Excluding installation brackets, etc.)
• Graphic User Interface (GUI) Languages English / French / German / Spanish / Polish / Russian / Ukrainian

What's In The Box

• Front Camera
• Mounting Cradle
• Cigar Charger Power Cable
• Quick Start Guide
• Warranty Document
