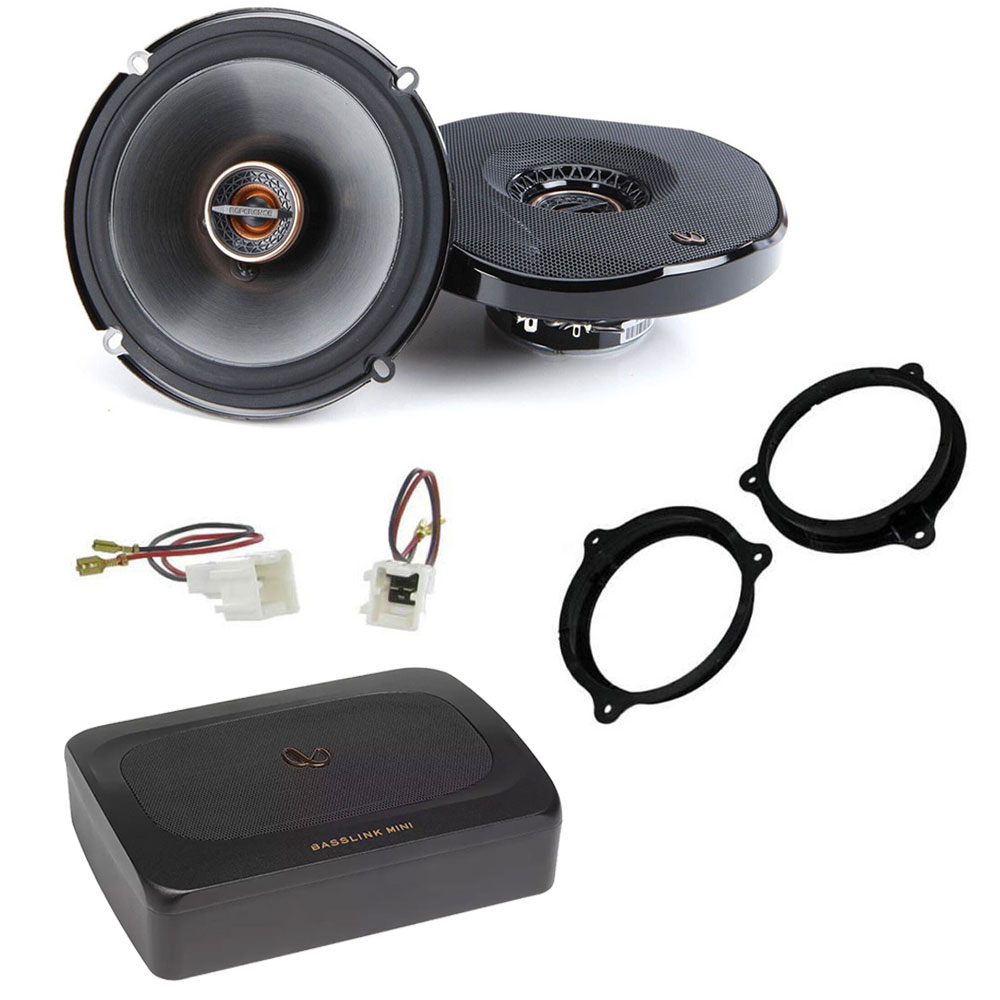

Package Includes

• Infinity REF-6532EX Reference 165 Watt 6.5" 2 Way Shallow Fit Coaxial Car Speakers
• Infinity BASSLINK MINI Compact Under Seat Powered Subwoofer System
• 165mm Front Door Speaker Adaptor
• Speaker Adaptor Plugs

Accurate, High Performance Sound

New Reference speakers are designed to deliver Infinity’s signature sound in more vehicles.They feature edge-driven textile tweeters for smooth, clear highs and the larger models offer an adjustable tweeter output level control for high-frequency optimization based on installation location or the listener’s preference. Oversized Plus One™ woofers offer more surface area for higher bass output and enhanced midrange performance. Plus our newly engineered baskets are optimized to fit most factory speaker locations. Available in a range of standard sizes – 3", 4", 5-1/4", 6-1/2", 6" x 8" and 4" x 6" coaxial, 6" x 9" 3-way, and 5-1/4", 6-1/2", and 6" x 9" component – they’re the perfect upgrade from factory speakers

Features

• Edge-driven, textile tweeters
• Adjustable tweeter output level
• Plus One™ woofer cone architecture
• Optimized Frame Size
• Competitive pricing

Features and Benefits

Edge-Driven, Textile Tweeters
The audiophile-grade tweeters used in Infinity's new Reference speakers deliver smooth, non-fatiguing sound even at high output levels.

Adjustable Tweeter Output Level
The larger Reference multielement and component systems offer a tweeter output level control to optimize system linearity to suit installation location or the listener’s preference.

Plus One™ Woofer Cone Architecture
Harman’s patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other cones in its class – the result is higher sensitivity, increased low-frequency output and accurate music reproduction.

Optimized Frame Size
Reference speakers are available in a range of standard sizes, and feature a compact design that allows them to fit just about any vehicle on the road today.

Competitive Pricing
Reference speakers provide step-up Infinity sound at mainstream prices.

Specifications

• Description: 6-1/2" (160mm) shallow-mount coaxial car speaker
• Power Handling: 55W RMS, 165W peak
• Sensitivity (@ 2.83V): 93dB
• Frequency Response: 57Hz – 21kHz
• Impedance: 3.0 ohms

What's In The Speaker Box

• 1 pair of shallow-mount coaxial speakers
• 1 pair of speaker grilles
• 8 large mounting screws
• 8 speed clips
• 8 small mounting screws
• 1 pair of adapter rings
• Foam mounting tape
• Owner’s manual

BASSLINK MINI Compact Under Seat Powered Subwoofer System

Infinity BassLink MINI delivers deep bass and takes up little space. Infinity's smallest powered subwoofer can be hid in the most compact of locations and deliver exceptional performance to any car audio system. Powered by a 100Watts Amplifier, Basslink MINI delivers accurate, tight bass you would expect from Infinity, all while running cool and drawing minimal current from your vehicles charging system.

Features

Big Bass, Small Space
Infinity BassLink MINI delivers deep bass and takes up minimal space. Its on-board 100Wrms amplifier has been performance matched to subwoofer to deliver tight, accurate bass.

Intelligent Electronic Design for Reliable and Extraordinary Performance
The BassLink MINI employs high-pass filters and limiters that deliver exceptional at-the-limits performance.

Die-Casting Aluminum Enclosure Design
The all-die-cast aluminum enclosure design not only minimizes size but also eliminates rattles to deliver clear bass from tiny space.

Bass Volume Remote Control
Bass Volume Remote control is included to let you adjust the sound from the driver's seat.

General Specifications

• Driver Complement 6"x8"(152mmx203mm) Subwoofer
• Amplifier Power 100Wrms; 200W Max
• Frequency Response 30Hz – 150Hz
• Fuse 15A
• Maximum Current Draw 13 A
• Quiescent Current Draw <600 mA
• Input Sensitivity 0.1 V – 4.0 V Low-Level Input; 0.25 V – 20V High-Level Input
• Crossover Frequency 50 Hz – 150 Hz
• Crossover Slope 12 dB/octave
• Bass Boost 0dB to + 12dB @ 50Hz
• Dimensions (L x W x H) 11-7/16" x8-5/16" x 3" (289.6mm x 209.6mm x 75.0mm)
• Weight 8.22 lbs (3.73kg)

In The Box

• 1 x Under seat subwoofer
• 4 x Screws
• 4 x Small metal plate
• 1 x Wiring harness
• 1 x Bass volume remote control (with cable)
• 1 x 15A Fuse
