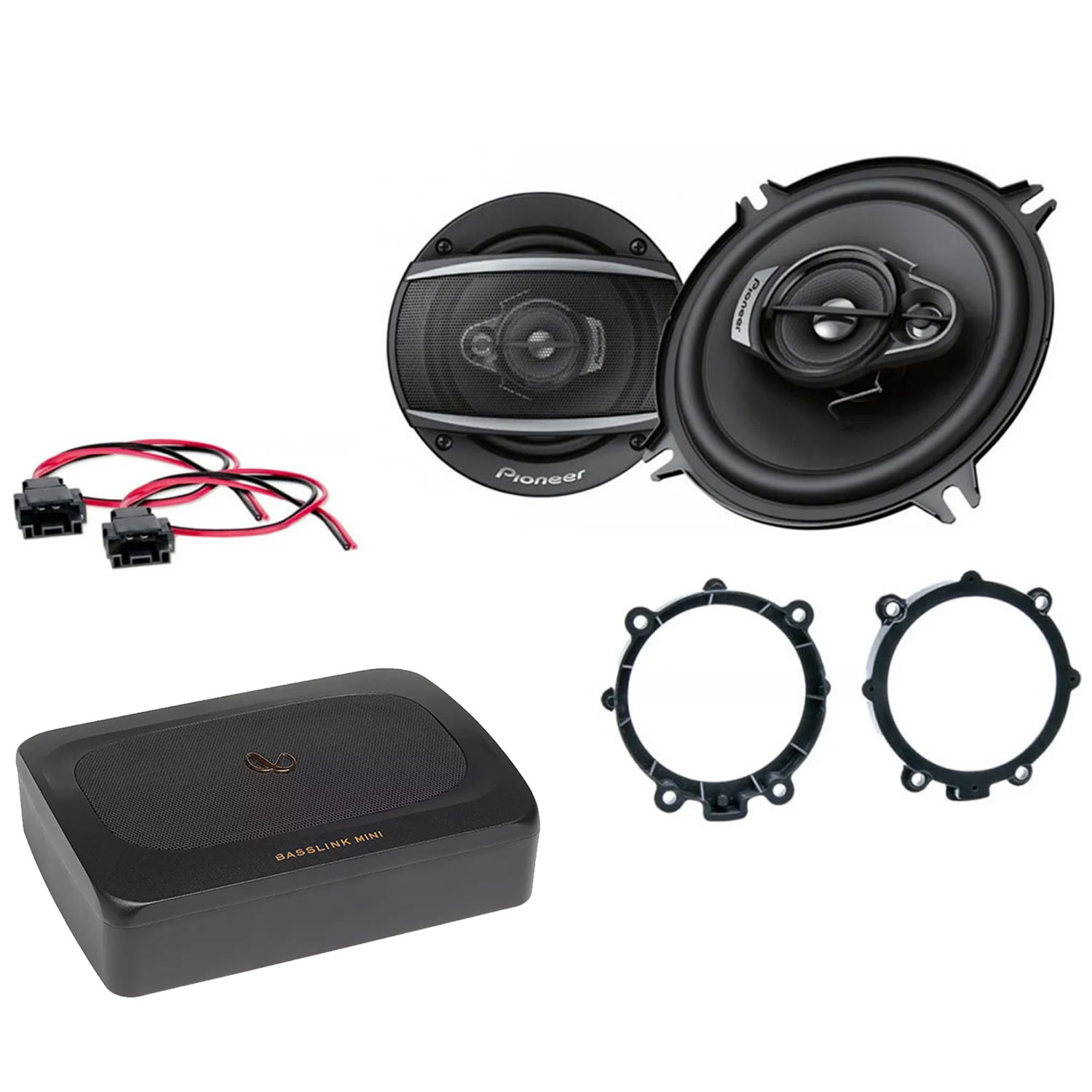

Package Includes

• Pioneer TS-A1370F 13cm 3-Way Coaxial 300W Car Speaker System
• Infinity BASSLINK MINI Compact Under Seat Powered Subwoofer System
• 130mm 13cm Speaker Adaptor
• Speaker Adaptor Plugs

It just got easier to upgrade your genuine OEM sound.

Upgrade the original sound system of your car. Our A-series line up can give you the easy to install sound upgrade solution that you have been looking for.

The A-series line up has carefully selected materials to improve bass response and high frequencies, whilst delivering Pioneer's famous Open & Smooth sound concept, all in an easy to install package. Specific models also include a custom fit adaptor for quick and easy installation.

For an even greater experience, please download Pioneer's free CarSoundFit application, to hear what your car could sound like before and after it has been upgraded with Pioneer.

Car Sound Fit App

Car sound simulator application for an improved in-car sound experience.

Open & SmoothTM

OPEN and SMOOTH delivers smooth frequency response and an expansive soundstage.

IMPPTM

enjoy outstanding midbass response with the Blue Injection Molded Polypropylene Cone.

Main Features

• Car SoundFit App
• Open & SmoothTM
• IMPPTM
• Speaker Size 13 cm
• Type 3-Way Coaxial System
• Max Power 300 Watt
• Continuous power output 50 W
• Frequency response 40 Hz – 36 KHz
• Sensitivity 87 dB
• Impedance 4 Ω
• Woofer material IMPP™ Composite Cone
• Voice Coil type Copper
• Voice Coil bobbin type GLASS IMIDE
• Tweeter Type PIEZOELECTRIC
• Cut-out Dimension: 121mm
• Mounting Depth: 52mm
• 3-way Coaxial
• Speaker Grill

BASSLINK MINI Compact Under Seat Powered Subwoofer System

Infinity BassLink MINI delivers deep bass and takes up little space. Infinity's smallest powered subwoofer can be hid in the most compact of locations and deliver exceptional performance to any car audio system. Powered by a 100Watts Amplifier, Basslink MINI delivers accurate, tight bass you would expect from Infinity, all while running cool and drawing minimal current from your vehicles charging system.

Features

Big Bass, Small Space
Infinity BassLink MINI delivers deep bass and takes up minimal space. Its on-board 100Wrms amplifier has been performance matched to subwoofer to deliver tight, accurate bass.

Intelligent Electronic Design for Reliable and Extraordinary Performance
The BassLink MINI employs high-pass filters and limiters that deliver exceptional at-the-limits performance.

Die-Casting Aluminum Enclosure Design
The all-die-cast aluminum enclosure design not only minimizes size but also eliminates rattles to deliver clear bass from tiny space.

Bass Volume Remote Control
Bass Volume Remote control is included to let you adjust the sound from the driver's seat.

General Specifications

• Driver Complement 6"x8"(152mmx203mm) Subwoofer
• Amplifier Power 100Wrms; 200W Max
• Frequency Response 30Hz – 150Hz
• Fuse 15A
• Maximum Current Draw 13 A
• Quiescent Current Draw <600 mA
• Input Sensitivity 0.1 V – 4.0 V Low-Level Input; 0.25 V – 20V High-Level Input
• Crossover Frequency 50 Hz – 150 Hz
• Crossover Slope 12 dB/octave
• Bass Boost 0dB to + 12dB @ 50Hz
• Dimensions (L x W x H) 11-7/16" x8-5/16" x 3" (289.6mm x 209.6mm x 75.0mm)
• Weight 8.22 lbs (3.73kg)

In The Box

• 1 x Under seat subwoofer
• 4 x Screws
• 4 x Small metal plate
• 1 x Wiring harness
• 1 x Bass volume remote control (with cable)
• 1 x 15A Fuse
